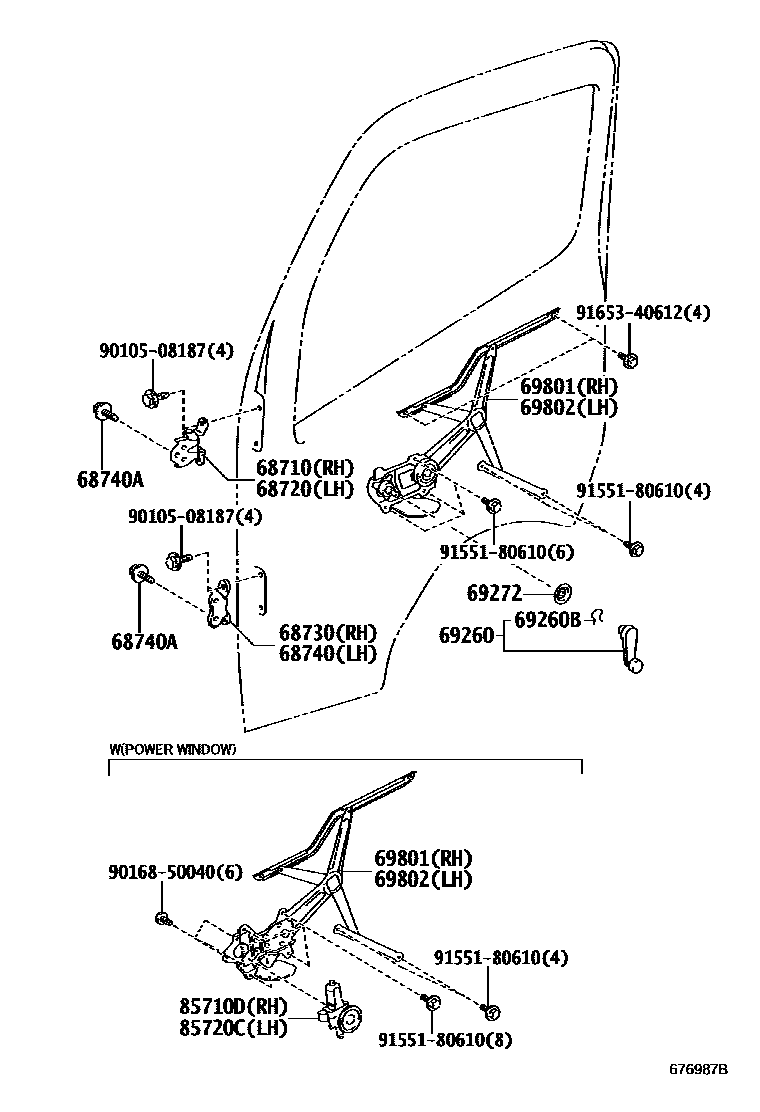

Toyota DYNA — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-26022i201107-201409

main68710-37070i201409-202005

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-37020i201409-202005

main68730-26012i201911

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-37060i201107-201505

main68730-37080i201409-202005

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-37030i201911

main68740-37050i201409-202005

68740ABOLT(FOR FRONT DOOR HINGE)

main90119-08892×10i201107-201505

main91553-80820×10i201911

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-89104-B5×2i201107-201505

GRAY,TRIM1#; POWER WINDOW-WITH(FRONT ONLY),GRAY,TRIM1#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2i201107-201505

POWER WINDOW-WITH(FRONT ONLY)

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010×2i201107-201505

POWER WINDOW-WITH(FRONT ONLY)

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-37080supersedes 69801-37070i201107-201505

POWER WINDOW-WITH(FRONT ONLY)

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-37080supersedes 69802-37070i201911

POWER WINDOW-WITH(FRONT ONLY)

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-37080i201107-201505

POWER WINDOW-WITH(FRONT ONLY)

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-37110i201107-201505

POWER WINDOW-WITH(FRONT ONLY)

9010508187

main90105-08187

9016850040

main90168-50040

9155180610

main91551-80610

9165340612

main91653-40612

16 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota DYNA

This section contains 16 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota DYNA. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, BOLT(FOR FRONT DOOR HINGE).
