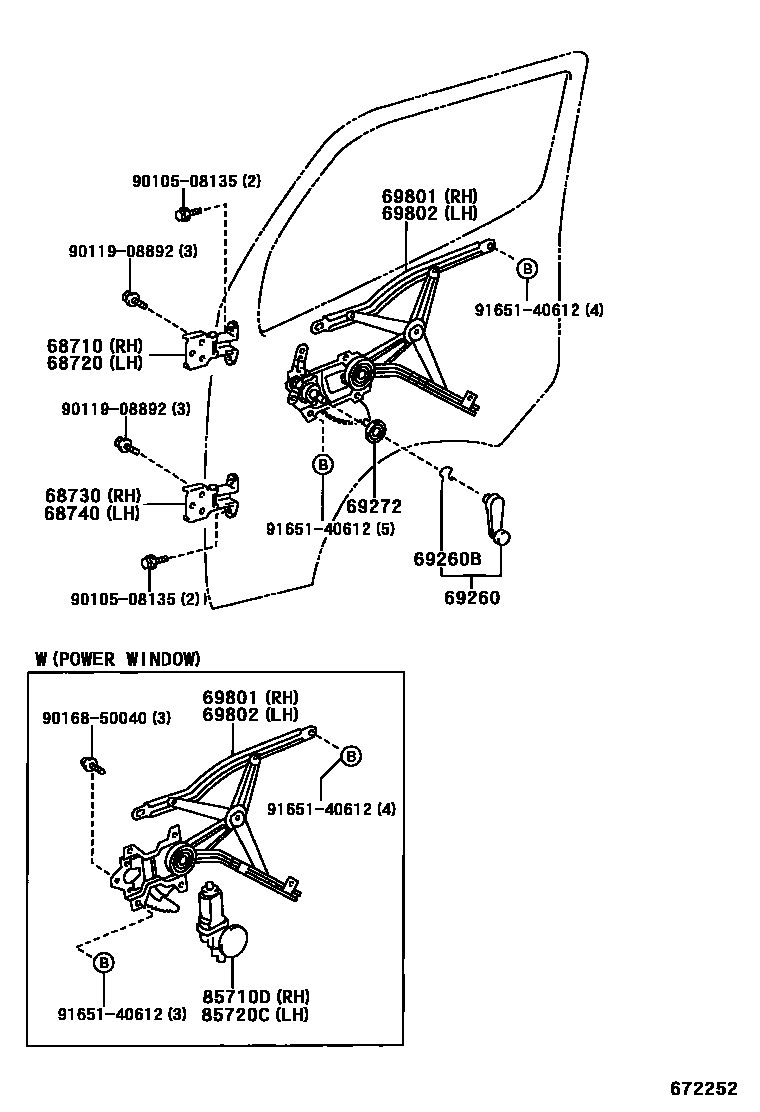

Toyota DYNA — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-37020i200010-200206

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68730-37010i200010-200206

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-37010i200010-200206

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-37020i200010-200206

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-89104-B3i200010-200206

MD.CHARCOAL,TRIM1#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274i200010-200206

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010i200010-200206

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-37020i200010-200206

main69801-37030i200010-200206

W(POWER WINDOW)

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-37020i200010-200206

main69802-37030i200010-200206

W(POWER WINDOW)

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-37040i200010-200206

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-37050i200010-200206

9010508135

main90105-08135

9011908892

main90119-08892

9016850040

main90168-50040

9165140612

main91651-40612

15 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota DYNA

This section contains 15 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota DYNA. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, HANDLE ASSY, FRONT DOOR WINDOW REGULATOR.
