Toyota DYNA — FRONT DOOR WINDOW REGULATOR & HINGE

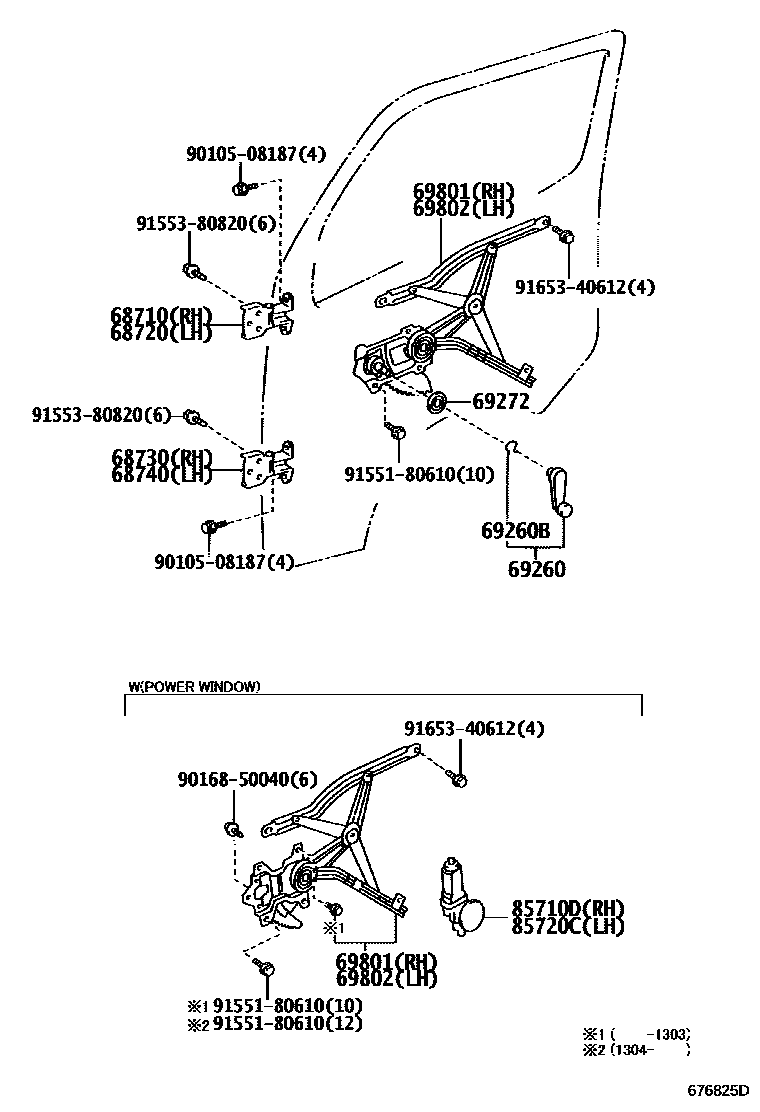

Parts diagram
68710HINGE ASSY, FRONT DOOR, UPPER RH
main68710-37020i201107-202005
68720HINGE ASSY, FRONT DOOR, UPPER LH
main68730-37010i201911
68730HINGE ASSY, FRONT DOOR, LOWER RH
main68730-37010i201107-202005
68740HINGE ASSY, FRONT DOOR, LOWER LH
main68710-37020i201911
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
main69260-89104-B5×2i201911
GRAY,TRIM1#; POWER WINDOW-WITH,GRAY,TRIM1#
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
main90520-01274×2i201911
POWER WINDOW-WITH
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
main69285-22010×2i201107-201912
POWER WINDOW-WITH
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
main69801-37062i201107-201303
POWER WINDOW-WITH
main69801-37063supersedes 69801-37052i201911
POWER WINDOW-WITH
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
main69802-37062i201107-201303
POWER WINDOW-WITH
main69802-37063supersedes 69802-37052i201911
POWER WINDOW-WITH
85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH
main85710-37080i201107-202005
POWER WINDOW-WITH
85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH
main85720-37110i201107-202005
POWER WINDOW-WITH
9010508187
main90105-08187
9016850040
main90168-50040
9155180610
main91551-80610
9155380820
main91553-80820
9165340612
main91653-40612

16 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota DYNA

This section contains 16 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota DYNA. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, HANDLE ASSY, FRONT DOOR WINDOW REGULATOR.
