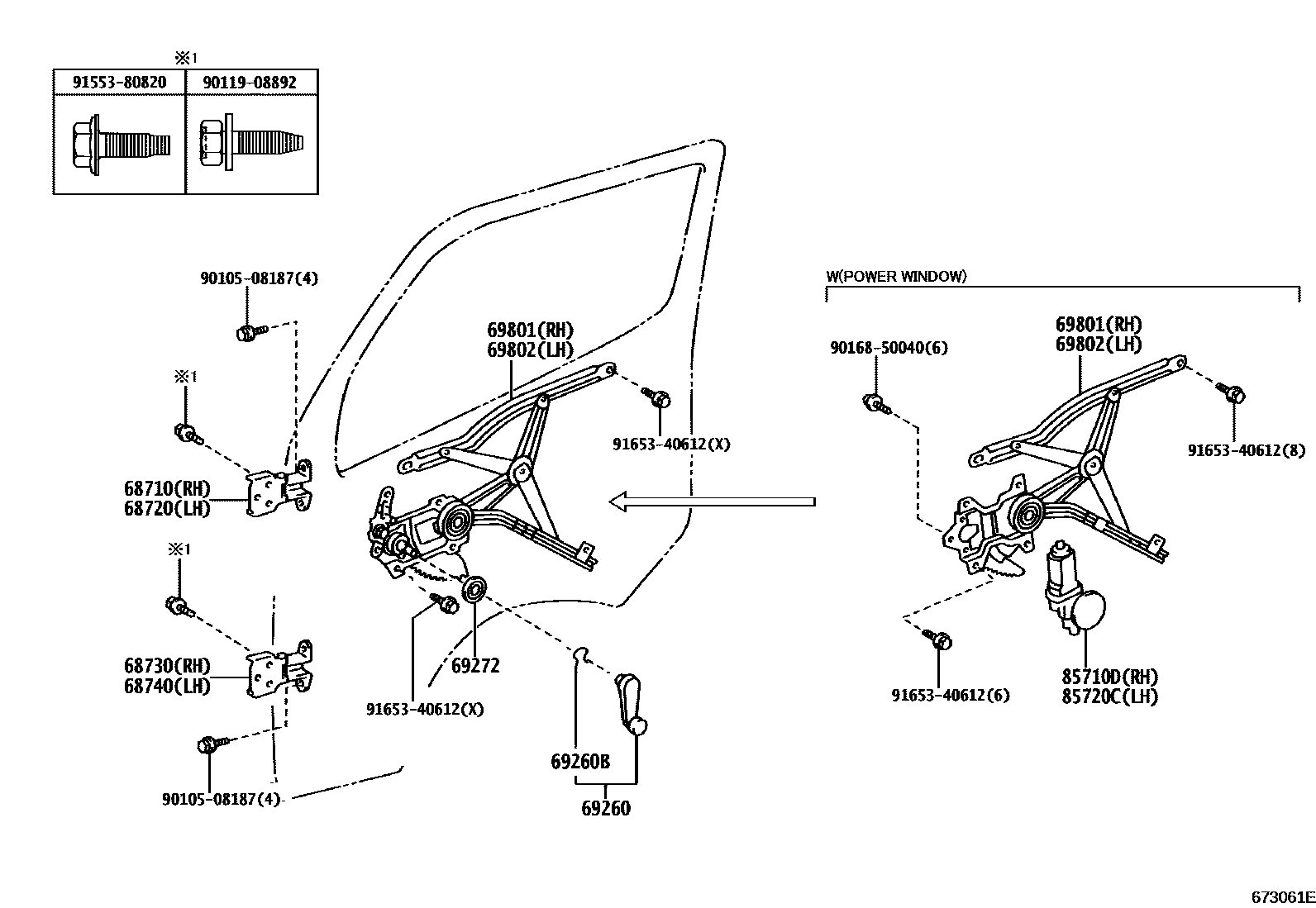

Toyota DYNA — FRONT DOOR WINDOW REGULATOR & HINGE
68710HINGE ASSY, FRONT DOOR, UPPER RH
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
MD.CHARCOAL,TRIM1#
MD.CHARCOAL,TRIM1#
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
W(POWER WINDOW)
W(POWER WINDOW)
W(POWER WINDOW)
W(POWER WINDOW)
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
W(POWER WINDOW)
W(POWER WINDOW)
W(POWER WINDOW)
W(POWER WINDOW)
85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH
85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH
9010508187
main90105-08187
9011908892
main90119-08892
9016850040
main90168-50040
9155380820
main91553-80820
9165340612
main91653-40612
16 parts on this diagram · 1 diagram in section
FRONT DOOR WINDOW REGULATOR & HINGE for Toyota DYNA
This section contains 16 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota DYNA. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, HANDLE ASSY, FRONT DOOR WINDOW REGULATOR.
