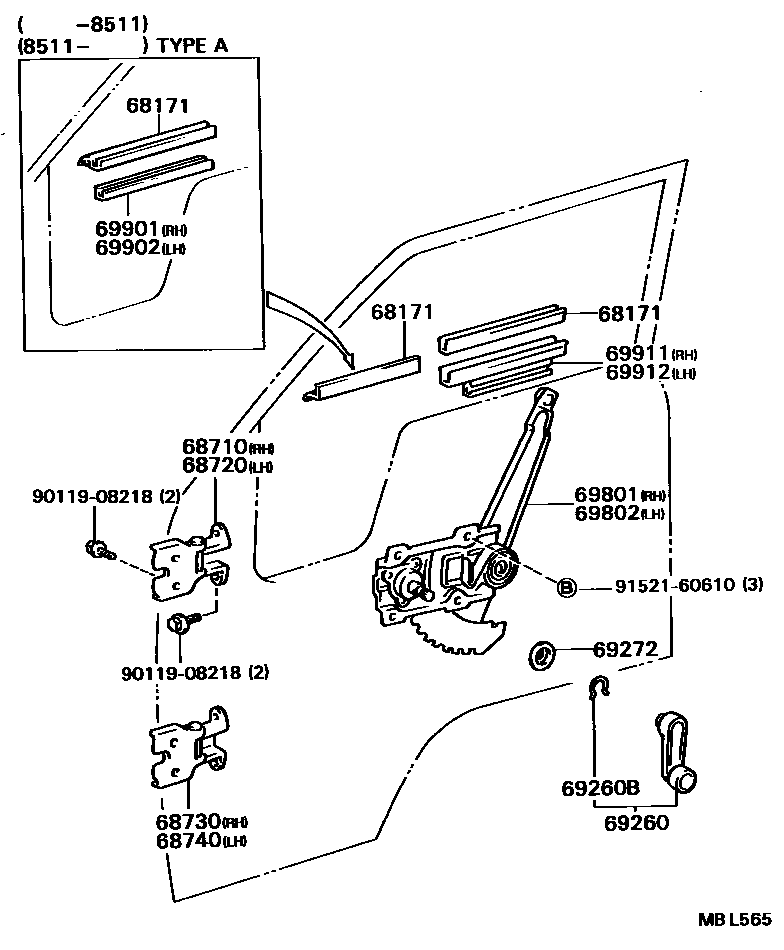

Toyota DYNA — FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68219-95400×2i198409-198708

main68221-95400×2i198409-198511

main68221-95401×2i198511-198708

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-95403i198409-198708

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68710-95403i198409-198708

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68710-95403i198409-198708

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-95403i198409-198708

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-33×2i198409-198708

SHADOW GRAY,SHADOW GRAY

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2i198409-198708

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69272-30010×2i198409-198708

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-95404i198409-198708

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-95406i198409-198708

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69912-95400i198409-198511

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69912-95400i198409-198511

69911CHANNEL, FRONT DOOR GLASS, REAR RH

main69901-95403i198409-198708

69912CHANNEL, FRONT DOOR GLASS, REAR LH

main69901-95403i198409-198708

9011908218

main90119-08218

9152160610

main91521-60610

16 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota DYNA

This section contains 16 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota DYNA. Key components include: WEATHERSTRIP, FRONT DOOR GLASS CHANNEL, HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH.
