Toyota DYNA — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-37020i202108-202503

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68730-37010i202108-202503

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-37010i202108-202503

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-37020i202108-202503

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-89104-B5i202108-202503

GRAY,TRIM1#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274i202108-202503

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010i202108-202503

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-37052i202108-202503

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-37052i202108-202503

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

9010508187

main90105-08187

9016850040

main90168-50040

9155180610

main91551-80610

9155380820

main91553-80820

9165340612

main91653-40612

16 parts on this diagram · 1 diagram in section

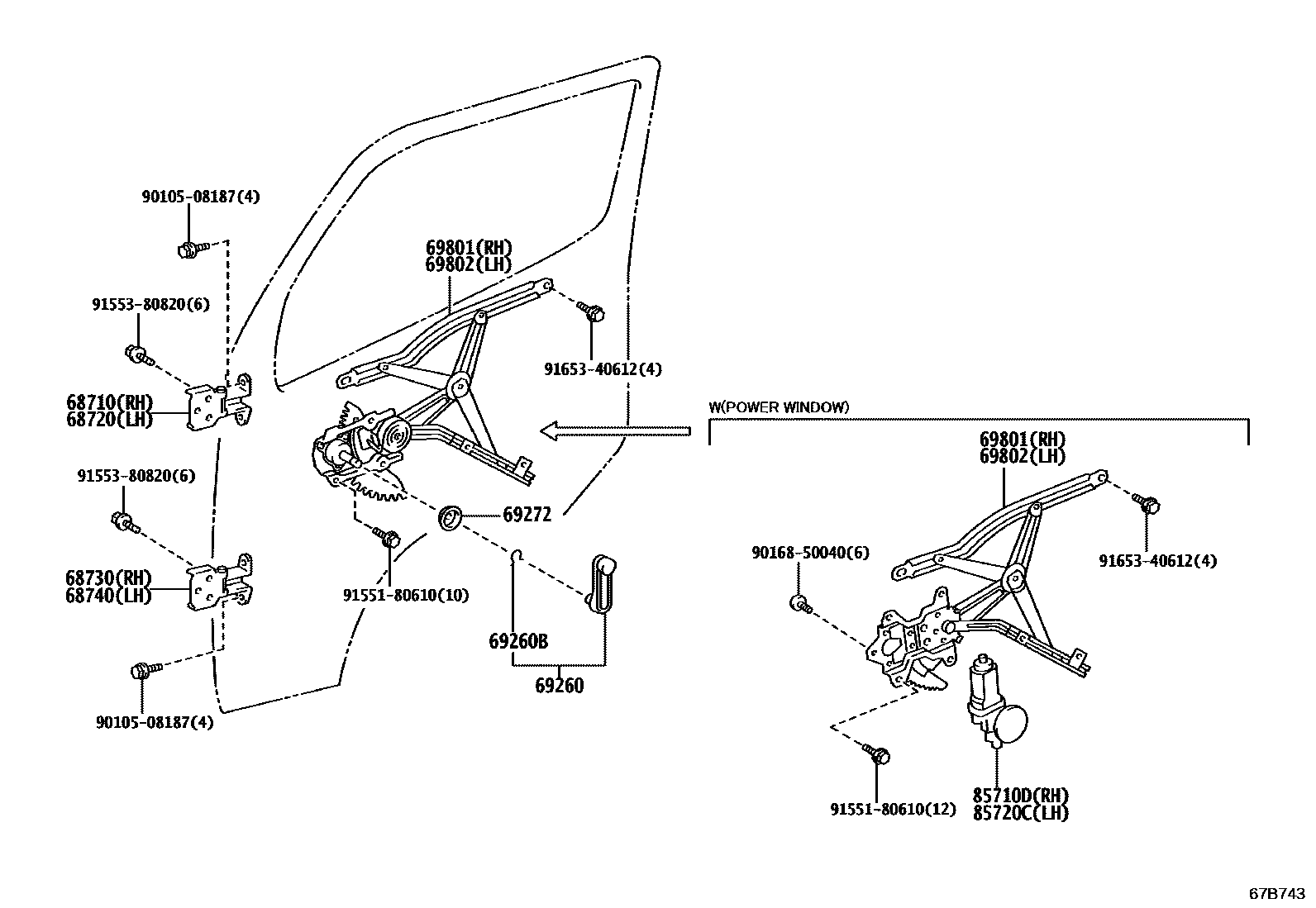

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota DYNA

This section contains 16 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota DYNA. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, HANDLE ASSY, FRONT DOOR WINDOW REGULATOR.
