Toyota DYNA — FRONT DOOR VENTILATOR WINDOW
67410BAR ASSY, FRONT DOOR WINDOW DIVISION, RH
67420BAR ASSY, FRONT DOOR WINDOW DIVISION, LH
67463WASHER, FRONT DOOR VENTILATING WIHDOW LOWER PIVOT
67464STOPPER, FRONT DOOR VENTILATING WINDOW OPENING
67467PROTECTOR,FRONT DOOR DEVISION, UPPER
67507PIVOT SUB-ASSY, VENT WINDOW, UPPER RH
67507AGASKET, VENT WINDOW PIVOT, UPPER NO.1
67507CGASKET, VENT WINDOW PIVOT, UPPER NO.2
67507DRETAINER, VENT WINDOW PIVOT, UPPER
67508PIVOT SUB-ASSY, VENT WINDOW, UPPER LH
67510VENTILATOR ASSY, FRONT DOOR, RH
67520VENTILATOR ASSY, FRONT DOOR, LH
67528PLATE, VENT WINDOW UPPER PIVOT
67541HANDLE, VENTILATING WINDOW LOCK, RH
67541ASPRING, COMPRESSION(FOR VENTILATING WINDOW LOCK HANDLE)
67541CPIN, VENTILATING WINDOW LOCK HANDLE
67542HANDLE, VENTILATING WINDOW LOCK, LH
67543BUTTON, VENTILATING WINDOW LOCK HANDLE PUSH
68121GLASS, VENT WINDOW, RH
68122GLASS, VENT WINDOW, LH
68175WEATHERSTRIP, VENT WINDOW FRAME, RH
68176WEATHERSTRIP, VENT WINDOW FRAME, LH
68181WEATHERSTRIP, VENT WINDOW, NO.1 RH
68182WEATHERSTRIP, VENT WINDOW, NO.1 LH
9011906060
main90119-06060
9020611029
main90206-11029
9050140205
main90501-40205
9322914008
main93229-14008
9323925012
main93239-25012
9353014010
main93530-14010
9411040600
main94110-40600
9461310601
main94613-10601

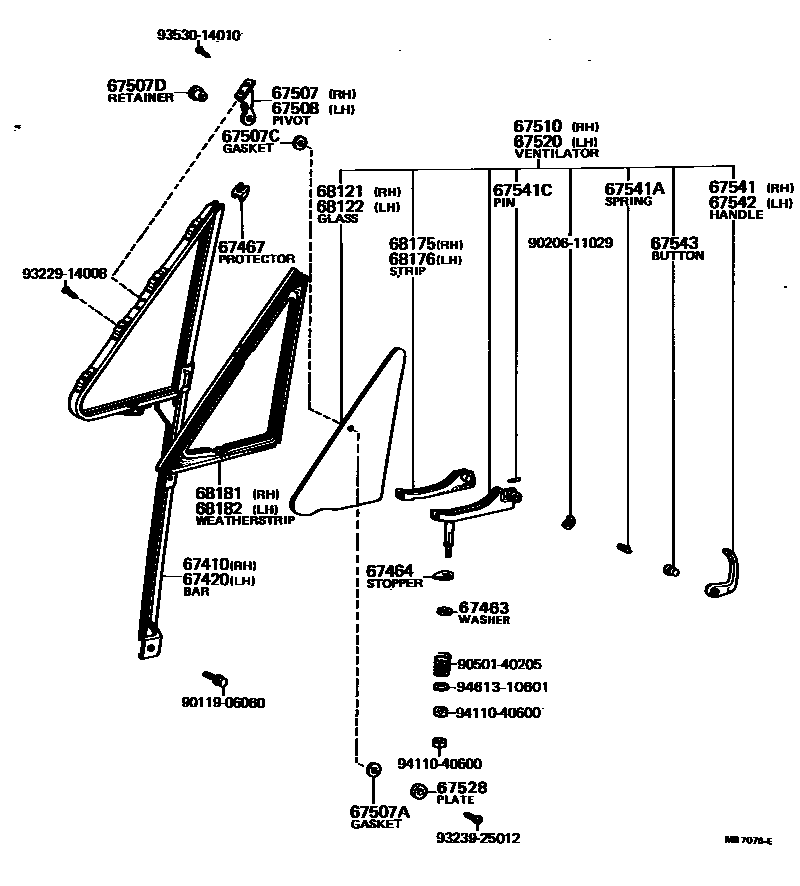

32 parts on this diagram · 1 diagram in section
FRONT DOOR VENTILATOR WINDOW for Toyota DYNA
This section contains 32 genuine Toyota parts for the FRONT DOOR VENTILATOR WINDOW system of the Toyota DYNA. Key components include: BAR ASSY, FRONT DOOR WINDOW DIVISION, RH, BAR ASSY, FRONT DOOR WINDOW DIVISION, LH, WASHER, FRONT DOOR VENTILATING WIHDOW LOWER PIVOT, STOPPER, FRONT DOOR VENTILATING WINDOW OPENING, PROTECTOR,FRONT DOOR DEVISION, UPPER.
