Toyota DYNA — FRONT DOOR PANEL & GLASS

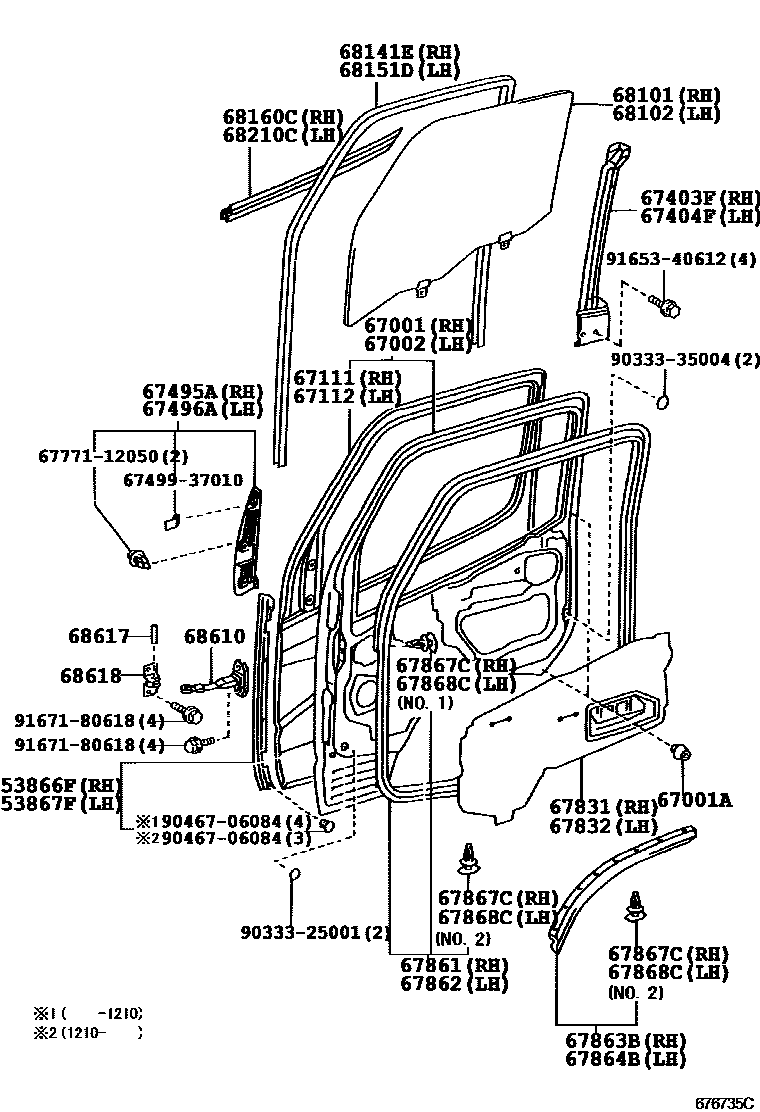

Parts diagram

53866FSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-37040i200110-200608

main53866-37041i201101-201208

53867FSEAL, FR FENDER TO COWL SIDE, LH

main53867-37030i200110-200608

main53867-37031i201101-201208

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-37061i200212-200610

main67001-37080i200110-200210

main67001-37081i200210-200610

main67001-37110i200110-200202

main67001-37111i200202-200210

main67001-37112i200210-200608

main67001-37201i200212-200610

main67001-37240i200610-201106

main67001-37270i200701-200811

main67001-37290i200610-201101

main67001-37291i201102-201106

main67001-37310i200708-201208

main67001-37320i200610-201101

LEBANON SPEC

main67001-37321i201102-201106

LEBANON SPEC

67001ACUSHION, FRONT DOOR PANEL

main90541-09031×4i200110-200610

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-37071i200212-200802

main67002-37090i200110-200210

main67002-37091i200210-200610

main67002-37130i200110-200210

main67002-37131i200210-200610

main67002-37201i200212-200610

main67002-37260i200708-201208

main67002-37280i200610-201106

main67002-37300i200701-200811

main67002-37320i200610-201101

main67002-37321i201102-201106

main67002-37340i200610-201101

LEBANON SPEC

main67002-37341i201102-201106

LEBANON SPEC

67111PANEL, FRONT DOOR, OUTER RH

main67111-37061i200212-200610

main67111-37062i200911-201106

main67111-37070i200110-200210

main67111-37071i200210-200610

main67111-37072i200911-201106

LEBANON SPEC

main67111-37100i200110-200210

main67111-37101i200210-200608

main67111-37102i200911-201208

main67111-37130i200701-200811

main67111-37171i200610-200910

main67111-37172i200911-201106

67112PANEL, FRONT DOOR, OUTER LH

main67112-37071i200212-200610

main67112-37072i200911-201106

main67112-37080i200110-200210

main67112-37081i200811-200901

main67112-37082i200911-201106

LEBANON SPEC

main67112-37120i200110-200210

main67112-37121i200210-200608

main67112-37122i200911-201208

main67112-37191i200212-200610

main67112-37192i200911-201106

main67112-37220i200701-200811

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-37020i200110-200802

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-37020i200110-200801

67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-37010i200110-200608

67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-37010i200110-200608

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-37010i200708-201208

main67831-37020i200304-200403

W/O(SPEAKER)

main67831-37040i200404-200801

main67831-37050i200404-200801

W/O(SPEAKER)

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-37010i200110-200708

main67832-37020i200304-200403

W/O(SPEAKER)

main67832-37050i200404-200801

main67832-37060i200404-200801

W/O(SPEAKER)

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-37020i200110-200403

main67861-37021i200403-200609

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-37020i200110-200403

main67862-37021i200403-200608

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-37010i200110-200701

main67863-37011i200909-201208

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-37010i200110-200708

main67864-37011i200909-201208

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×35i200110-200608

NO.2

main67867-89103i200110-200608

NO.1

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×35i200110-200608

NO.2

main67867-89103i200110-200708

NO.1

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-37130i200110-200610

*TT,T=3.5,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-37140i200110-200608

*TT,T=3.5,GREEN

68141ERUN, FRONT DOOR GLASS, RH

main68141-37010i200110-200112

main68141-37030i200112-200608

68151DRUN, FRONT DOOR GLASS, LH

main68151-37010i200110-200112

main68151-37030i200112-200608

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68161-37010i200110-200309

main68161-37011i200309-200608

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68162-37010i200110-200309

main68162-37011i200309-200608

68610CHECK ASSY, FRONT DOOR

main68610-37030×2i200110-200802

68617PIN, FRONT DOOR CHECK

main68617-20011×2i201108-201208

main68617-90K00×2i200110-200608

68618BRACKET, FRONT DOOR CHECK ARM, RH

main68618-37020×2i200110-200610

6749937010RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-37010

6777112050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12050

9033325001

main90333-25001

9033335004

main90333-35004

9046706084

main90467-06084

9165340612

main91653-40612

9167180618

main91671-80618

35 parts on this diagram · 3 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota DYNA

This section contains 47 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota DYNA. Key components include: SEAL, FRONT FENDER TO COWL SIDE, RH, SEAL, FR FENDER TO COWL SIDE, LH, PANEL SUB-ASSY, FRONT DOOR, RH, CUSHION, FRONT DOOR PANEL, PANEL SUB-ASSY, FRONT DOOR, LH.
