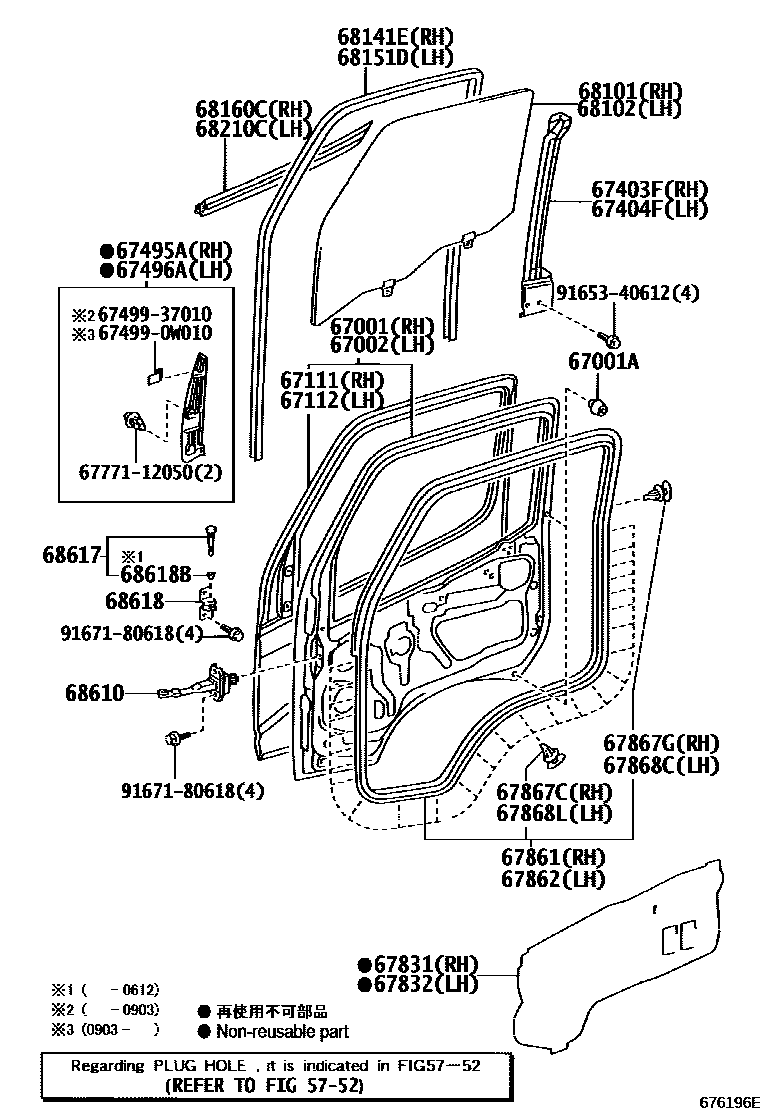

Toyota DYNA — FRONT DOOR PANEL & GLASS
5752HOLE PLUG
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
W/O(SPEAKER)
W/O(SPEAKER)
67832COVER, FRONT DOOR SERVICE HOLE, LH
W/O(SPEAKER)
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
main67867-12150×26iBU303,343,WU300,340,XZU300,320,330..(48T,55T,65T)..(GCC,GEN,TAIW); XZU330,340..80T200212-200610
NO.2
NO.1
67867GRETAINER, DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67868LRETAINER, DOOR WEATHERSTRIP, LH
NO.2
NO.1
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TEM,T=3.5,GREEN
*TEM,T=3.2,GREEN
*TT,T=3.5,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TEM,T=3.5,GREEN
*TT,T=3.5,GREEN
68141ERUN, FRONT DOOR GLASS, RH
68151DRUN, FRONT DOOR GLASS, LH
68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68610CHECK ASSY, FRONT DOOR
68617PIN, FRONT DOOR CHECK
68618BRACKET, FRONT DOOR CHECK ARM, RH
68618BRETAINER, DOOR CHECK PIN
674990W010RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
main67499-0W010
6749937010RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
main67499-37010
6777112050WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12050
9165340612
main91653-40612
9167180618
main91671-80618
33 parts on this diagram · 6 diagrams in section
FRONT DOOR PANEL & GLASS for Toyota DYNA
This section contains 54 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota DYNA. Key components include: SEAL, FRONT FENDER TO COWL SIDE, RH, SEAL, FR FENDER TO COWL SIDE, LH, HOLE PLUG, PANEL SUB-ASSY, FRONT DOOR, RH, CUSHION, FRONT DOOR PANEL.
