Toyota DYNA — FRONT DOOR PANEL & GLASS

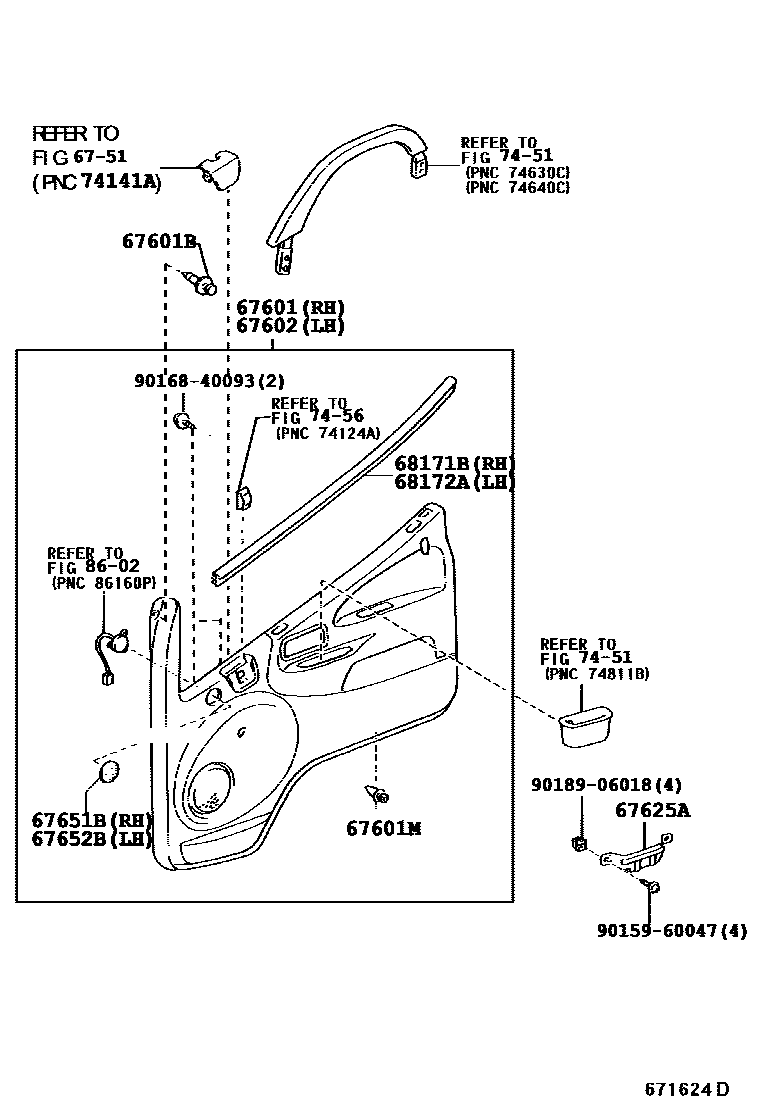

Parts diagram
6751FRONT DOOR PANEL & GLASS
→ Go to FIG 67-51
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-37080-B0i200010-200206
MD.CHACORL,TRIM1#
main67610-37090-B0i199907-200212
W(POWER WINDOW),MD.CHARCOAL,TRIM1#
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
main90467-07071-22×2i199908-200206
BLACK,058 ,8P0
main90467-07071-B6×2i199907-200212
MD.CHARCOAL,TRIM1#
67601MRETAINER, DOOR TRIM, NO.2
main67771-12050i199907-200212
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-37130-B0i200010-200206
MD.CHARCORL,TRIM1#
main67620-37140-B0i199907-200212
W(POWER WINDOW),MD.CHARCOAL,TRIM1#
67625ABRACKET, FRONT DOOR TRIM, NO.1
main67625-26010×2i199907-200212
67651BGRILLE, SPEAKER DOOR, RH
main67651-37040-B0i200010-200206
MD.CHARCOAL,TRIM1#
67652BGRILLE, SPEAKER DOOR, LH
main67651-37040-B0i200010-200206
MD.CHARCOAL,TRIM1#
68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH
main68171-37010i199907-200212
68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH
main68172-37010i199907-200212
7451ARMREST & VISOR
→ Go to FIG 74-51
7456ASH RECEPTACLE
→ Go to FIG 74-56
8602SPEAKER
→ Go to FIG 86-02
9015960047
main90159-60047
9016840093
main90168-40093
9018906018
main90189-06018

16 parts on this diagram · 3 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota DYNA

This section contains 53 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota DYNA. Key components include: SEAL, FRONT FENDER TO COWL SIDE, RH, SEAL, FR FENDER TO COWL SIDE, LH, PANEL SUB-ASSY, FRONT DOOR, RH, CUSHION, FRONT DOOR PANEL, PANEL SUB-ASSY, FRONT DOOR, LH.
