Toyota DYNA — FRONT DOOR PANEL & GLASS

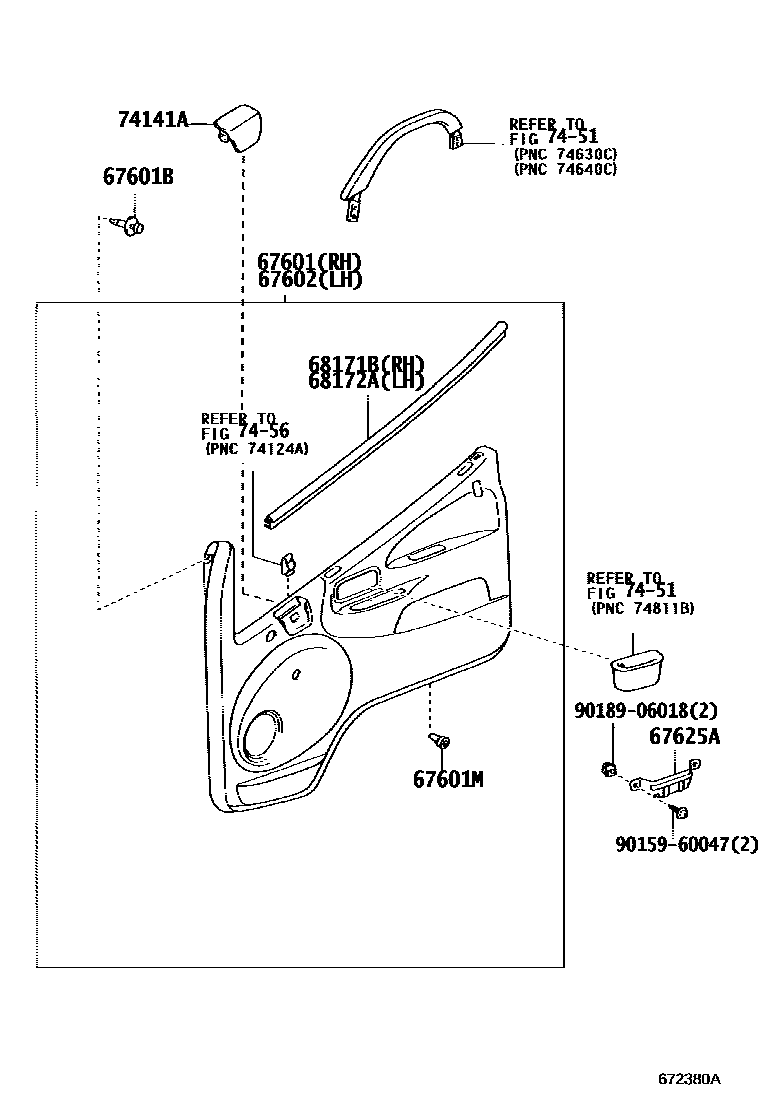

Parts diagram
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-25080-B0i200107-200408
W/O(POWER WINDOW),MD.CHARCOAL,TRIM1#
main67610-25090-B0i200107-200409
MD.CHARCOAL,TRIM1#
main67610-37080-B6i201610-202111
W/O(POWER WINDOW),GRAY,TRIM1#
main67610-37090-B6i201610
GRAY,TRIM1#
main67610-37120-B0i200409-201505
W/O(POWER WINDOW),MD.CHARCOAL,TRIM1#
main67610-37120-B2i201505
W/O(POWER WINDOW),GRAY,TRIM1#
main67610-37130-B0i200409-201505
MD.CHARCOAL,TRIM1#
main67610-37130-B2i201505-201610
GRAY,TRIM1#
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
main90467-07071-B6×2i200107-201505
MD.CHARCOAL,TRIM1#
main90467-07071-P4×2i201505-202111
GRAY,TRIM1#
67601MRETAINER, DOOR TRIM, NO.2
main67771-12050×16i200107-200308
main90467-09206×16i201102-202111
main90467-10188×16i200308-201101
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-25080-B0i200107-200408
W/O(POWER WINDOW),MD.CHARCOAL,TRIM1#
main67620-25090-B0i200107-200409
MD.CHARCOAL,TRIM1#
main67620-37130-B6i201610
W/O(POWER WINDOW),GRAY,TRIM1#
main67620-37170i200607-200708
main67620-37170-B0i200708-201505
MD. CHARCOAL,TRIM1#; W/O(POWER WINDOW),MD. CHARCOAL,TRIM1#
main67620-37170-B5i201505-201610
W/O(POWER WINDOW),GRAY,TRIM1#
main67620-37180-B4i200409-201505
MD.CHARCOAL,TRIM1#
main67620-37180-B5i201505
GRAY,TRIM1#
67625ABRACKET, FRONT DOOR TRIM, NO.1
main67625-26010×2i200107-202111
68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH
main68171-37010i200107-200309
main68171-37011i200403-202111
68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH
main68172-37010i200107-200309
main68172-37011i200403-202111
74141AGARNISH, FRONT ASH RECEPTACLE, NO.1
main74141-25010-B0×2i201505-201610
MD.CHARCOAL,TRIM12
main74141-25010-B1i201610-202111
GRAY,TRIM1#
7451ARMREST & VISOR
→ Go to FIG 74-51
7456ASH RECEPTACLE
→ Go to FIG 74-56
9015960047
main90159-60047
9018906018
main90189-06018

12 parts on this diagram · 3 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota DYNA

This section contains 48 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota DYNA. Key components include: SEAL, FRONT FENDER TO COWL SIDE, RH, SEAL, FR FENDER TO COWL SIDE, LH, PANEL SUB-ASSY, FRONT DOOR, RH, CUSHION, FRONT DOOR PANEL, PANEL SUB-ASSY, FRONT DOOR, LH.
