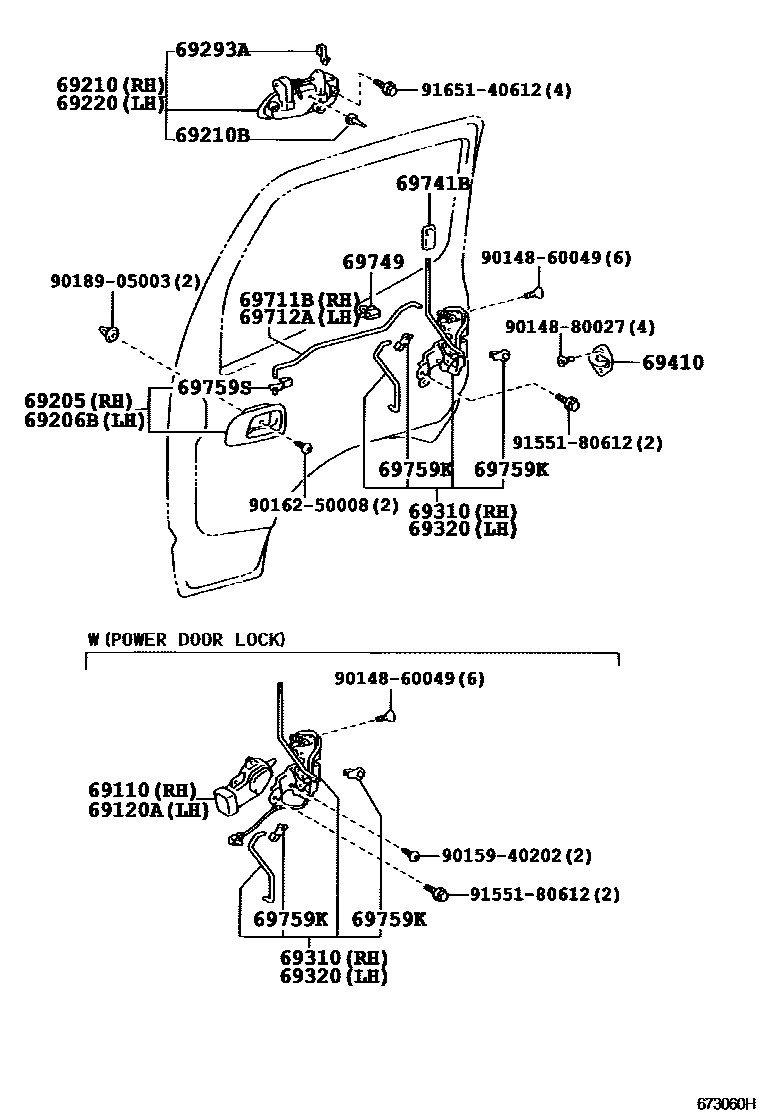

Toyota DYNA — FRONT DOOR LOCK & HANDLE

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-37030iXZU415,425,435200110-200708

main69110-37060iBU410,420200308-200701

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-37030iXZU404,414,424..RHD..GEN200110-200306

main69120-37060iXZU404,414,424,434..ARL200212-200610

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-37010-B0iXZU412,422..6F;WU410,420,XZU420,430..SA200110-200802

MD.CHARCOAL,TRIM1#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-37010-B0iXZU414,424,434..EUR200110-200608

MD.CHARCOAL,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-37020iXZU414,424,434..EUR200110-200608

NO PAINT REQ.

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04015×4iXZU412,422..6F;WU410,420,XZU420,430..SA200110-200802

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-37020iXZU414,424,434..EUR200110-200608

NO PAINT REQ.

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iXZU414,424,434..EUR200110-200608

RH

main69293-12060iXZU412,422..6F;WU410,420,XZU420,430..SA200110-200802

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-37070iXZU414,424,434..EUR200110-200608

main69310-37080iXZU404,414,424,434..ARL200501-200610

W(POWER DOOR LOCK = DRIVER & PASSENGER)

main69310-37090iXZU404,414,424,434..ARL200110-200501

W(POWER DOOR LOCK = PASSENGER ONLY)

69320LOCK ASSY, FRONT DOOR, LH

main69320-37060iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433200610-201106

main69320-37080iWU412..GCC..CBU;WU412..(75T,85T)..IV3;WU410,422,XZU415,417,419,425,427,429,435,439..(EUR,GCC,TAIW)..(DCRTJ,DCRTK,DSL)200610-201208

W(POWER DOOR LOCK = PASSENGER ONLY)

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110×2iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-200610

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-37010iXZU414,424,434..EUR200110-200608

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-37010iXZU414,424,434..EUR200110-200608

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-12040-B3×2iXZU414,424,434..EUR200110-200608

MD.CHARCOAL,TRIM1#

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12070×2iXZU414,424,434..EUR200110-200608

69759KSNAP, DOOR LOCK CONTROL LINK

main69759-20040iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200610-201208

YELLOW

main69759-20050iXZU412,422..6F;WU410,420,XZU420,430..SA200110-200802

BROWN

main69759-24010iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200610-201208

NATURAL

main69759-24020iBU410,420200110-200701

BLUE

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-22040iXZU414,424,434..EUR200110-200608

LH

main69759-22050iXZU412,422..6F;WU410,420,XZU420,430..SA200110-200802

RH

9014860049

main90148-60049

9014880027

main90148-80027

9015940202

main90159-40202

9016250008

main90162-50008

9018905003

main90189-05003

9155180612

main91551-80612

9165140612

main91651-40612

24 parts on this diagram · 1 diagram in section
