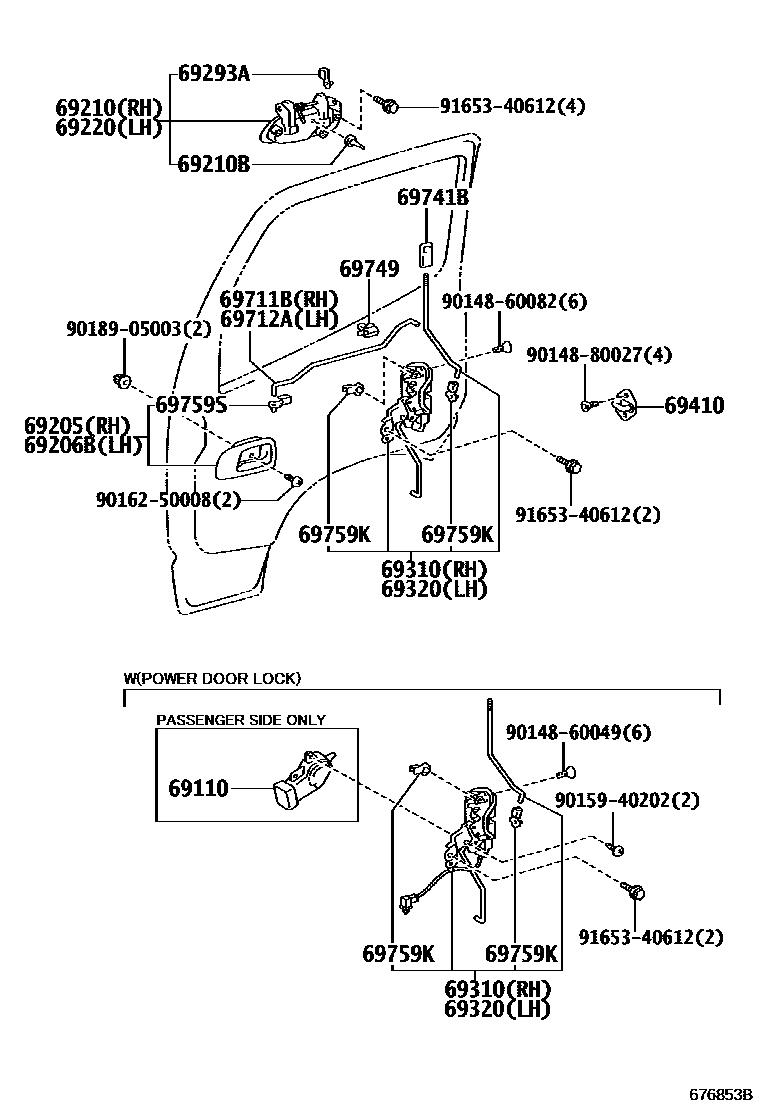

Toyota DYNA — FRONT DOOR LOCK & HANDLE

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-37060iXZU600..GEN201911

POWER WINDOW-WITH

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-37010-B1iXZU600..GCC;WU600,650,XZU650201107-202005

GRAY,TRIM1#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-37010-B1iXZU600..GCC;WU600,650,XZU650201107-202005

GRAY,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-37020iXZU600..GCC;WU600,650,XZU650201107-202005

NO PAINT REQ.

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04015×4iXZU600..GCC;WU600,650,XZU650201107-202005

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-37020iXZU600..GEN201911

NO PAINT REQ.

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iXZU600..GCC;WU600,650,XZU650201107-202005

RH

main69293-12060iXZU600..GCC;WU600,650,XZU650201107-202005

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-37070iXZU600..GEN201911

69320LOCK ASSY, FRONT DOOR, LH

main69320-37080supersedes 69320-37060iXZU600..GCC;WU600,650,XZU650201107-202005

POWER WINDOW-WITH

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110×2iXZU600..GCC;WU600,650,XZU650201107-202005

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-37010iXZU600..GEN201911

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-37010iXZU600..GCC;WU600,650,XZU650201107-202005

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-12040-C0×2iXZU600..GCC;WU600,650,XZU650201107-202005

BLACK,TRIM1#

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12070×2iXZU600..GCC;WU600,650,XZU650201107-202005

69759KSNAP, DOOR LOCK CONTROL LINK

main69759-20040iXZU600..GEN201911

YELLOW

main69759-20050iXZU600..GCC;WU600,650,XZU650201107-202005

BROWN

main69759-24010iXZU600..GCC;WU600,650,XZU650201107-202005

NATURAL

main69759-24020iXZU600..GEN201911

BLUE

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-22040iXZU600..GCC;WU600,650,XZU650201107-202005

LH

main69759-22050iXZU600..GEN201911

RH

9014860049

main90148-60049

9014860082

main90148-60082

9014880027

main90148-80027

9015940202

main90159-40202

9016250008

main90162-50008

9018905003

main90189-05003

9165340612

main91653-40612

23 parts on this diagram · 1 diagram in section
