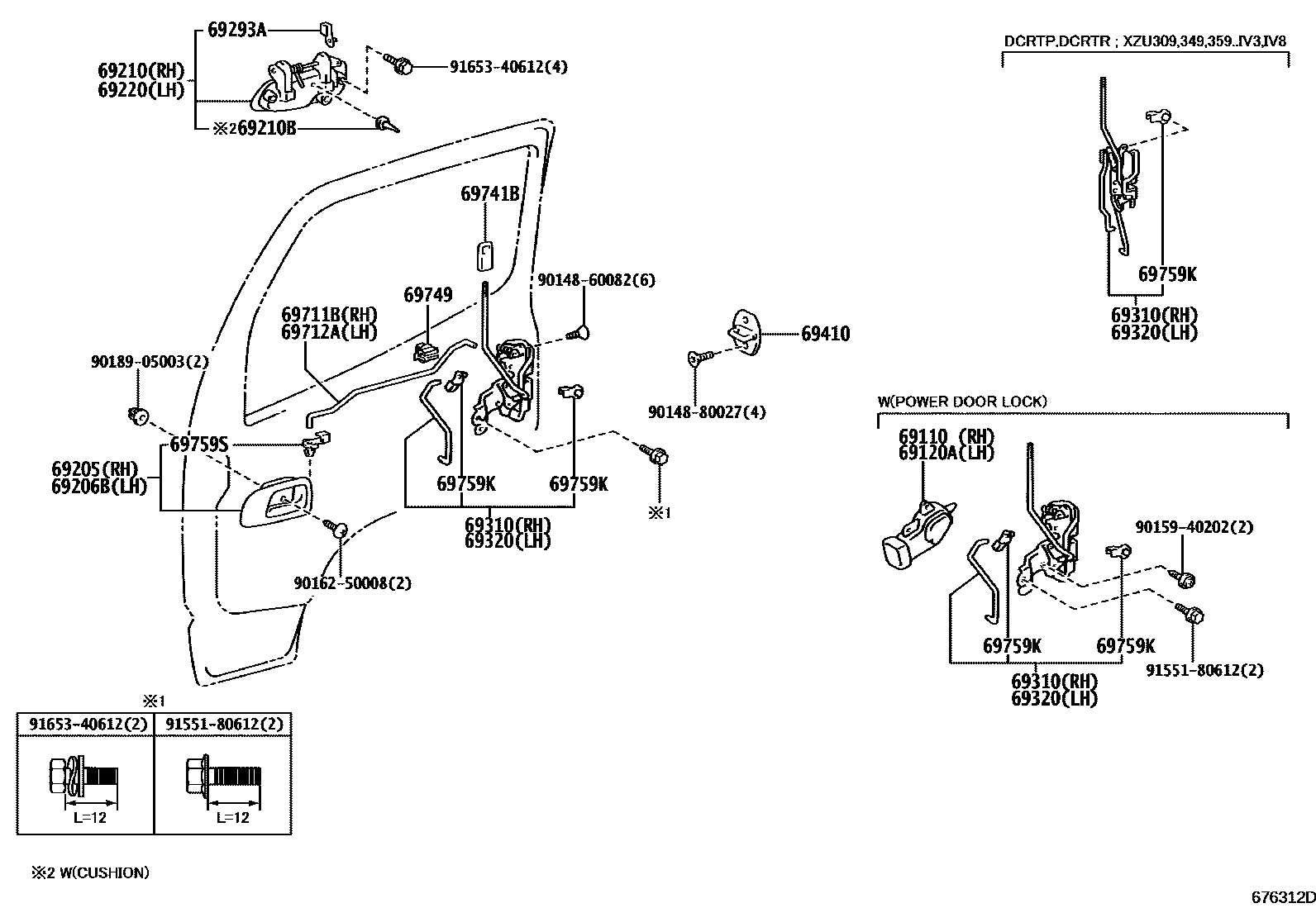

Toyota DYNA — FRONT DOOR LOCK & HANDLE

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-37060iBU303,WU300,XZU300,320,330,340..LHD..WT..IV3200308-200610

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-37060iBU300,340200212-200312

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-0W020-B0iWU302,342..DCRTP,DCRTR200912-201707

MD.CHARCOAL,TRIM1#

main69205-37010-B0iBU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW200209-200610

MD.CHARCOAL,TRIM1#

main69205-F1010iWU302,342,352201707

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-0W020-B0iWU302,342..DCRTP,DCRTR200912-201707

MD.CHARCOAL,TRIM1#

main69206-37010-B0iBU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW200209-200610

MD.CHARCOAL,TRIM1#

main69206-F1010iXZU349..5F;XZU309,359..IV8202203-202310

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-0W010iBU303,343,WU300,340,XZU342..IDN200512-200612

NO PAINT REQ.

main69210-0W011iWU302,342,352..DCRTP,DCRTR200912

NO PAINT REQ.

main69210-37020iWU300,340..SA200610-200812

NO PAINT REQ.

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04015×4iBU300,340200209-200312

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-0W010iBU303,343,WU300,340,XZU342..IDN200512-200612

BLACK

main69220-0W011iWU302,342,352..DCRTP,DCRTR200912

BLACK

main69220-37020iWU300,340..SA200610-200812

NO PAINT REQ.

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iXZU307,327,337,347200610-200901

RH

main69293-12060iBU300,340200209-200312

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-0W010iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main69310-0W020iWU302,342,352..DCRTP,DCRTR200912

main69310-37070iWU30#,34#..GCC,GEN200610-201106

main69310-37080iXZU305,345200501-200610

W(POWER WINDOW)

main69310-37090iBU303..RHD..WT..IV3200306-200610

W(POWER WINDOW)

69320LOCK ASSY, FRONT DOOR, LH

main69320-0W010iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main69320-0W020iXZU349..6F;XZU309..IV3202203

main69320-37060iWU300,340..SA200610-200812

main69320-37080iXZU307,327,337,347200610-200901

W(POWER WINDOW)

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0B040×2iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main69410-0K040×2iXZU349..6F;XZU309..IV3202203

main69410-20110×2iBU303,343,WU300,340,XZU305,345..ARL,GCC,GEN200212-200610

main69410-87001×2iBU303,343,WU300,340,XZU342..IDN200209-200308

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-0W010iWU302,342,352..DCRTP,DCRTR200912

main69711-0W020iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main69711-37010iBU300,340200212-200312

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-0W010iWU302,342,352..DCRTP,DCRTR200912

main69712-37010iWU300,340..SA200209-200802

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-0B010-B1×2iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

MD.CHARCOAL,TRIM1#

sub69741-32010

main69741-12040-B3×2iBU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW200212-200610

MD.CHARCOAL,TRIM1#

main69741-F1010×2iWU302,342,352201707

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12070×2iXZU349..5F;XZU309,359..IV8202203-202310

69759KSNAP, DOOR LOCK CONTROL LINK

main69759-20040iBU300,340200209-200312

YELLOW

main69759-20050iXZU300,320,330,340200308-200610

BROWN

main69759-24010iWU300,340..SA200209-200802

NATURAL

main69759-24020iXZU300,320,330,340200308-200610

BLUE

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-22040iWU300,340..SA200209-200802

LH

main69759-22050iXZU349..6F;XZU309..IV3202203

RH

9014860082

main90148-60082

9014880027

main90148-80027

9015940202

main90159-40202

9016250008

main90162-50008

9018905003

main90189-05003

9155180612

main91551-80612

9165340612

main91653-40612

24 parts on this diagram · 1 diagram in section
