Toyota DYNA — FRONT CLEARANCE LAMP

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main99132-11210×2i200107-200308

12V 21W,NO.1

main99132-21210×2i200107-200308

12V 21/5W,NO.2

81611BLENS & BODY, CLEARANCE LAMP, RH

main81611-25030i200107-201006

main81611-25031i201006-201609

81615SOCKET AND WIRE, CLEARANCE LAMP

main81615-25020×2i200107-200308

81615ASOCKET PLUG, CLEARANCE LAMP

main90075-99106×2i200107-201609

81621BLENS & BODY, CLEARANCE LAMP, LH

main81621-25020i200107-200308

main81621-25021i201006-201609

81637PROTECTOR, CLEARANCE LAMP, RH

main81637-37011i200107-200308

81638PROTECTOR, CLEARANCE LAMP, LH

main81638-37011i200107-200308

7119626040CLIP(FOR REAR SPOILER)

main71196-26040

8197337010

main81973-37010

9015960008

main90159-60008

9018906018

main90189-06018

9046710005C0

main90467-10005C0

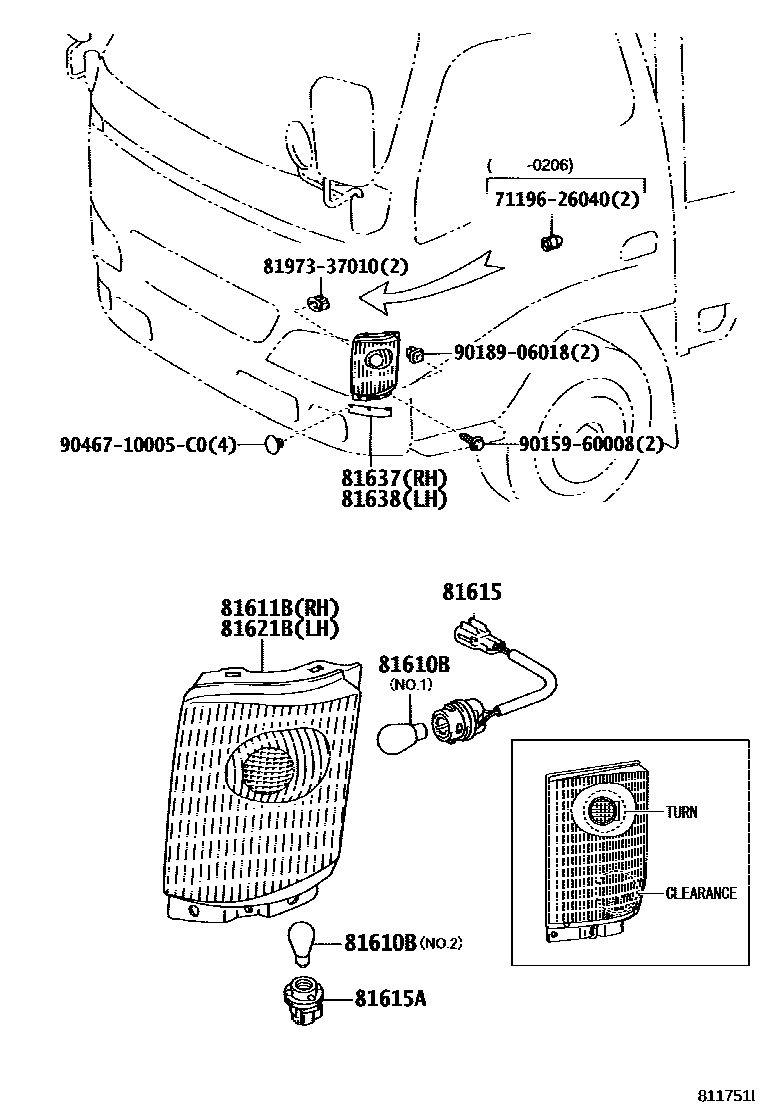

12 parts on this diagram · 1 diagram in section

FRONT CLEARANCE LAMP for Toyota DYNA

This section contains 12 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota DYNA. Key components include: BULB(FOR PARKING & CLEARANCE LAMP), LENS & BODY, CLEARANCE LAMP, RH, SOCKET AND WIRE, CLEARANCE LAMP, SOCKET PLUG, CLEARANCE LAMP, LENS & BODY, CLEARANCE LAMP, LH.
