Toyota DYNA — FRONT BUMPER & BUMPER STAY
52011AARM SUB-ASSY, FRONT BUMPER, RH
52012AARM SUB-ASSY, FRONT BUMPER, LH
52111EBAR, FRONT BUMPER
WHITE,058
SILVER ME,199
JORSEY CREAM,9A7
TURQUOISE,766
BLUE,8P0
WHITE,058
SILVER ME.,199
JORSEY CREAM,9A7
TURQUOISE,766
BLUE,8P0
CHROME PLATED BUMPER
CHROME PLATED BUMPER
W(FRONT SPOILER),WHITE,058
W(FRONT SPOILER),SILVER ME.,199
W(FRONT SPOILER),JORSEY CREAM,9A7
W(FRONT SPOILER),TURQUOISE,766
W(FRONT SPOILER),BLUE,8P0
W(FRONT SPOILER),WHITE,058
W(FRONT SPOILER),SILVER ME.,199
W(FRONT SPOILER),JORSEY CREAM,9A7
W(FRONT SPOILER),TURQUOISE,766
W(FRONT SPOILER),BLUE,8P0
CHROME PLATED BUMPER & W(FRONT SPOILER)
CHROME PLATED BUMPER & W(FRONT SPOILER)
52141DSTAY, FRONT BUMPER, RH
52142CSTAY, FRONT BUMPER, LH
9011908521
main90119-08521
9017908123
main90179-08123
91635G0835
main91635-G0835
8 parts on this diagram · 2 diagrams in section

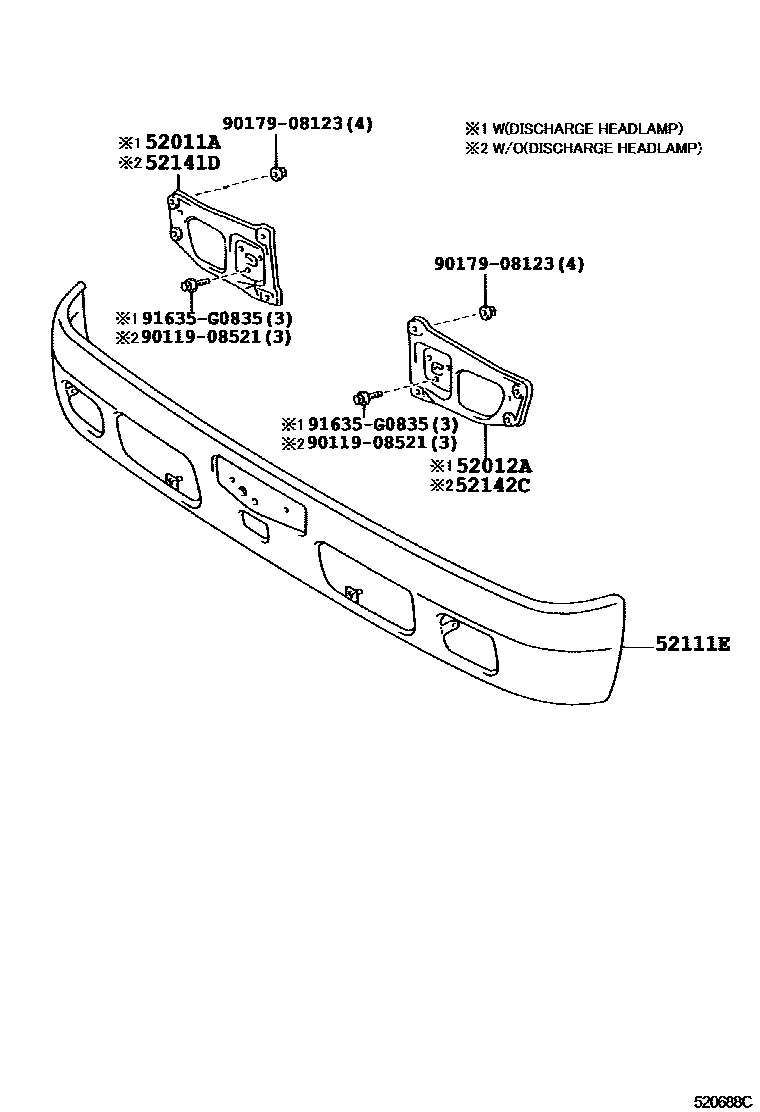

FRONT BUMPER & BUMPER STAY for Toyota DYNA
This section contains 20 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota DYNA. Key components include: ARM SUB-ASSY, FRONT BUMPER, RH, ARM SUB-ASSY, FRONT BUMPER, LH, BAR, FRONT BUMPER, BRACKET, FRONT BUMPER EXTENSION MOUNTING, RH, BRACKET, FRONT BUMPER EXTENSION MOUNTING, LH.
