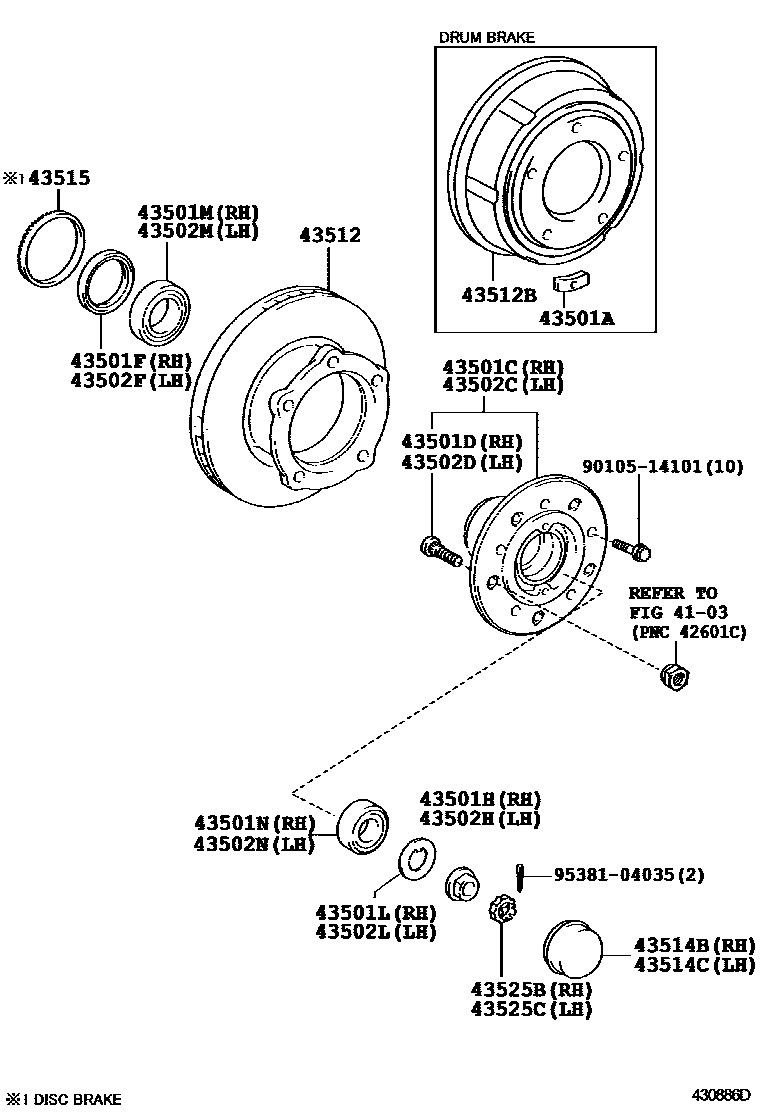

Toyota DYNA — FRONT AXLE HUB

0001 1 0003 1 0005 1 0007 1 0008 1

4103

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01117iWU420;WU410..65T..SA200110-200801

10G

main90937-01118iWU420;WU410..65T..SA200110-200801

20G

main90937-01119iBU410,420200110-200701

30G

main90937-01120iXZU414,424,434..EUR200110-200608

40G

main90937-01121iXZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)200110-200610

50G

main90937-01122iWU420;WU410..65T..SA200110-200801

60G

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43501-37060iXZU404,412,414,424..55T200110-200610

sub43501-37061

sub43514-37060

main43501-37110iWU420;WU410..65T..SA200110-200801

main43501-37120iXZU414,424,434..EUR200110-200608

main43501-37170iXZU415,425,435200608-200708

sub43501-37171

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02071iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200610-201208

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90033-19009iWU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..(65T,75T,85T)..(DCRTJ,DCRTK,DSL)200610-201208

main90311-68002iXZU404,41#,424..55T200110-200409

main90311-68003iXZU404,412,414,424..55T200409-200610

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90178-28001iXZU404,412,414,424..55T200311-200610

43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)

main90214-29001iWU410..GCC;XZU413..55T200610-201106

main90214-33001iBU410,420200411-200701

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90366-50069iWU410..GCC;XZU413..55T200610-201106

main90368-50001iBU410,420200411-200701

43501NBEARING (FOR FRONT AXLE HUB OUTER RH)

main90033-66032iXZU415,425,435200110-200708

main90366-35105iWU410..GCC;XZU413..55T200610-201106

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-37060iXZU404,412,414,424..55T200110-200610

sub43502-37061

sub43514-37060

main43502-37110iBU410,420200110-200701

main43502-37120iXZU414,424,434..EUR200110-200608

main43502-37170iXZU415,425,435200608-200708

sub43502-37171

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02072iWU410..75T..SA;XZU412,420,422,430..6F200110-200802

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90033-19009iWU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..(65T,75T,85T)..(DCRTJ,DCRTK,DSL)200610-201208

main90311-68002iXZU404,41#,424..55T200110-200409

main90311-68003iXZU404,412,414,424..55T200409-200610

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90178-28001iWU410..GCC;XZU413..55T200610-201106

43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)

main90214-29001iWU410..GCC;XZU413..55T200610-201106

main90214-33001iBU410,420200411-200701

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90366-50069iWU410..GCC;XZU413..55T200610-201106

main90368-50001iWU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..(65T,75T,85T)..(DCRTJ,DCRTK,DSL)200610-201208

43502NBEARING (FOR FRONT AXLE HUB OUTER LH)

main90033-66032iXZU414,424,434..EUR200110-200608

main90366-35105iWU410..GCC;XZU413..55T200610-201106

43512DISC, FRONT

main43512-37090×2iXZU404,414,424..RHD..55T200110-200610

sub43512-37091

main43512-37120×2iXZU415,419,425,429,435,439200708-201208

sub43512-37121

43512BDRUM, BRAKE

main43512-37110×2iWU410..GCC;XZU413..55T200610-201106

main43512-37130×2iWU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T200610-201106

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-37030iXZU404,412,414,424..55T200110-200610

main43514-37040iXZU414,424,434..EUR200110-200608

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-37030iWU410..GCC;XZU413..55T200610-201106

main43514-37040iXZU415,425,435200110-200708

43515ROTOR, SKID CONTROL, FRONT

main43515-37010×2iXZU404,414,424..RHD..55T200110-200610

main43515-37030×2iXZU414,424,434..RHD..(65T,75T,85T)200110-200610

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-37010iXZU404,412,414,424..55T200110-200610

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-37010iXZU404,412,414,424..55T200110-200610

9010514101

main90105-14101

9538104035

main95381-04035

25 parts on this diagram · 5 diagrams in section
