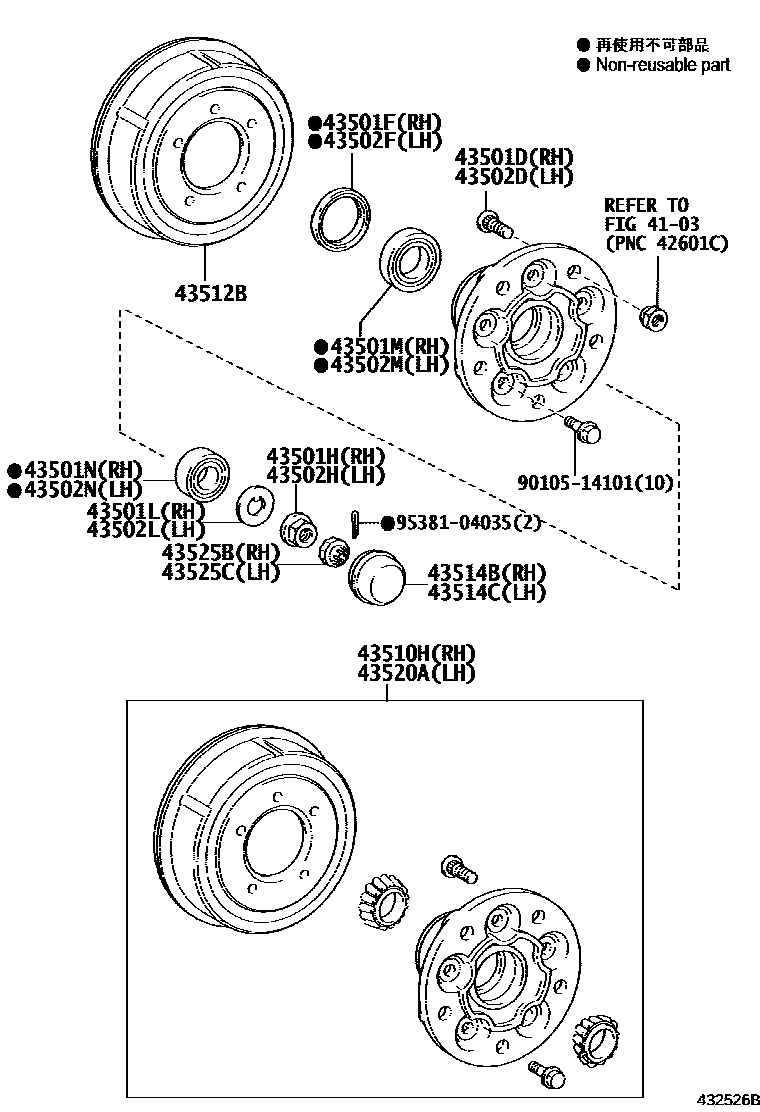

Toyota DYNA — FRONT AXLE HUB

0001 1FRONT DRUM BRAKE 0002 1FRONT DISC BRAKE

4103

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02071iXZU600..GEN201911

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-68003iXZU600..GCC;WU600,650,XZU650201107-202005

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90178-28001iXZU600..GCC;WU600,650,XZU650201107-202005

43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)

main90214-29001iXZU600..GCC;WU600,650,XZU650201107-202005

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90366-50069iXZU600..GCC;WU600,650,XZU650201107-202005

43501NBEARING (FOR FRONT AXLE HUB OUTER RH)

main90366-35105iXZU600..GCC;WU600,650,XZU650201107-202005

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02072iXZU600..GCC;WU600,650,XZU650201107-202005

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-68003iXZU600..GCC;WU600,650,XZU650201107-202005

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90178-28001iXZU600..GCC;WU600,650,XZU650201107-202005

43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)

main90214-29001iXZU600..GCC;WU600,650,XZU650201107-202005

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90366-50069iXZU600..GEN201911

43502NBEARING (FOR FRONT AXLE HUB OUTER LH)

main90366-35105iXZU600..GCC;WU600,650,XZU650201107-202005

43510HHUB & DISC(DRUM) ASSY, FRONT AXLE, RH

main43510-39207supersedes 43510-39266iXZU600202405

FRONT WHEEL BRAKE-DISC&ABS-WITH(WITH POWER ASSIST BRAKE)

main43510-39275supersedes 43510-39205iXZU600,650..GCC201605-202005

ABS-WITHOUT

main43510-39276supersedes 43510-39266iXZU600202405

FRONT WHEEL BRAKE-DISC

43512DISC, FRONT

main43512-37091×2iXZU600,650..GCC201605-202005

main43512-37090×2iWU600,650201107-201410

FRONT WHEEL BRAKE-DISC

43512BDRUM, BRAKE

main43512-37110×2iXZU600..GEN201911

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-37030iWU600,650201107-201304

main43514-37050iXZU600..GCC;WU600,650,XZU650201305-202005

main43514-37060iXZU600202405

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-37030iWU600,650201107-201304

main43514-37050iXZU600..GCC;WU600,650,XZU650201305-202005

main43514-37060iXZU600202405

43520AHUB & DISC(DRUM) ASSY, FRONT AXLE, LH

main43520-39186supersedes 43520-39246iXZU600202405

FRONT WHEEL BRAKE-DISC&ABS-WITH(WITH POWER ASSIST BRAKE)

main43520-39255supersedes 43520-39245iWU600,650201107-202005

FRONT WHEEL BRAKE-DISC

main43520-39256supersedes 43520-39246iXZU600202405

FRONT WHEEL BRAKE-DISC

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-37010iXZU600..GCC;WU600,650,XZU650201107-202005

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-37010iXZU600..GCC;WU600,650,XZU650201107-202005

9010514101

main90105-14101

9538104035

main95381-04035

23 parts on this diagram · 2 diagrams in section
