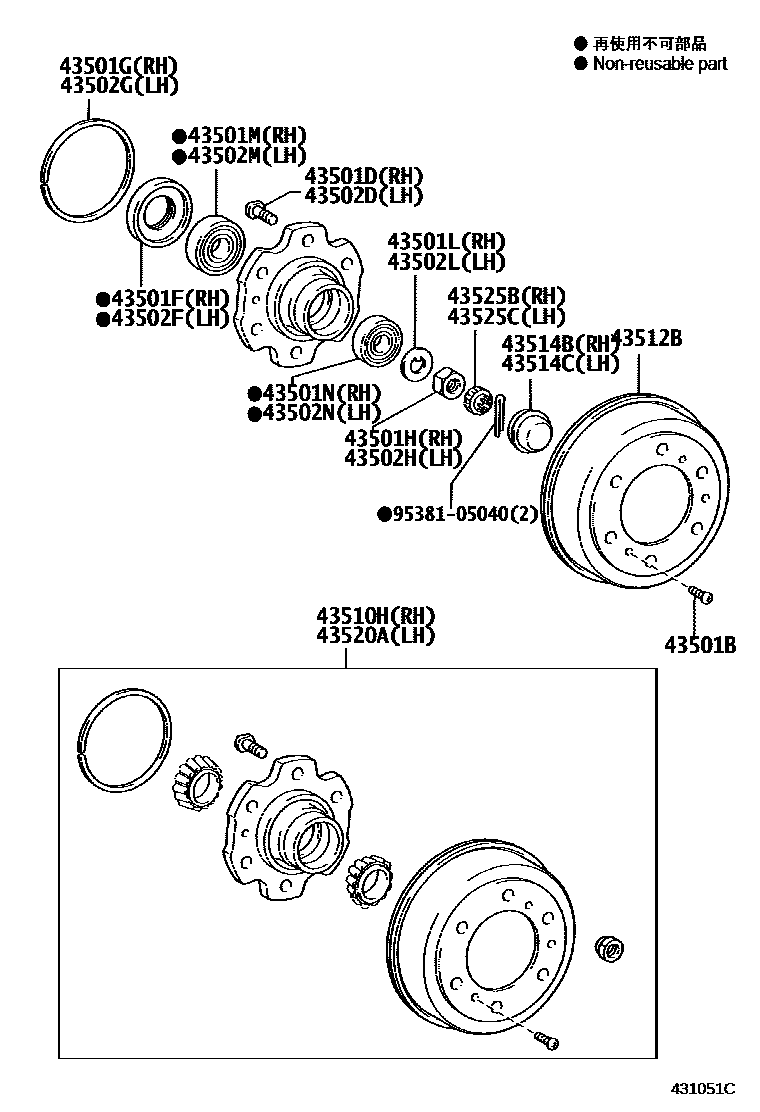

Toyota DYNA — FRONT AXLE HUB

0001 1 0002 1 0003 1 0006 1 0007 1 0008 1 0010 1 0011 1 0012 1 0013 1 0014 1

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10035×2iWU300..T3200209-200610

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02024iWU302..DCRTP200912-201706

main90942-02045iWU342..DCRTH200612-201005

main90942-02071iBU300,340200209-200312

main90942-T2002iWU342,352..65T201707

main90942-T2004iWU342,352..75T,85T201707

main90942-T2006×6iXZU309,349..ST..IV8202203-202310

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-68001iBU303,343,WU300..IDN200209-200612

main90311-68002iBU300,340200212-200312

main90311-68003iXZU349..6F202203

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90520-99065iBU303,WU300..T3200209-200612

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90170-26001iWU302,342..DCRTH..T3200612-201005

main90178-28001iXZU307,327,337,347200610-200901

43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)

main90214-27001iXZU309..IV3202203

main90214-29001iBU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW200209-200610

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90366-50069iWU300,340..SA200209-200802

main90368-42045iXZU309..IV3202203

43501NBEARING (FOR FRONT AXLE HUB OUTER RH)

main90366-35105iWU340,XZU342..IDN200209-200612

main90368-28001iBU303,343,WU300..IDN200209-200612

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02025iWU302..DCRTP200912-201706

main90942-02046iBU343..IDN200209-200612

main90942-02072iWU30#,34#..GCC,GEN200610-201106

main90942-T2003×5iXZU349..WT..DCRTH..IV8202203-202310

main90942-T2005×5iXZU359;XZU349..5F..(75T,85T)202203-202310

main90942-T2007×6iXZU309..IV3202203

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-68001iBU303,343,WU300..IDN200209-200612

main90311-68002iWU340,XZU342;BU303,343,WU300,XZU30#,320,330,340,345..ARL,GCC,GEN,SA,TAIW200212-200409

main90311-68003iXZU307,327,337,347200610-200901

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90520-99065iBU303,WU300..T3200209-200612

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90170-26001iWU302,342..DCRTH..T3200612-201005

main90178-28001iWU300,340..SA200610-200812

43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)

main90214-27001iBU303,343,WU300..IDN200209-200612

main90214-29001iWU300,340..SA200610-200812

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90366-50069iXZU307,327,337,347200610-200901

main90368-42045iBU303,343,WU300..IDN200209-200612

43502NBEARING (FOR FRONT AXLE HUB OUTER LH)

main90366-35105iWU340,XZU342..IDN200209-200612

main90368-28001iXZU309,349..DCRTH..IV8202203-202310

43510HHUB & DISC(DRUM) ASSY, FRONT AXLE, RH

main43510-09010iWU342..75T..DCRTJ200612-201005

main43510-09011iXZU359..85T;XZU349..5F..IV3202203-202310

main43510-09020iWU342..65T..DCRTJ..IDN200612-201005

main43510-09021iXZU349,359..75T..DCRTJ202203-202310

main43510-09030iWU342..DCRTH200612-201005

main43510-09031iXZU349..WT..DCRTH..IV8202203-202310

main43510-09040iWU300..T3200209-200610

main43510-09041iWU302,342..ST201703

main43510-39205iWU300,340..SA200802-200812

sub43510-39207

sub43514-37060

main43510-39265iWU30#,34#..GCC,GEN200610-201106

sub43510-39266

sub43514-37060

main43510-39275iWU30#..ST..TS201002-201106

W(DISC BRAKE)

sub43510-39276

sub43514-37060

main43510-39285iXZU337,347..80T200610-200901

43512DISC, FRONT

main43512-37080×2iBU300..T4200212-200312

main43512-37090×2iWU30#..ST..TS201002-201106

sub43512-37091

main43512-37140×2iXZU330,340..80T200410-200610

43512BDRUM, BRAKE

main43512-0W030×2iWU342..75T..DCRTJ200612-201005

main43512-0W040×2iWU342,352..75T..(DCRTP,DCRTR)200912

main43512-0W050×2iWU300..T3200209-200610

main43512-36101×2iWU342..DCRTH200612-201005

main43512-37110×2iWU30#,34#..GCC,GEN200610-201106

main43512-37130×2iXZU330,340..80T200212-200410

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-36030iBU303,343,WU300200209-200212

main43514-36050iXZU309,349..DCRTH..IV8202203-202310

main43514-37030iWU30#,34#..GCC,GEN200610-201106

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-36030iBU303,343,WU300200209-200212

main43514-36050iBU303,343,WU300..IDN200212-200612

main43514-37030iWU300,340..SA200610-200812

43520AHUB & DISC(DRUM) ASSY, FRONT AXLE, LH

main43520-09010iWU342..75T..DCRTJ200612-201005

main43520-09011iXZU359..85T;XZU349..5F..IV3202203-202310

main43520-09020iWU342..75T..(DCRTP,DCRTR)200912-201703

main43520-09021iXZU349,359..75T..DCRTJ202203-202310

main43520-09030iWU342..65T..DCRTP200912-201703

main43520-09031iXZU349..WT..DCRTH..IV8202203-202310

main43520-09040iWU302..DCRTP200912-201703

main43520-09041iXZU309..IV3202203

main43520-39185iWU300,340..SA200802-200812

sub43520-39186

sub43514-37060

main43520-39245iWU30#,34#..GCC,GEN200610-201106

sub43520-39246

sub43514-37060

main43520-39255iWU30#..ST..TS201002-201106

W(DISC BRAKE)

sub43520-39256

sub43514-37060

main43520-39265iXZU337,347..80T200610-200901

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-36010iWU302,342,352..(48T,65T)..DCRTP200912

main43525-37010iWU342,352..(75T,85T)..(DCRTP,DCRTR)200912

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-36010iXZU309..IV3202203

main43525-37010iWU300,340..SA200610-200812

9538105040

main95381-05040

24 parts on this diagram · 11 diagrams in section
