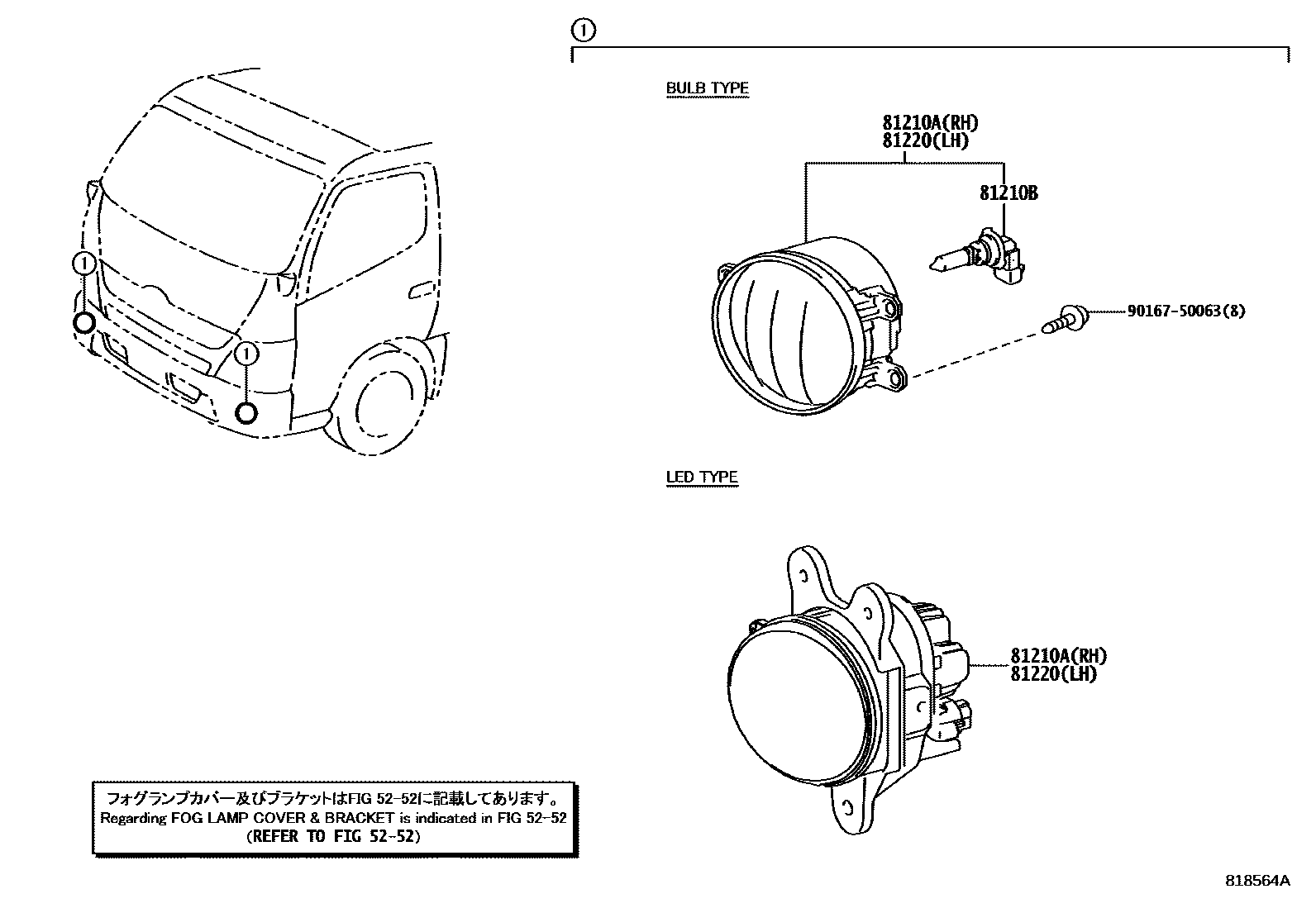

Toyota DYNA — FOG LAMP

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

81210ALAMP ASSY, FOG, RH

main81210-0W070i201306-201512

main81210-37190i201905-202005

FRONT FOG LAMP-WITH(LED)

81210BBULB, FOG LAMP

main90981-17023×2i201306-201512

24V 70W

mainSZ98031047×2i201802-201905

24V 70W,FRONT FOG LAMP-WITH(WHITE)

81220LAMP ASSY, FOG, LH

main81220-0W060i201306-201512

main81220-37190i201905-202005

FRONT FOG LAMP-WITH(LED)

9016750063

main90167-50063

5 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota DYNA

This section contains 5 genuine Toyota parts for the FOG LAMP system of the Toyota DYNA. Key components include: FRONT BUMPER & BUMPER STAY, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP ASSY, FOG, LH.
