Toyota DYNA — FOG LAMP

81210LAMP ASSY, FOG

main81210-37060i200110-200505

LENS:CLEAR

main81210-37090i200212-200505

LENS:YELLOW

81210BBULB, FOG LAMP

main90981-17021×2i200610-201106

24V 70W,ALGERIA SPEC

main99134-11250×2i200110-200802

24V 25W

81211CLAMP UNIT, FOG LAMP, RH

main81211-37040i200110-200505

LENS:CLEAR

main81211-37041i200610-201106

LENS:CLEAR

main81211-37050i200212-200505

LENS:YELLOW

main81211-37051i200505-200701

LENS:YELLOW

main81211-37140i200610-201208

81215DFOG LAMP SOCKET PLUG ASSY

main90075-99092×2i200110-200701

81220LAMP ASSY, FOG, LH

main81220-37030i200110-200505

LENS:CLEAR

main81220-37060i200212-200505

LENS:YELLOW

81221CLAMP UNIT, FOG LAMP, LH

main81221-37010i200110-200505

LENS:CLEAR

main81221-37011i200505-200802

LENS:CLEAR

main81221-37020i200212-200505

LENS:YELLOW

main81221-37021i200505-200802

LENS:YELLOW

main81221-37140i200610-201208

81481BRACKET, FOG LAMP

main81481-37020×2i200110-200610

8195737010

main81957-37010

9010905100

main90109-05100

9011906678

main90119-06678

9015950267

main90159-50267

9016350011

main90163-50011

9016850077

main90168-50077

9020506004

main90205-06004

9046705094

main90467-05094

9046707082C0

main90467-07082C0

93383A6018

main93383-A6018

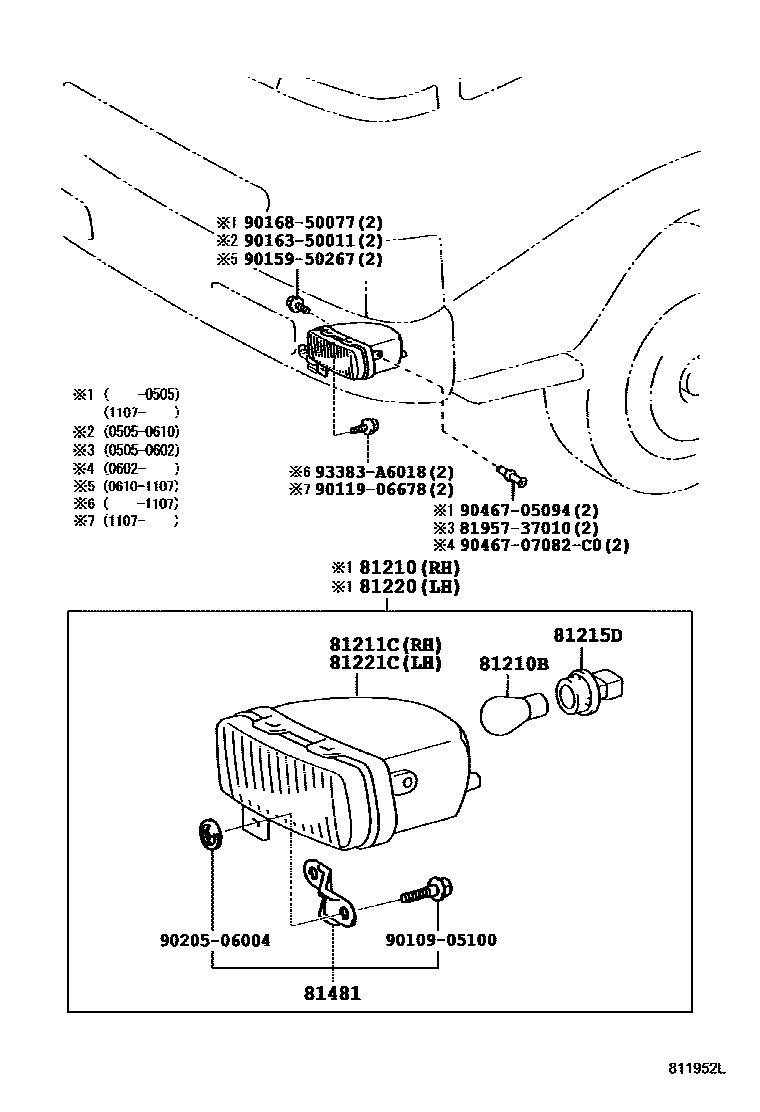

17 parts on this diagram · 2 diagrams in section

FOG LAMP for Toyota DYNA

This section contains 18 genuine Toyota parts for the FOG LAMP system of the Toyota DYNA. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, FOG LAMP SOCKET PLUG ASSY, CORD, FOG LAMP.
