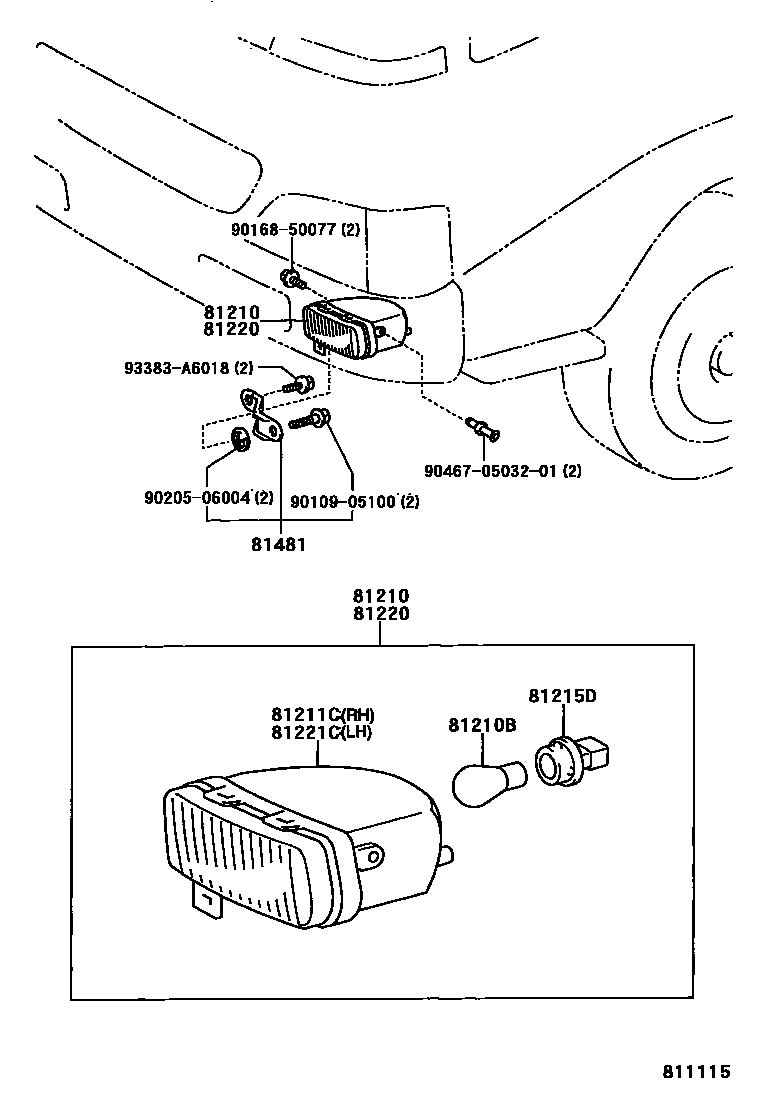

Toyota DYNA — FOG LAMP

81210LAMP ASSY, FOG

main81210-37060i200010-200206

81210BBULB, FOG LAMP

main99134-11250×2i200010-200206

24V 25W

81211CLAMP UNIT, FOG LAMP, RH

main81211-37040i200010-200206

81215DFOG LAMP SOCKET PLUG ASSY

main90075-99092×2i200010-200206

81220LAMP ASSY, FOG, LH

main81220-37030i200010-200206

81221CLAMP UNIT, FOG LAMP, LH

main81221-37010i200010-200206

81481BRACKET, FOG LAMP

main81481-37020×2i200010-200206

9010905100

main90109-05100

9016850077

main90168-50077

9020506004

main90205-06004

904670503201

main90467-0503201

93383A6018

main93383-A6018

12 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota DYNA

This section contains 12 genuine Toyota parts for the FOG LAMP system of the Toyota DYNA. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, FOG LAMP SOCKET PLUG ASSY, LAMP ASSY, FOG, LH.
