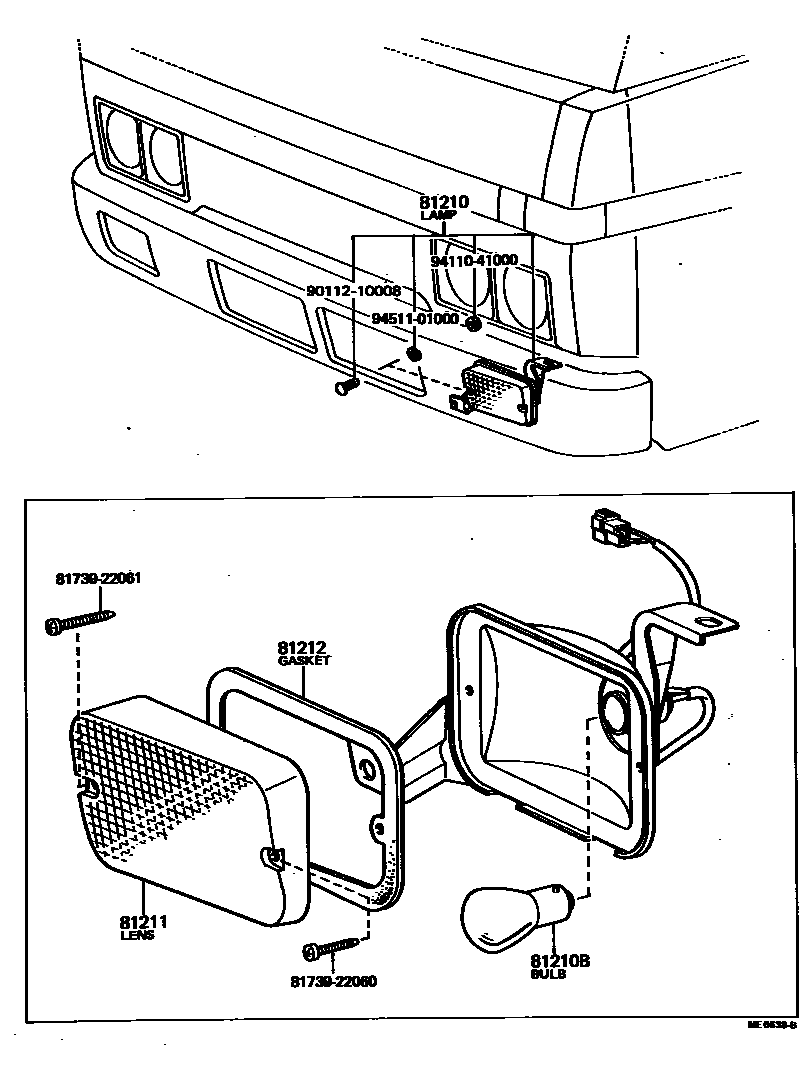

Toyota DYNA — FOG LAMP

81210LAMP ASSY, FOG

main81210-39055i198302-198408

24V,RH

main81210-39065i198008-198411

12V,RH

main81220-39025i198302-198408

24V,LH

main81220-39035i198304-198408

12V,LH

81210BBULB, FOG LAMP

main90981-17010×2i198302-198408

24V 35W

main99132-11350×2i198304-198408

12V 35W,12V 35W

81211LENS, FOG LAMP

main81211-95400i198304-198408

main81221-95400i198304-198408

81212GASKET, FOG LAMP LENS

main81212-95400×2i198304-198408

8173922060

main81739-22060

8173922061

main81739-22061

9011210008

main90112-10008

9411041000

main94110-41000

9451101000

main94511-01000

9 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota DYNA

This section contains 9 genuine Toyota parts for the FOG LAMP system of the Toyota DYNA. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LENS, FOG LAMP, GASKET, FOG LAMP LENS.
