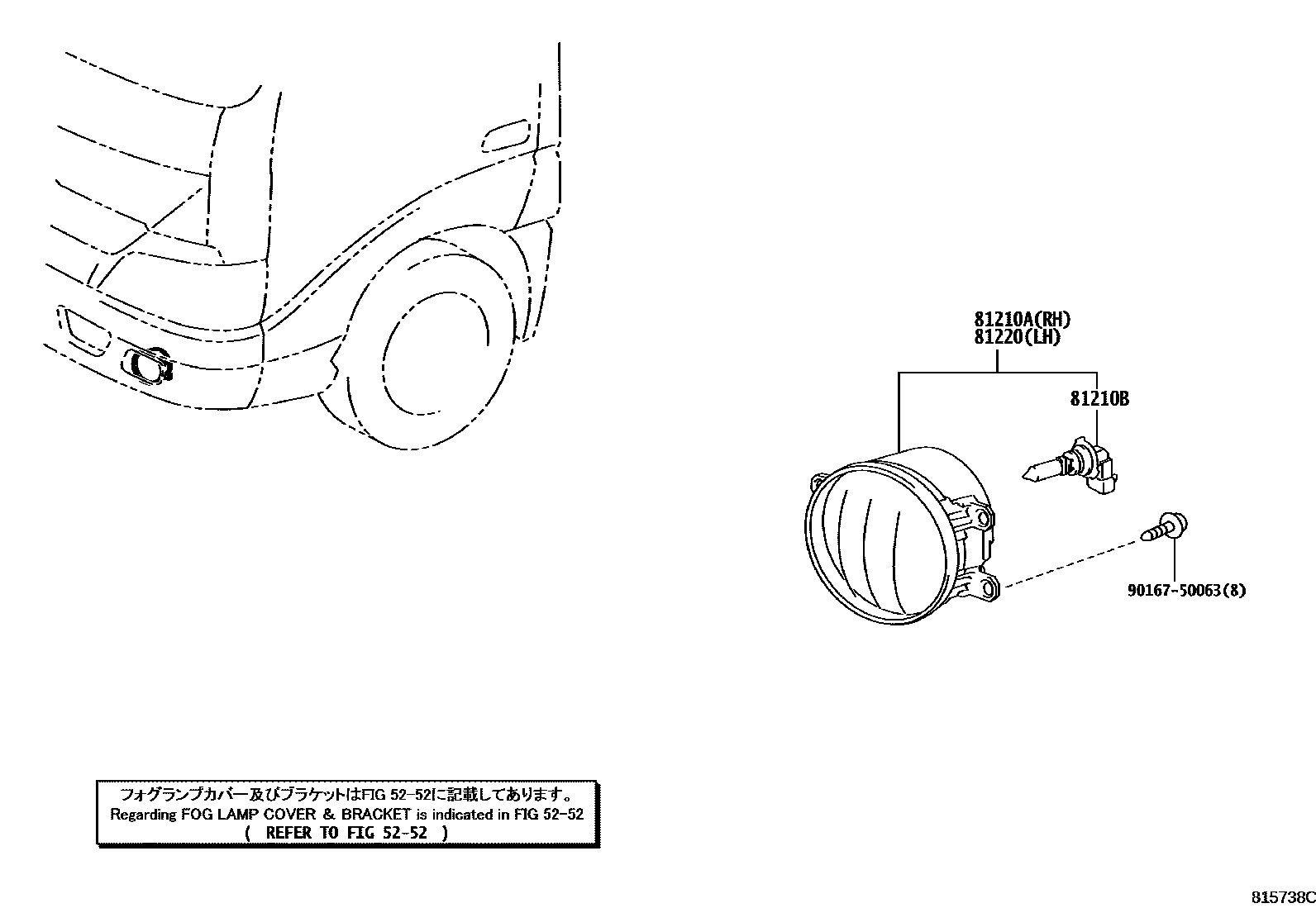

Toyota DYNA — FOG LAMP
5252FRONT BUMPER & BUMPER STAY
81210ALAMP ASSY, FOG, RH
FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W); FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W)
FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W); FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W)
FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W); FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W)
FRONT BUMPER-PAINTED, RESIN&FRONT FOG LAMP-WITH(LED)
81210BBULB, FOG LAMP
24V 70W,FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W); 24V 70W,FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W)
24V 25W,FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W); 24V 25W,FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W); 24V 25W,FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W); 24V 25W,FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(YELLOW 24V 25W)
81220LAMP ASSY, FOG, LH
FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W); FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 70W)
FRONT BUMPER-PAINTED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W); FRONT BUMPER-PLATED,STEEL&FRONT FOG LAMP-WITH(WHITE 24V 25W)
FRONT FOG LAMP-WITH(YELLOW 24V 25W)
FRONT FOG LAMP-WITH(LED)
9016750063
main90167-50063
5 parts on this diagram · 3 diagrams in section
FOG LAMP for Toyota DYNA
This section contains 14 genuine Toyota parts for the FOG LAMP system of the Toyota DYNA. Key components include: FRONT BUMPER & BUMPER STAY, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, FOG LAMP SOCKET PLUG ASSY.
