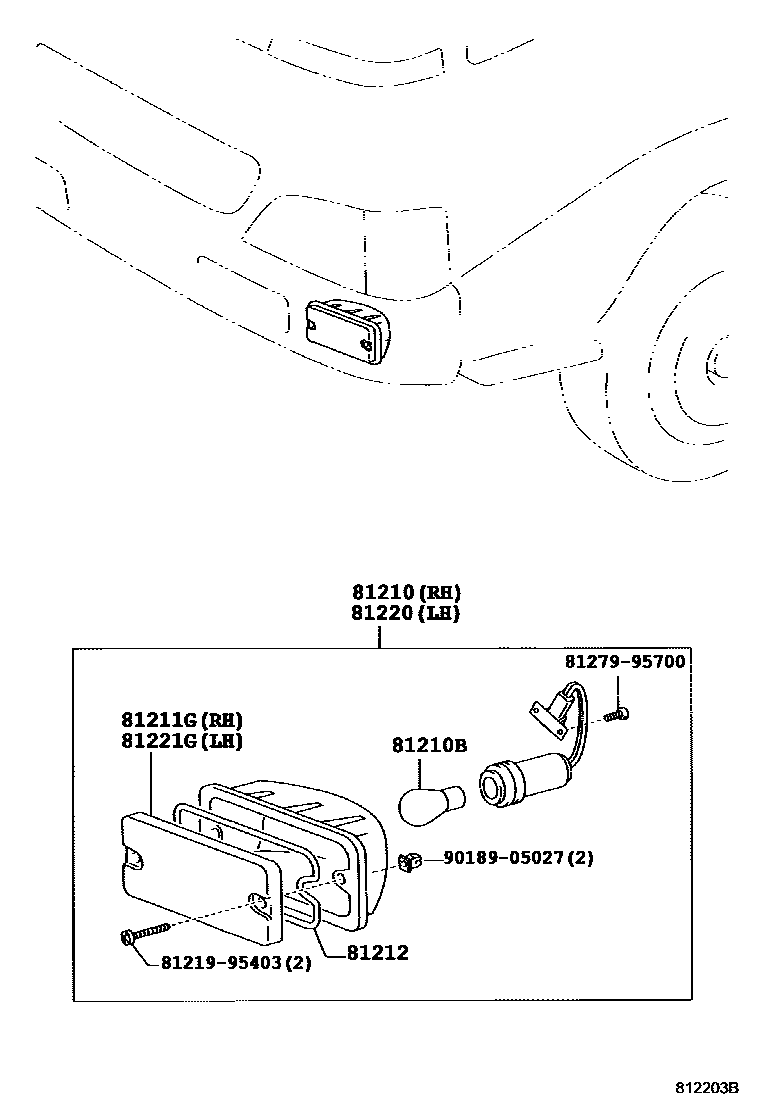

Toyota DYNA — FOG LAMP

81210LAMP ASSY, FOG

main81210-39145i200612-201005

81210BBULB, FOG LAMP

main90981-13029×2i200912

12V 35W

main90981-13090×2i202203-202310

12V 19W

main90981-17013×2i200612-201005

24V 35W

main90981-17021×2i200610-200901

24V 70W

main99134-11250×2i200212-200610

24V 25W

81211GLENS, FOG LAMP, RH

main81211-95403i200209-200612

81212GASKET, FOG LAMP LENS

main81212-95403×2i200209-200612

81220LAMP ASSY, FOG, LH

main81220-0K130i202203

main81220-39085i200612-201005

main81220-39095i200912

81221GLENS, FOG LAMP, LH

main81221-95403i200209-200612

8121995403BOLT, FOG LAMP

main81219-95403

8127995700WASHER, SIDE TURN SIGNAL LAMP

main81279-95700

9018905027

main90189-05027

9 parts on this diagram · 5 diagrams in section

FOG LAMP for Toyota DYNA

This section contains 23 genuine Toyota parts for the FOG LAMP system of the Toyota DYNA. Key components include: FRONT BUMPER & BUMPER STAY, LAMP ASSY, FOG, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH.
