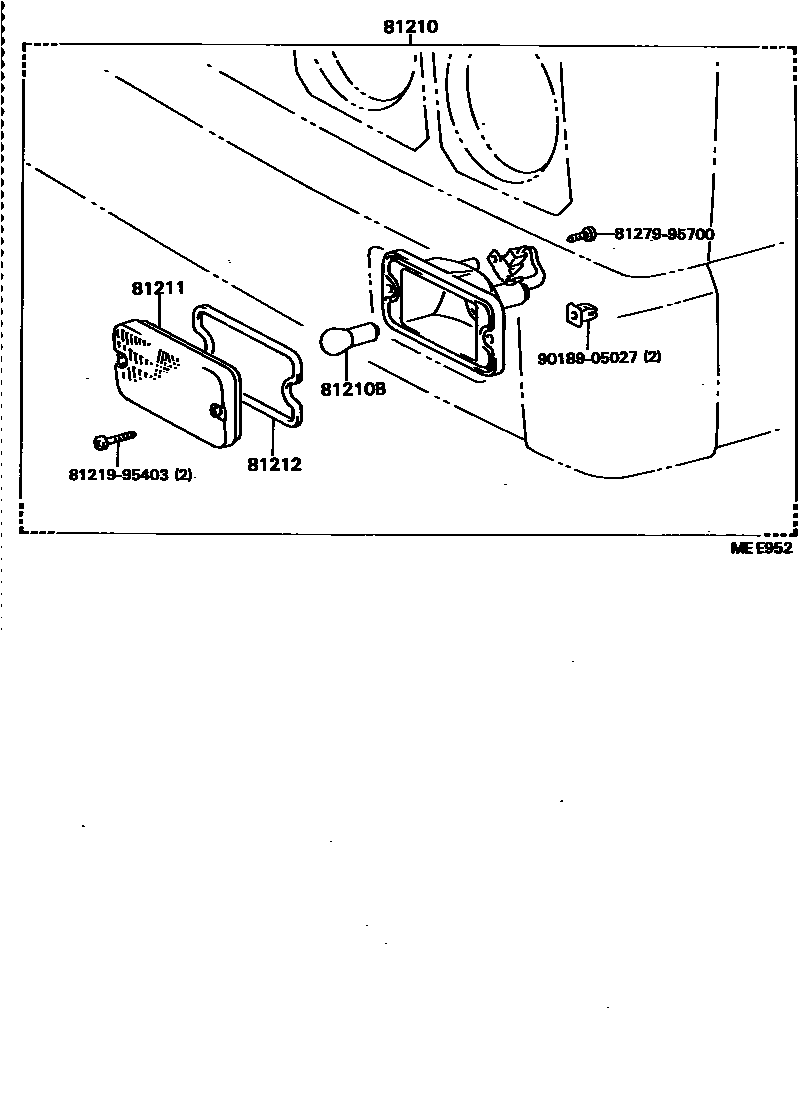

Toyota DYNA — FOG LAMP

81210LAMP ASSY, FOG

main81210-39145i198409-198708

RH,CHINA OR ALGERIA SPEC

main81210-39155i198409-198708

main81220-39085i198409-198708

LH,CHINA OR ALGERIA SPEC

main81220-39095i198409-198708

81210BBULB, FOG LAMP

main90981-13029×2i198409-198708

12V 35W,12V 35W

main90981-17013×2i198409-198708

24V 35W,24V 35W,CHINA OR ALGERIA SPEC

81211LENS, FOG LAMP

main81211-95403i198409-198708

main81221-95403i198409-198708

81212GASKET, FOG LAMP LENS

main81212-95403×2i198409-198708

8121995403BOLT, FOG LAMP

main81219-95403

8127995700WASHER, SIDE TURN SIGNAL LAMP

main81279-95700

9018905027

main90189-05027

7 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota DYNA

This section contains 7 genuine Toyota parts for the FOG LAMP system of the Toyota DYNA. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LENS, FOG LAMP, GASKET, FOG LAMP LENS, BOLT, FOG LAMP.
