Toyota DYNA — FOG LAMP

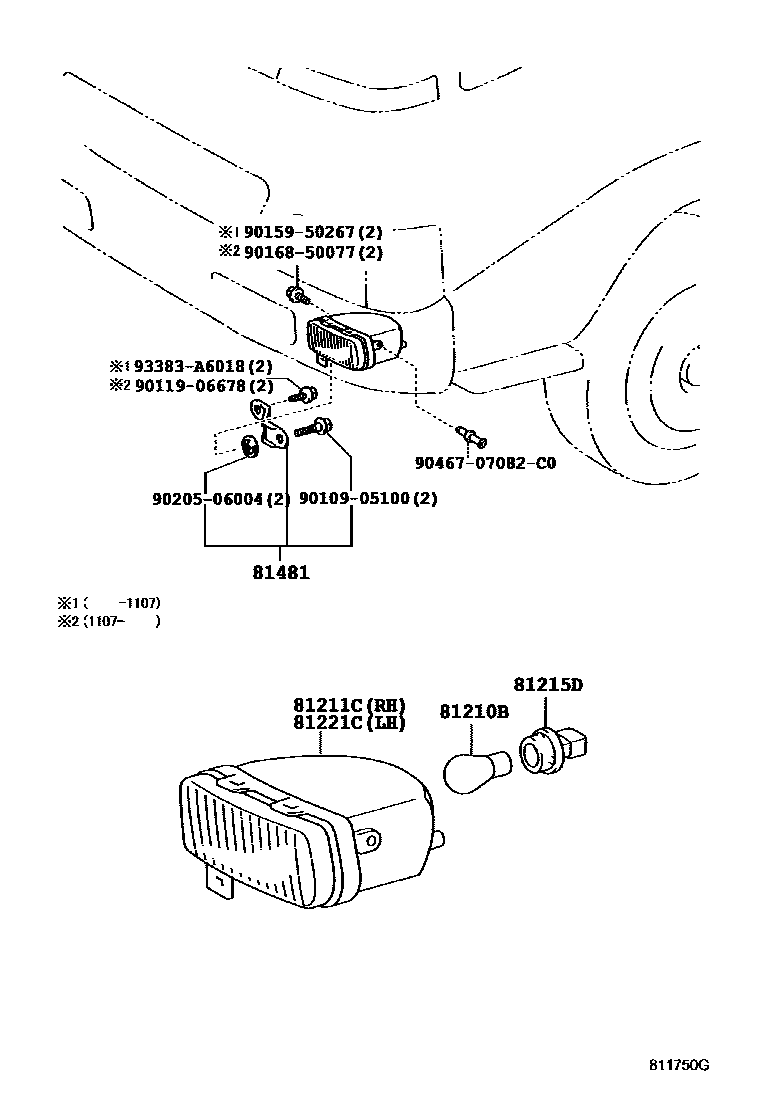

Parts diagram

81210BBULB, FOG LAMP

main90981-13090×2i201610

12V 19W

main99132-11270×2i200107-201610

12V 27W

81211CLAMP UNIT, FOG LAMP, RH

main81211-37070i200107-200505

main81211-37071i200505-201610

main81211-47010i201610

81215DFOG LAMP SOCKET PLUG ASSY

main90075-99092×2i200107-201610

81221CLAMP UNIT, FOG LAMP, LH

main81221-37040i200107-200505

main81221-37041i200505-201610

main81221-47010i201610

81481BRACKET, FOG LAMP

main81481-37010×2i200107-201610

9010905100

main90109-05100

9011906678

main90119-06678

9015950267

main90159-50267

9016850077

main90168-50077

9020506004

main90205-06004

9046707082C0

main90467-07082C0

93383A6018

main93383-A6018

12 parts on this diagram · 2 diagrams in section

FOG LAMP for Toyota DYNA

This section contains 16 genuine Toyota parts for the FOG LAMP system of the Toyota DYNA. Key components include: FRONT BUMPER & BUMPER STAY, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, FOG LAMP SOCKET PLUG ASSY.
