Toyota DYNA — FLOOR INSULATOR

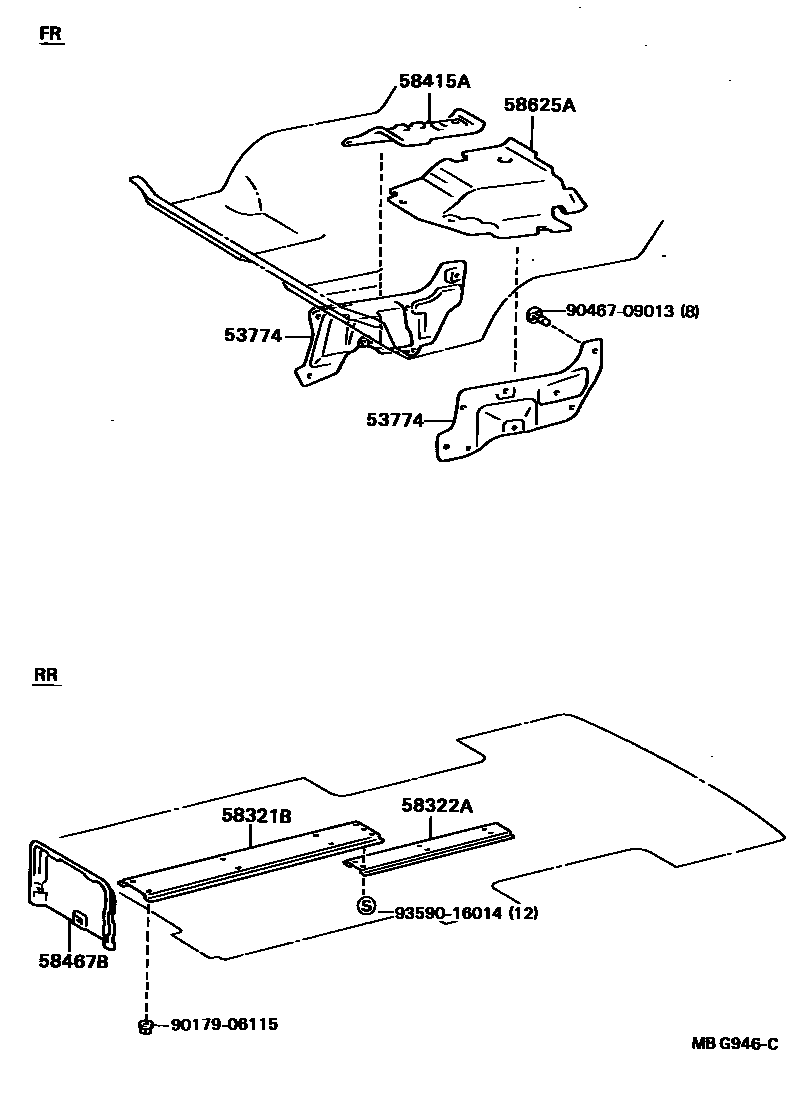

Parts diagram

53774INSULATOR, APRON FRONT FENDER

main53774-95401i198409-198708

LH

main53783-95401i198409-198708

RH

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-92602i198409-198708

58322AINSULATOR, REAR FLOOR HEAT, REAR

main58045-92600i198508-198708

main58322-92601i198409-198508

58415AINSULATOR, SUB-COVER

main59268-95400i198409-198508

main59268-95401i198409-198608

main59268-95402i198508-198708

main59268-95403i198608-198708

58467BINSULATOR, MISSION SERVICE HOLE COVER

main58327-92601i198409-198708

main58327-92602i198510-198708

58625AINSULATOR, ENGINE SERVICE MAIN HOLE COVER

main59258-95400i198409-198708

main59258-95401i198409-198708

9017906115

main90179-06115

9046709013

main90467-09013

9359016014

main93590-16014

9 parts on this diagram · 1 diagram in section

FLOOR INSULATOR for Toyota DYNA

This section contains 9 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota DYNA. Key components include: INSULATOR, APRON FRONT FENDER, INSULATOR, REAR FLOOR HEAT, NO.1, INSULATOR, REAR FLOOR HEAT, REAR, INSULATOR, SUB-COVER, INSULATOR, MISSION SERVICE HOLE COVER.
