Toyota DYNA — FLOOR INSULATOR

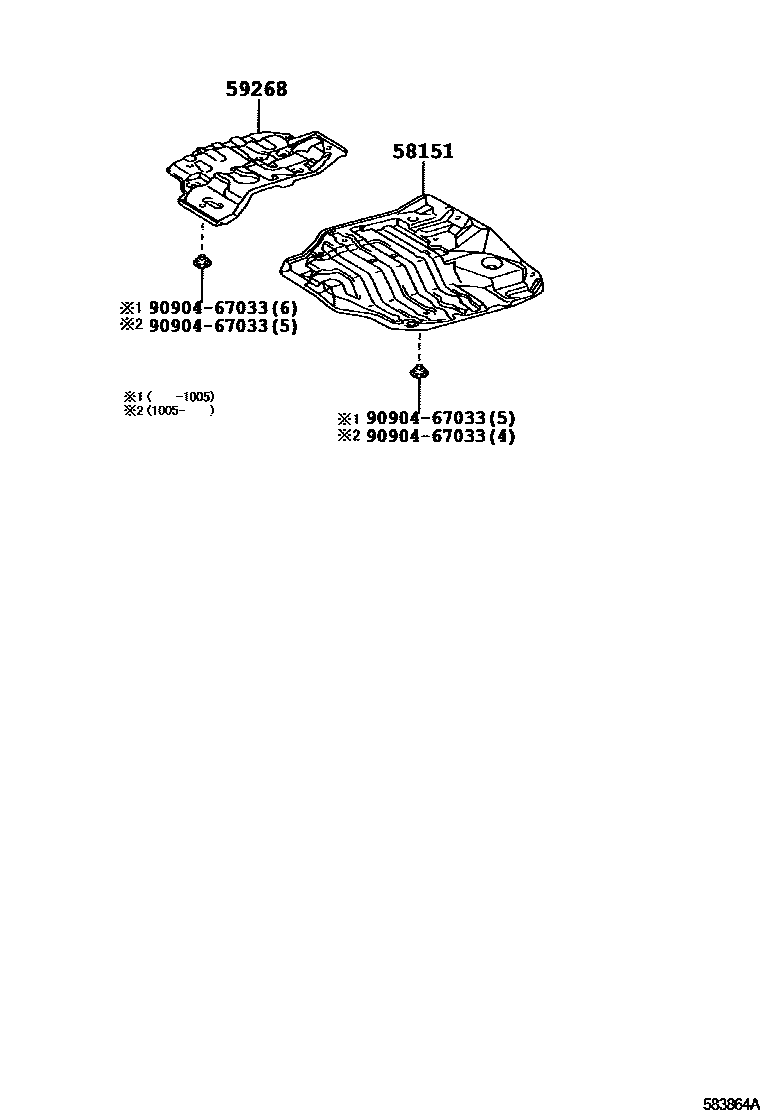

Parts diagram

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-37012i200108-200202

main58151-37013i200202-200307

main58151-37014i200307-200310

main58151-37015i200310-200407

main58151-37016i200408-200603

main58151-37017i200604-200707

main58151-37021i200107-200603

main58151-37022i200604-201101

main58151-37023i201102-201308

main58151-37024i201309-202001

main58151-37025i202002

main58151-37130i200708-201012

main58151-37131i201101-201701

main58151-37132i201702-201906

main58151-37133i201907-202111

59268INSULATOR, ENGINE SUB COVER

main59268-25030i200408-200603

main59268-25031i200604-201012

main59268-37051i200107-200602

main59268-37052i200602-201101

main59268-37053i201102

main59268-37060i200107-200206

main59268-37061i200206-200401

main59268-37062i200402-200407

main59268-37100i201101-202001

main59268-37101i202002

9090467033

main90904-67033

3 parts on this diagram · 2 diagrams in section

FLOOR INSULATOR for Toyota DYNA

This section contains 4 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota DYNA. Key components include: INSULATOR, FRONT FLOOR HEAT, NO.1, INSULATOR, ENGINE SERVICE HOLE COVER MAIN, INSULATOR, ENGINE SUB COVER.
