Toyota DYNA — EXHAUST GAS RECIRCULATION SYSTEM

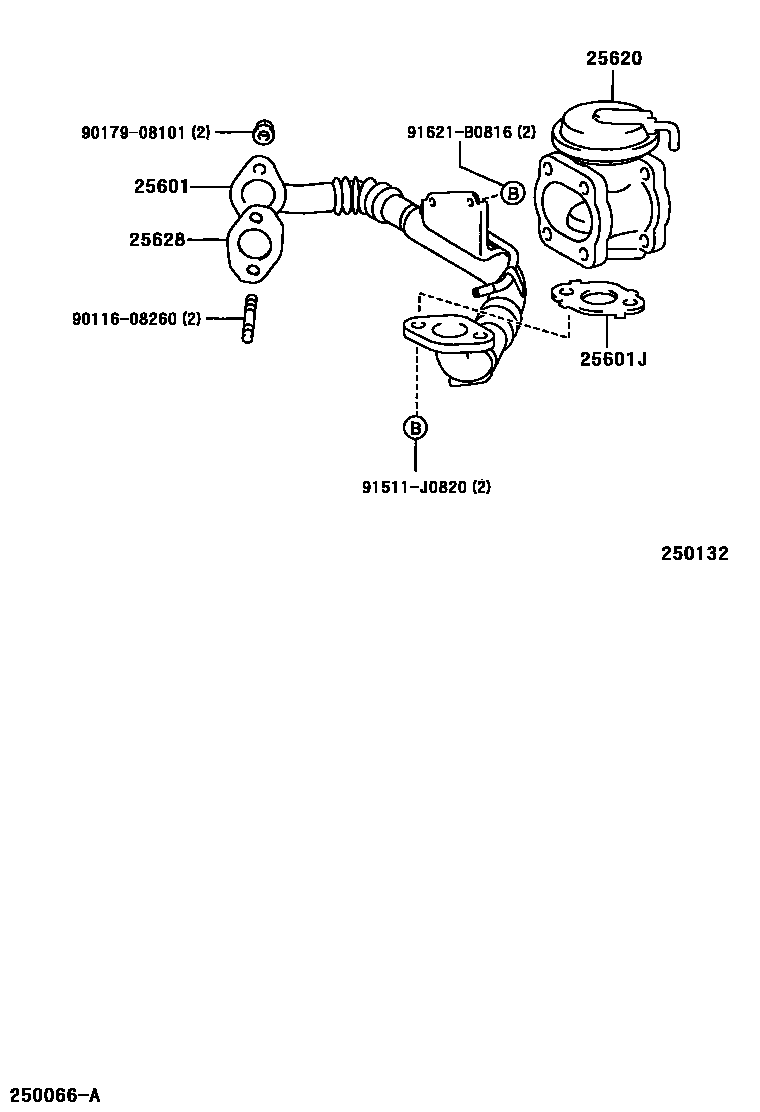

Parts diagram

25601PIPE SUB-ASSY, EGR, NO.1

main25601-58030i200411-200701

main25601-78010i200304-200802

25601JGASKET(FOR EGR PIPE, NO.1)

main25634-58010i200411-200701

25620VALVE ASSY, EGR

main25620-58040i200411-200701

main25620-78022i200608-200708

main25620-78043i200304-200802

main25620-78060i200701-200910

main25620-78061i200910-201012

main25620-78062i201012

25628GASKET, EGR INLET

main17173-78030i200304-200802

main25628-58010i200411-200701

9011608260

main90116-08260

9017908101

main90179-08101

91511J0820

main91511-J0820

91621B0816

main91621-B0816

8 parts on this diagram · 5 diagrams in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota DYNA

This section contains 38 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota DYNA. Key components include: RADIATOR & WATER OUTLET, PIPE SUB-ASSY, WATER BY-PASS, MANIFOLD, INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1, PIPE SUB-ASSY, EGR, NO.1.
