Toyota DYNA — EXHAUST GAS RECIRCULATION SYSTEM

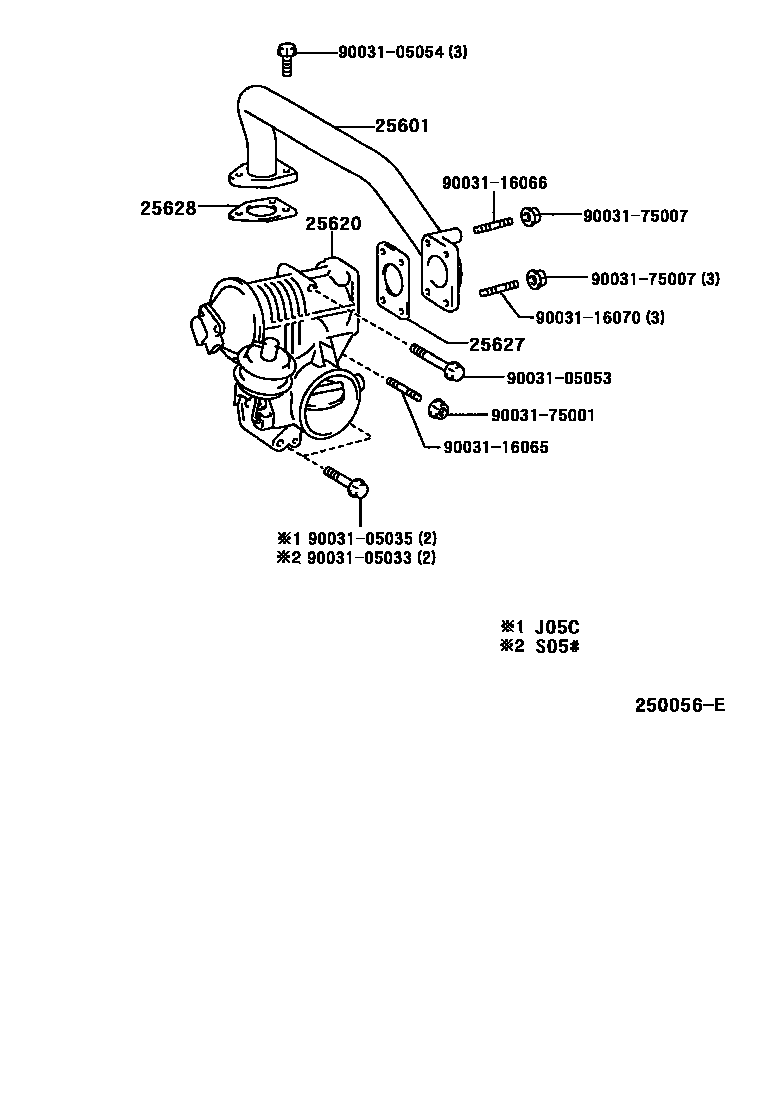

Parts diagram

25601PIPE SUB-ASSY, EGR, NO.1

main25601-78010i200010-200206

25620VALVE ASSY, EGR

main25620-78041i200010-200206

25627GASKET, EGR VALVE

main25627-78010i200010-200206

25628GASKET, EGR INLET

main17173-78030i200010-200206

9003105033

main90031-05033

9003105035

main90031-05035

9003105053

main90031-05053

9003105054

main90031-05054

9003116065

main90031-16065

9003116066

main90031-16066

9003116070

main90031-16070

9003175001

main90031-75001

9003175007

main90031-75007

13 parts on this diagram · 1 diagram in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota DYNA

This section contains 13 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota DYNA. Key components include: PIPE SUB-ASSY, EGR, NO.1, VALVE ASSY, EGR, GASKET, EGR VALVE, GASKET, EGR INLET.
