Toyota DYNA — EXHAUST GAS RECIRCULATION SYSTEM

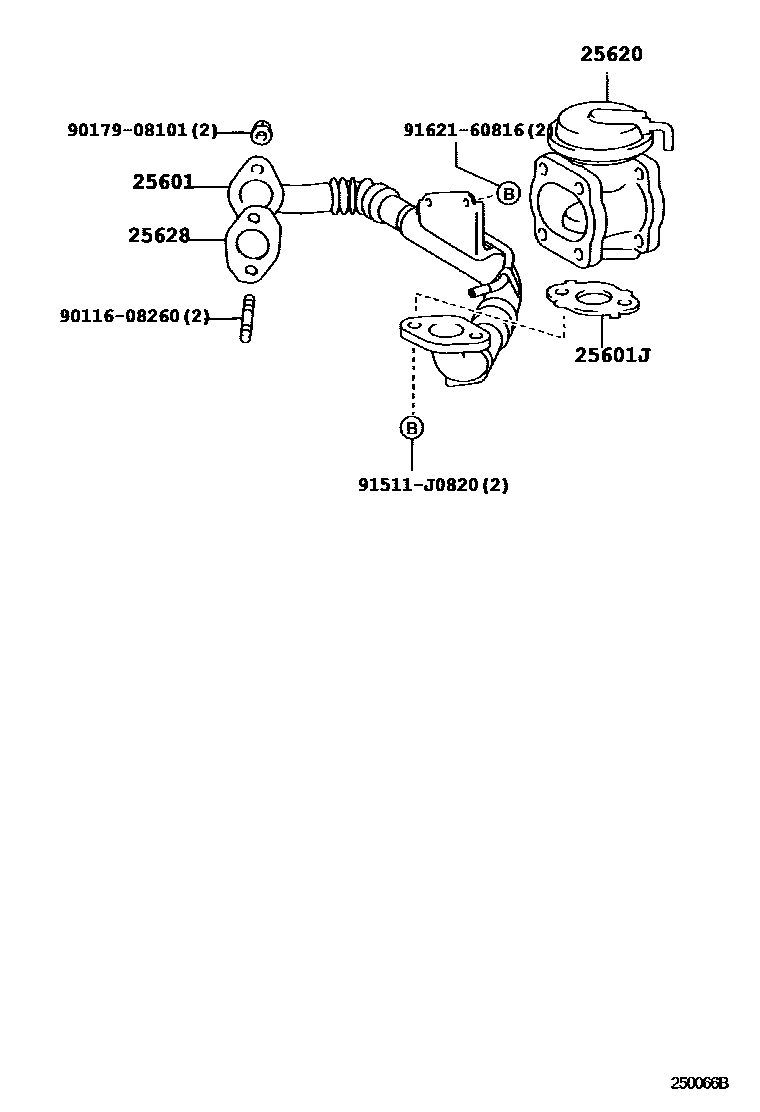

Parts diagram

25601PIPE SUB-ASSY, EGR, NO.1

main25601-58030i199907-200212

main25601-78010i200010-200206

25601JGASKET(FOR EGR PIPE, NO.1)

main25634-58010i199907-200212

25620VALVE ASSY, EGR

main25620-58040i199907-200212

main25620-78041i200010-200206

25628GASKET, EGR INLET

main17173-78030i200010-200206

main25628-58010i199907-200212

9011608260

main90116-08260

9017908101

main90179-08101

91511J0820

main91511-J0820

9162160816

main91621-60816

8 parts on this diagram · 2 diagrams in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota DYNA

This section contains 17 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota DYNA. Key components include: PIPE SUB-ASSY, EGR, NO.1, GASKET(FOR EGR PIPE, NO.1), VALVE ASSY, EGR, GASKET, EGR VALVE, GASKET, EGR INLET.
