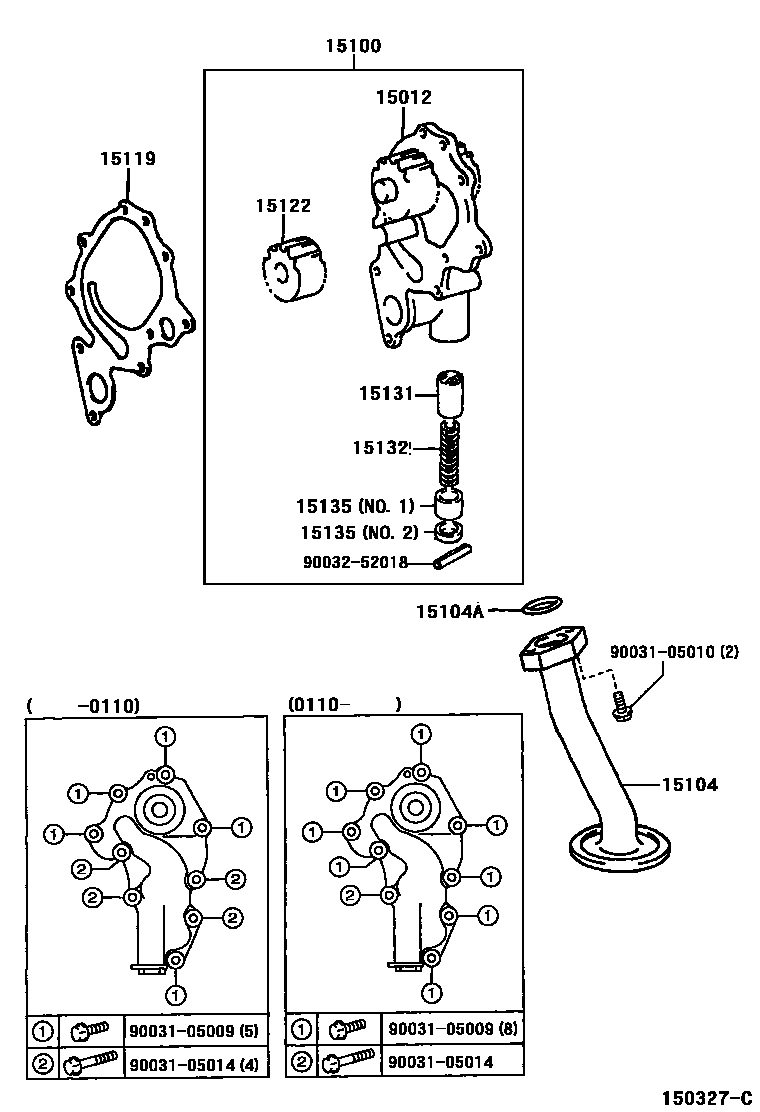

Toyota DYNA — ENGINE OIL PUMP

15012COVER SUB-ASSY, OIL PUMP

main15012-89103i200010-200110

main15012-89104i200110-200206

15100PUMP ASSY, OIL

main15110-89105i200010-200110

main15110-89106i200110-200206

15104STRAINER SUB-ASSY, OIL

main15107-78040i200010-200206

15104ARING, O(FOR OIL STRAINER)

main90033-01046i200010-200206

15119GASKET, OIL PUMP COVER

main15119-89101i200010-200206

15122GEAR, OIL PUMP DRIVEN

main15122-89103i200010-200110

main15122-89105i200110-200206

15131VALVE, OIL PUMP RELIEF

main15131-89102i200010-200206

15132SPRING, OIL PUMP RELIEF VALVE

main15132-78010i200010-200206

15135RETAINER, OIL PUMP RELIEF VALVE

main15165-78010i200010-200206

NO.1

main15165-78020i200010-200206

NO.2

9003105009

main90031-05009

9003105010

main90031-05010

9003105014

main90031-05014

9003252018

main90032-52018

13 parts on this diagram · 1 diagram in section

ENGINE OIL PUMP for Toyota DYNA

This section contains 13 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota DYNA. Key components include: COVER SUB-ASSY, OIL PUMP, PUMP ASSY, OIL, STRAINER SUB-ASSY, OIL, RING, O(FOR OIL STRAINER), GASKET, OIL PUMP COVER.
