Toyota DYNA — ENGINE OIL PUMP

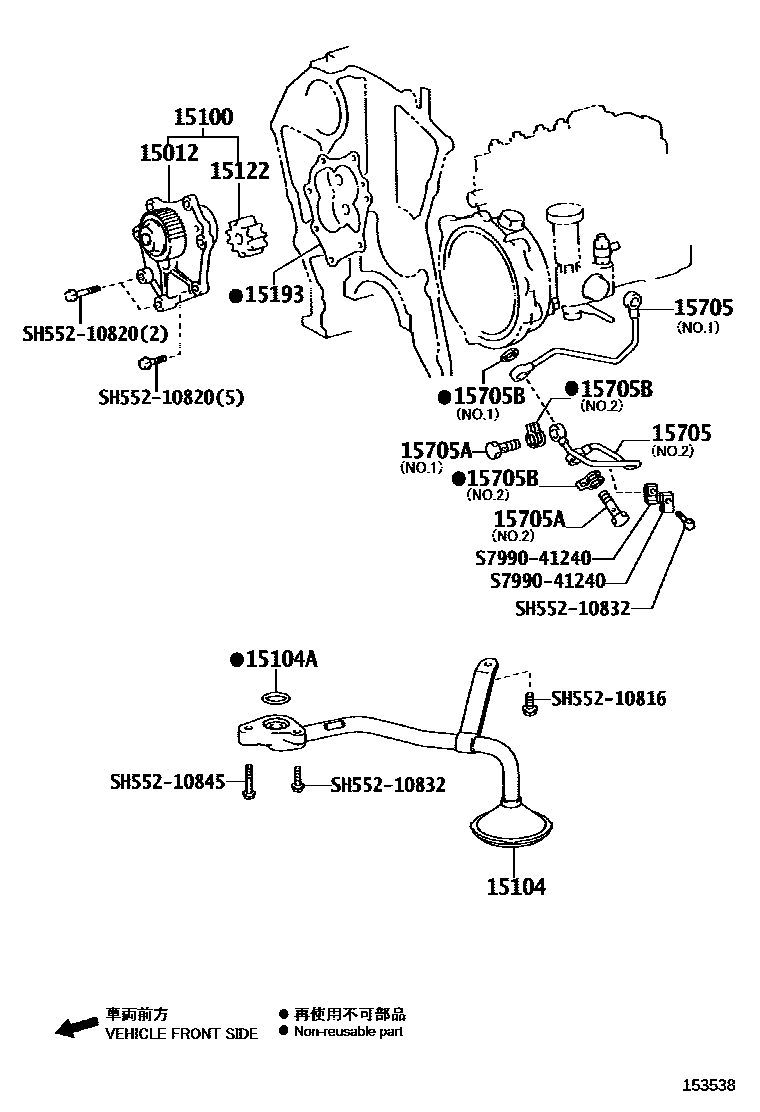

Parts diagram
15012COVER SUB-ASSY, OIL PUMP
main15012-E0120i201107-201611
main15012-E0121i201612-202005
15100PUMP ASSY, OIL
main15110-E0320i201107-201611
main15110-E0321i201612-202005
15104STRAINER SUB-ASSY, OIL
main15104-E0110i201605-202005
main15104-E0120i201107-202005
15104ARING, O(FOR OIL STRAINER)
mainSN74100213i201107-202005
15122GEAR, OIL PUMP DRIVEN
main15122-E0110i201107-202005
15193GASKET, OIL PUMP
mainS151191121i201107-202005
15705PIPE SUB-ASSY, OIL, INJECTION PUMP INLET
main29601-E0040i201107-202005
NO.2
mainS157071730i201107-202005
NO.1
mainS157732300i201107-202005
NO.1
mainS157732310i201107-202005
NO.2
15705AUNION(FOR INJECTION PUMP INLET PIPE)
mainSZ40110009i201107-202005
NO.2
mainSZ40110010i201107-202005
NO.1
15705BGASKET(FOR INJECTION PUMP INLET PIPE)
mainSZ43010004i201107-202005
NO.1
mainSZ43010011×2i201107-202005
NO.2
S799041240CLIP SUB-ASSY
mainS7990-41240
SH55210816
mainSH552-10816
SH55210820
mainSH552-10820
SH55210832
mainSH552-10832
SH55210845
mainSH552-10845

14 parts on this diagram · 3 diagrams in section

ENGINE OIL PUMP for Toyota DYNA

This section contains 15 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota DYNA. Key components include: COVER SUB-ASSY, OIL PUMP, PUMP ASSY, OIL, STRAINER SUB-ASSY, OIL, RING, O(FOR OIL STRAINER), GASKET, OIL PUMP COVER.
