Toyota DYNA — CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
O/S 0.250
O/S 0.250
11702BEARING SET, CRANKSHAFT
STD
U/S 0.25
U/S 0.50
U/S 0.75
U/S 1.00
13011RING SET, PISTON
STD
STD
STD
1302CAMSHAFT & VALVE
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
STD
U/S 0.25
U/S 0.50
U/S 0.75
U/S 1.00
13211PISTON
13251PIN, PISTON
13265BOLT, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=24,OD=10
L=11.9,OD=18
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
13453GEAR, FLYWHEEL RING
13471PULLEY, CRANKSHAFT
13471FPIN, STRAIGHT(FOR CRANKSHAFT PULLEY)
13508AGEAR SUB-ASSY, IDLE
13508CGEAR SUB-ASSY, IDLE, NO.2
13508GGEAR SUB-ASSY, IDLE, NO.3
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13572PLATE, IDLE GEAR THRUST
NO.1
NO.2
NO.3
13581SHAFT, IDLE GEAR, NO.1
NO.1
NO.2
NO.3
9003363032
main90033-63032
9003801017
main90038-01017
9003801020
main90038-01020
9003801022
main90038-01022

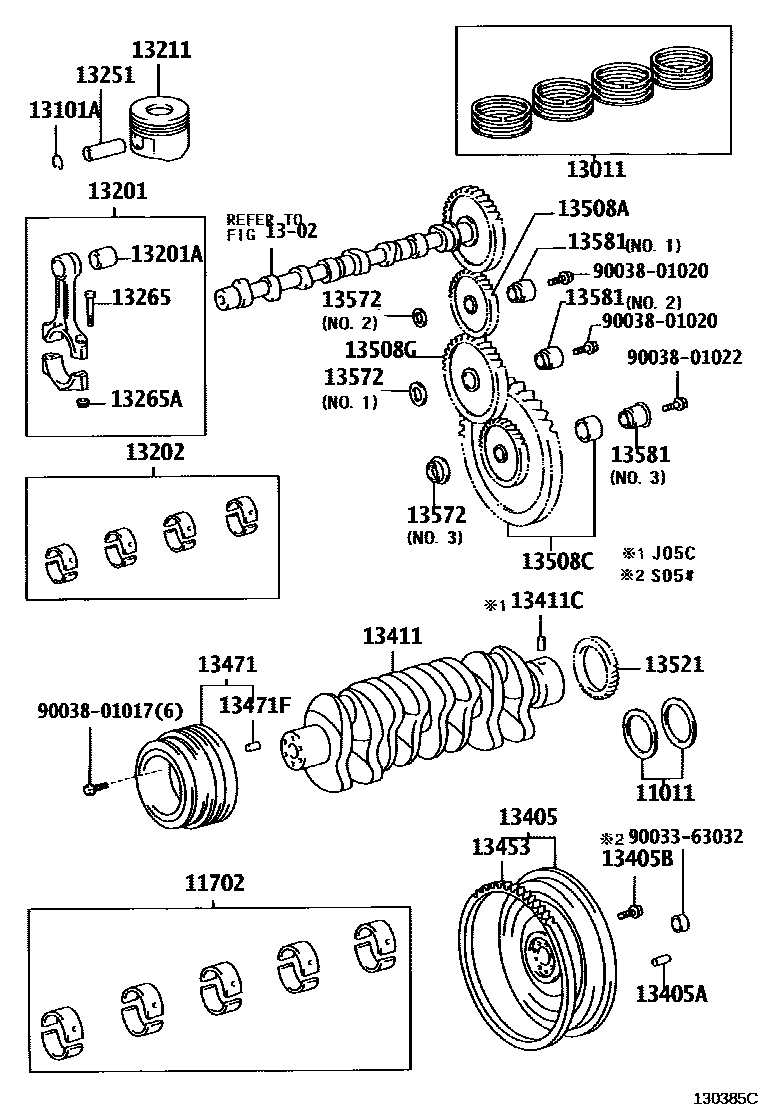

30 parts on this diagram · 1 diagram in section
CRANKSHAFT & PISTON for Toyota DYNA
This section contains 30 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota DYNA. Key components include: WASHER SET, CRANKSHAFT THRUST, BEARING SET, CRANKSHAFT, RING SET, PISTON, CAMSHAFT & VALVE, RING, HOLE SNAP(FOR PISTON PIN).
