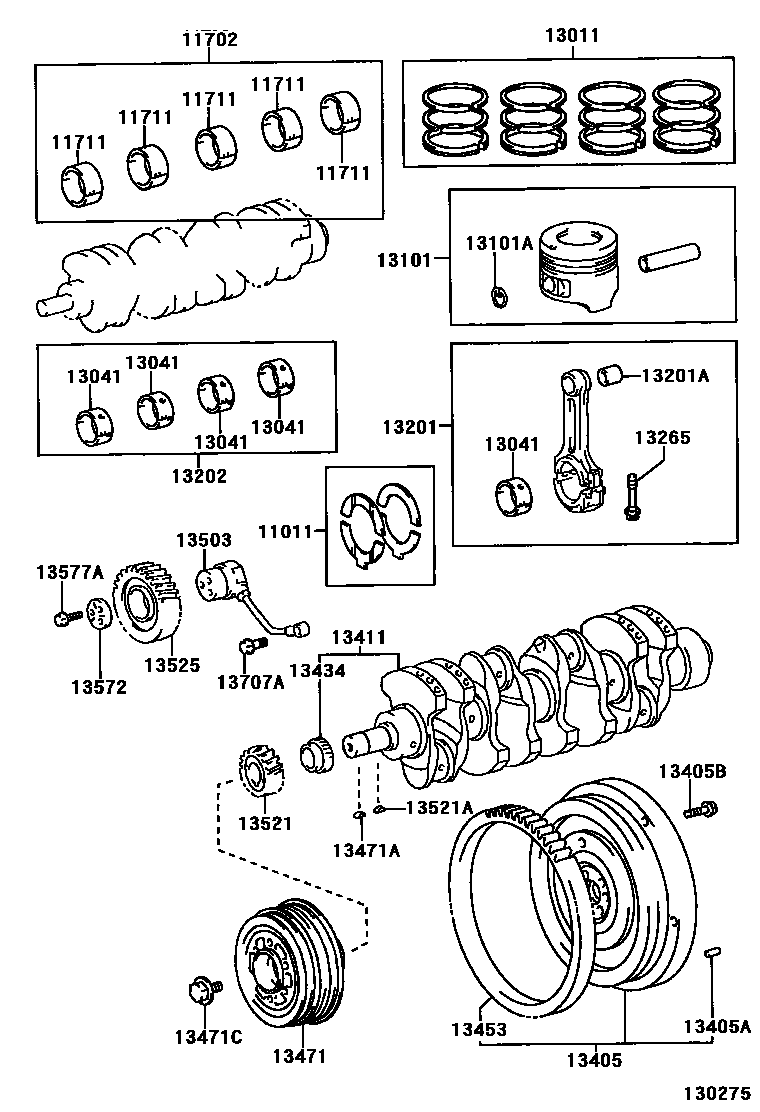

Toyota DYNA — CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
O/S 0.125
O/S 0.250
O/S 0.250
11702BEARING SET, CRANKSHAFT
STD
U/S 0.25
U/S 0.25
U/S 0.50
U/S 0.50
U/S 0.75
U/S 1.00
U/S 1.00
11711BEARING, CRANKSHAFT
REFER TO REPAIR MANUAL,MARK 1
REFER TO REPAIR MANUAL,MARK 2
13011RING SET, PISTON
STD
STD
STD
O/S 0.50
O/S 0.75
O/S 1.00
13041BEARING, CONNECTING ROD
REFER TO REPAIR MANUAL,MARK 1
REFER TO REPAIR MANUAL,MARK 2
13101PISTON SUB-ASSY, W/PIN
STD,MARK 1,REFER REPAIR MANUAL
STD,MARK 2,REFER REPAIR MANUAL
STD,MARK 3,REFER REPAIR MANUAL
O/S 0.50
O/S 0.75
O/S 1.00
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
STD
U/S 0.25
U/S 0.25
U/S 0.50
U/S 0.50
U/S 0.75
U/S 1.00
U/S 1.00
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=24,OD=10
L=22,OD=10
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
13434SPLINE, OIL PUMP DRIVE
13453GEAR, FLYWHEEL RING
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13503SHAFT SUB-ASSY, IDLE GEAR
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13525GEAR, IDLE, NO.1
13572PLATE, IDLE GEAR THRUST
NO.1
NO.2
NO.3
13577ABOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)
13707AUNION(FOR OIL PIPE, NO.1)
27 parts on this diagram · 2 diagrams in section
CRANKSHAFT & PISTON for Toyota DYNA
This section contains 40 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota DYNA. Key components include: WASHER SET, CRANKSHAFT THRUST, BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, RING SET, PISTON, CAMSHAFT & VALVE.
