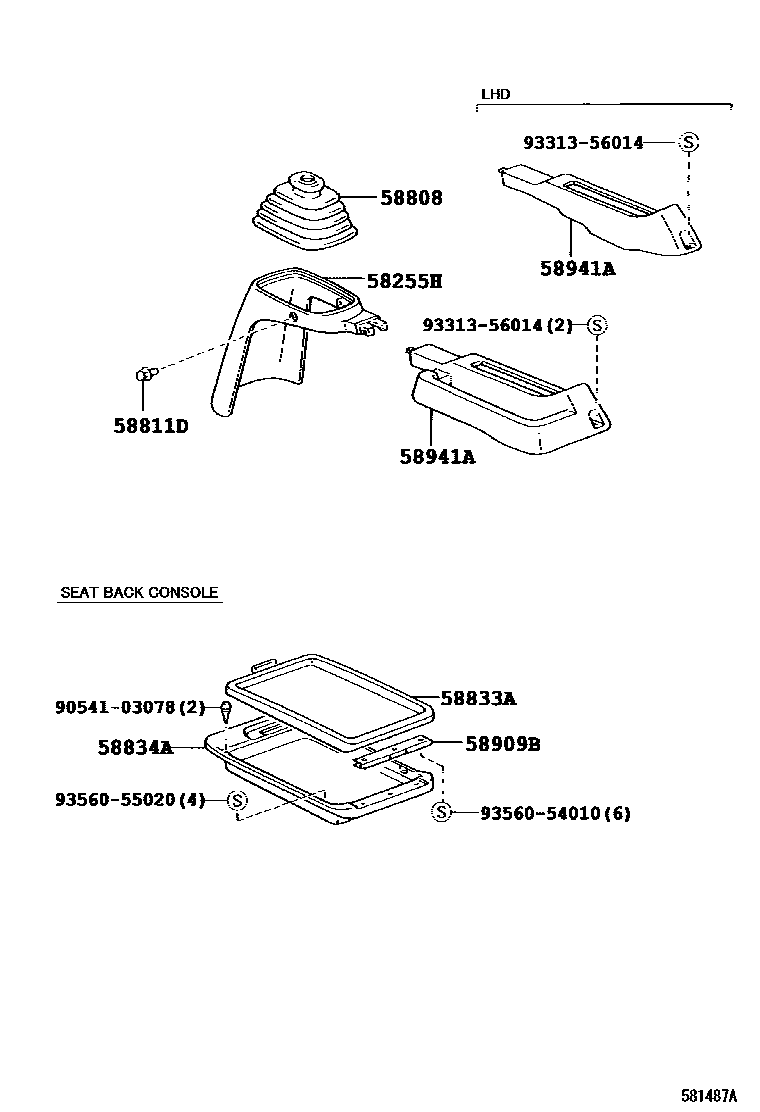

Toyota DYNA — CONSOLE BOX & BRACKET

58255HCOVER, SHIFT LEVER BOOT

main58255-37020-B0iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200110-200610

DK.CHARCOAL,TRIM1#

main58255-37021-B0iWU410..RHD200910-201106

DK.CHARCOAL,TRIM1#

main58255-37060-B0iWU41#,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(DCRTJ,DCRTK,DSL)200610-200909

DK.CHARCOAL,TRIM1#

main58255-37061-B0iWU41#,422,XZU41#,42#,439..LHD200910-201208

DK.CHARCOAL,TRIM1#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-37020-B0iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-200610

DK.CHARCOAL,TRIM1#

main58808-37021-B0iWU41#,422,XZU41#,42#,439200909-201208

DK.CHARCOAL,TRIM1#

58811DCLIP(FOR CONSOLE BOX)

main90467-07191-B0×3iXZU414,424,434..EUR200110-200608

DK.CHARCOAL,TRIM1#

58833ACOVER, CONSOLE, UPPER

main58833-37040-B0iXZU415,425,435200110-200708

MD.CHARCOAL,TRIM1#

main58833-37041-B0iWU41#,422,XZU41#,42#,439200910-201208

MD.CHARCOAL,TRIM1#

58834ACOVER, CONSOLE, LOWER

main58834-37030-B0iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-200610

MD.CHARCOAL,TRIM1#

main58834-37031-B0iWU41#,422,XZU41#,42#,439200910-201208

MD.CHARCOAL,TRIM1#

58909BRETAINER SUB-ASSY, CONSOLE COMPARTMENT

main58909-37020iXZU412,422..6F200110-200802

58941ACOVER, PARKING BRAKE HOLE

main58941-37010-B0iXZU414,424,434..EUR200110-200608

DK.CHARCOAL,TRIM1#

main58941-37011-B0iWU41#,422,XZU41#,42#,439..LHD200910-201208

DK.CHARCOAL,TRIM1#

main58941-37030-B0iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200110-200610

DK.CHARCOAL,TRIM1#

main58941-37060-B0iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201106

DK.CHARCOAL,TRIM1#

9054103078

main90541-03078

9331356014

main93313-56014

9356054010

main93560-54010

9356055020

main93560-55020

11 parts on this diagram · 1 diagram in section
