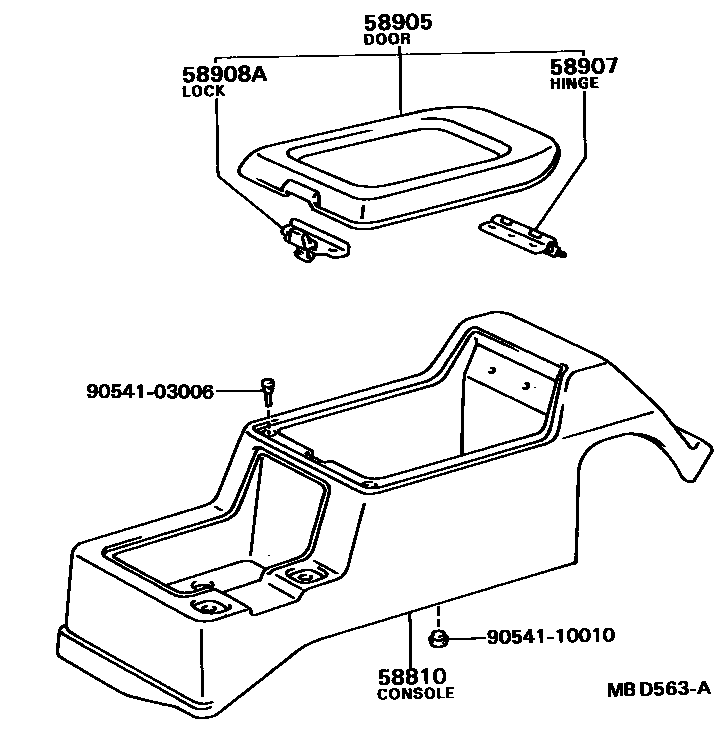

Toyota DYNA — CONSOLE BOX & BRACKET

58810CONSOLE ASSY

main58811-95405iBU40,HU40,50198204-198302

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-95403iBU40,HU40,50198204-198302

sub58905-37010

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-95403iBU40,HU40,50198204-198302

sub58907-37010

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-95406iBU40,HU40,50198204-198302

sub58908-37010

9054103006

main90541-03006

9054110010

main90541-10010

6 parts on this diagram · 1 diagram in section
