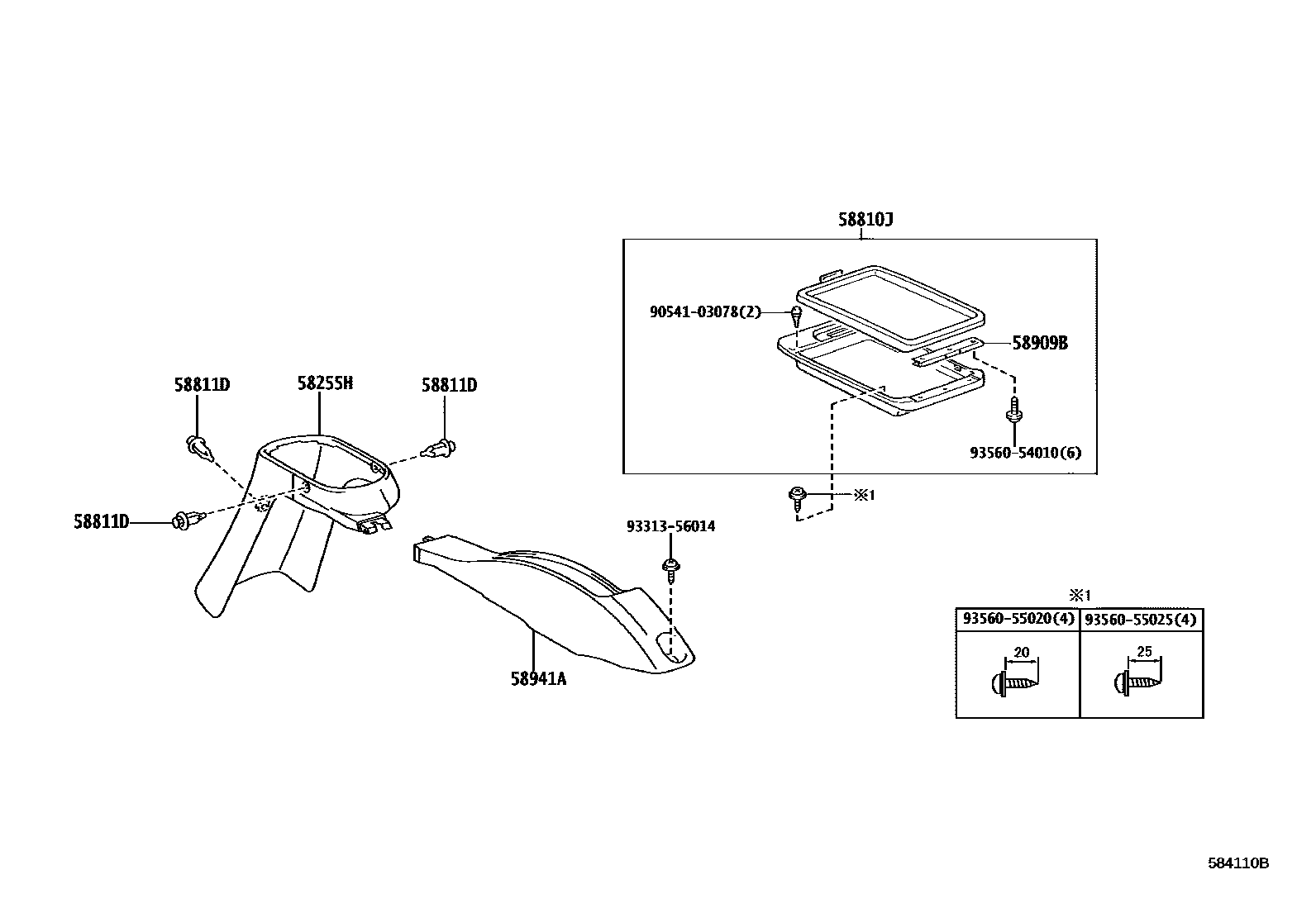

Toyota DYNA — CONSOLE BOX & BRACKET

58255HCOVER, SHIFT LEVER BOOT

main58255-25020-B0iXZU600202408

GRAY,TRIM1#

main58255-37061-B1iXZU600..GEN201911-202408

GRAY,TRIM1#

58810JBOX ASSY, CONSOLE

main58810-37041-B1iXZU600..GCC;WU600,650,XZU650201107-202005

FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE),GRAY,TRIM1#

58811DCLIP(FOR CONSOLE BOX)

main90467-07191-C1×3iXZU600..GCC;WU600,650,XZU650201107-202005

BLACK,TRIM1#

58909BRETAINER SUB-ASSY, CONSOLE COMPARTMENT

main58909-37020iXZU600..GEN201911

FRONT SEAT-*PAS = TWO PERSONS SEAT(SEPARATE)&SEAT BELT WARNING-WITH(DRIVER)

58941ACOVER, PARKING BRAKE HOLE

main58941-37050-B1iWU600,650201107-201207

GRAY,TRIM1#

main58941-37110-B0iWU600,650201208-201505

GRAY,TRIM1#

9054103078

main90541-03078

9331356014

main93313-56014

9356054010

main93560-54010

9356055020

main93560-55020

9356055025

main93560-55025

10 parts on this diagram · 1 diagram in section
