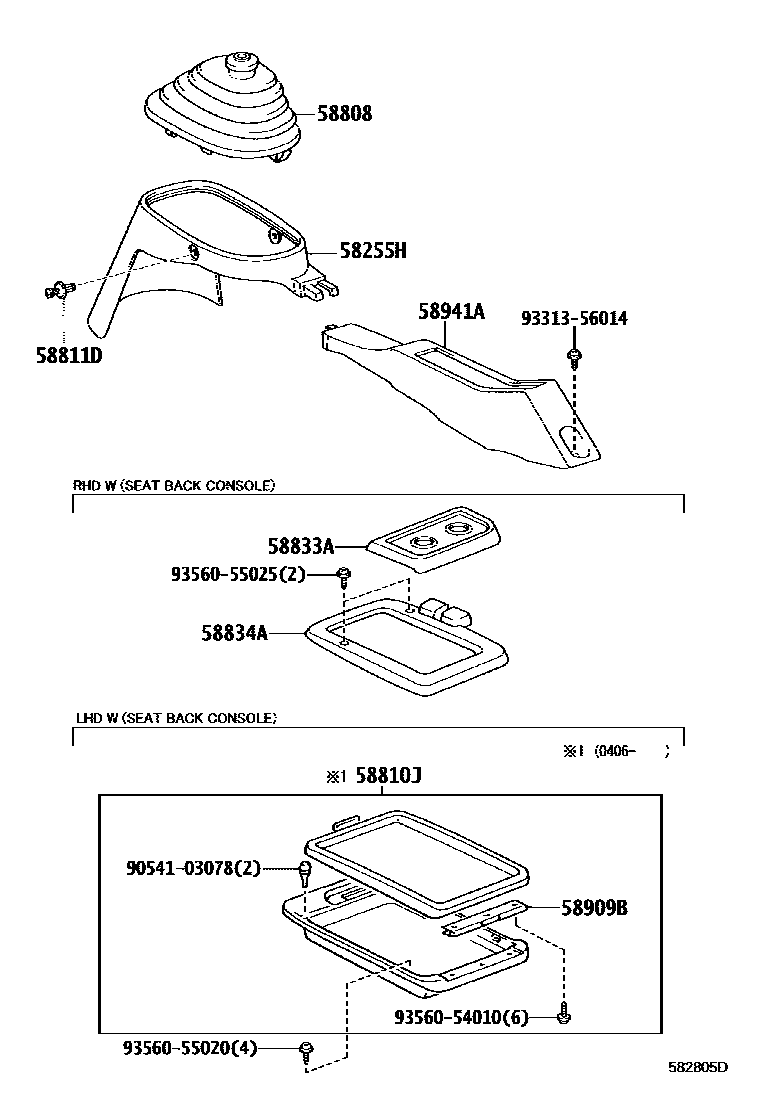

Toyota DYNA — CONSOLE BOX & BRACKET

58255HCOVER, SHIFT LEVER BOOT

main58255-0W010-B0iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

DK.CHARCOAL,TRIM1#

main58255-0W020-B0iWU302,342,352..DCRTP,DCRTR200912

DK.CHARCOAL,TRIM1#

main58255-37020-B0iWU300,340..SA200610-200812

DK.CHARCOAL,TRIM1#

main58255-37021-B0iWU340..RHD200910-201106

DK.CHARCOAL,TRIM1#

main58255-37060-B0iWU30#,34#..LHD200610-200909

DK.CHARCOAL,TRIM1#

main58255-37061-B0iWU30#,34#..LHD200910-201106

DK.CHARCOAL,TRIM1#

main58255-F1010iXZU349..5F;XZU309,359..IV1,IV8202203-202310

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-0W010-B0iWU302,342..DCRTP,DCRTR200912-201707

DK.CHARCOAL,TRIM1#

main58808-37020-B0iBU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW200209-200610

DK.CHARCOAL,TRIM1#

main58808-37021-B0iWU30#,34#..GCC,GEN200909-201106

DK.CHARCOAL,TRIM1#

main58808-F1010-C0iWU302,342,352201707

BLACK,TRIM1#

58810JBOX ASSY, CONSOLE

main58810-37040-B0iBU303,343,WU300,340,XZU300,330,340..LHD200406-200610

MD.CHARCOAL,TRIM1#

main58810-37041-B0iWU30#,34#..LHD200910-201106

MD.CHARCOAL,TRIM1#

58811DCLIP(FOR CONSOLE BOX)

main90467-07191-B0×3iBU303,343,WU300,340,XZU30#,320,330,340,345..ARL,GCC,GEN,TAIW200209-200610

DK.CHARCOAL,TRIM1#

main90467-07191-E4×3iXZU349..6F;XZU309..IV3202203

BROWN,TRIM4#

58833ACOVER, CONSOLE, UPPER

main58839-37010-B0iWU340..RHD200910-201106

MD.CHARCOAL,TRIM1#

main58839-95400-B0iBU303,343,XZU305,345..RHD..(ARL,GEN)200212-200610

MD.CHARCOAL,TRIM1#

58834ACOVER, CONSOLE, LOWER

main58834-25020-B0iWU340..RHD..CBU200610-200908

MD.CHARCOAL,TRIM1#

main58834-25021-B0iWU340..RHD200909-201106

MD.CHARCOAL,TRIM1#

58909BRETAINER SUB-ASSY, CONSOLE COMPARTMENT

main58909-37020iBU303,343,WU300,340,XZU300,320,330,340..LHD200212-200610

58941ACOVER, PARKING BRAKE HOLE

main58941-0W010-B0iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

DK.CHARCOAL,TRIM1#

main58941-0W020-B0iWU302,342,352..DCRTP,DCRTR200912

DK.CHARCOAL,TRIM1#

main58941-37010-B0iBU300,340200212-200312

DK.CHARCOAL,TRIM1#

main58941-37011-B0iWU30#,34#..LHD200910-201106

DK.CHARCOAL,TRIM1#

main58941-37050-B0iWU340..RHD..CBU200610-201106

DK.CHARCOAL,TRIM1#

main58941-F1010iXZU349..5F;XZU309,359..IV8202203-202310

9054103078

main90541-03078

9331356014

main93313-56014

9356054010

main93560-54010

9356055020

main93560-55020

9356055025

main93560-55025

13 parts on this diagram · 1 diagram in section
