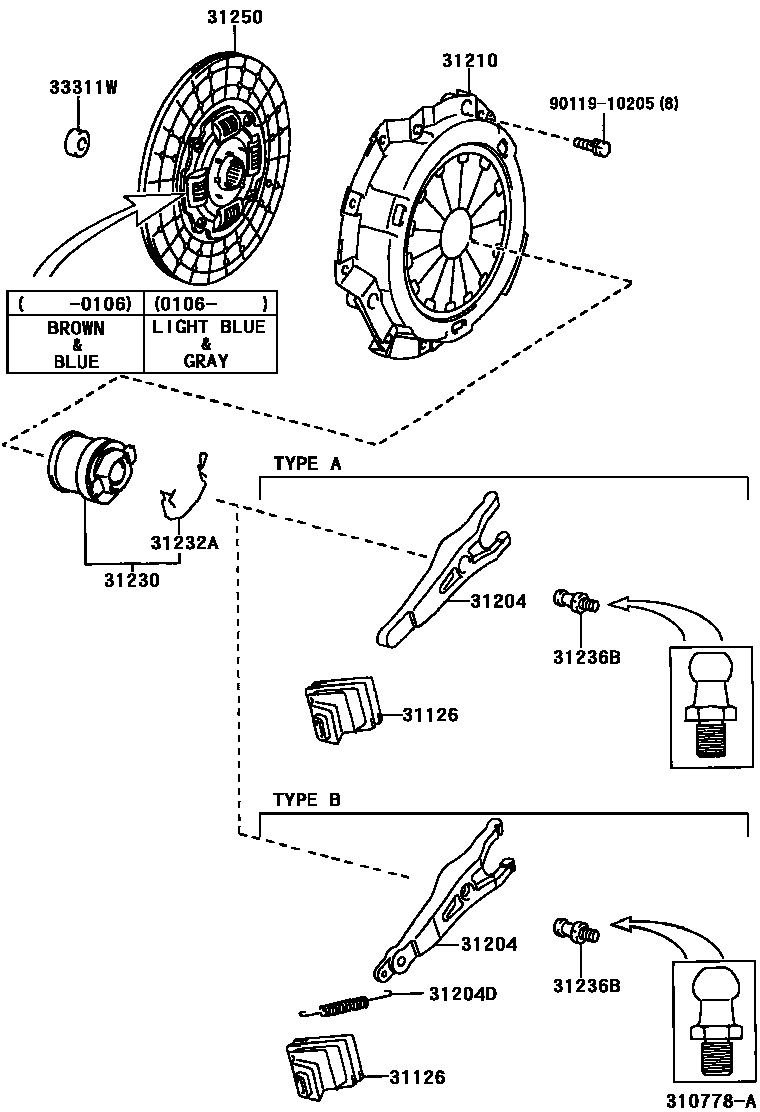

Toyota DYNA — CLUTCH & RELEASE FORK
31126BOOT, CLUTCH RELEASE FORK
31204FORK SUB-ASSY, CLUTCH RELEASE
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
31204DSPRING(FOR CLUTCH RELEASE FORK)
31210COVER ASSY, CLUTCH
31230BEARING ASSY, CLUTCH RELEASE
31232ACLIP, RELEASE BEARING HUB
31236BSUPPORT, RELEASE FORK
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
31250DISC ASSY, CLUTCH
33311WBEARING (FOR INPUT SHAFT)
9011910205
main90119-10205
10 parts on this diagram · 1 diagram in section
CLUTCH & RELEASE FORK for Toyota DYNA
This section contains 10 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota DYNA. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, SPRING(FOR CLUTCH RELEASE FORK), COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE.
