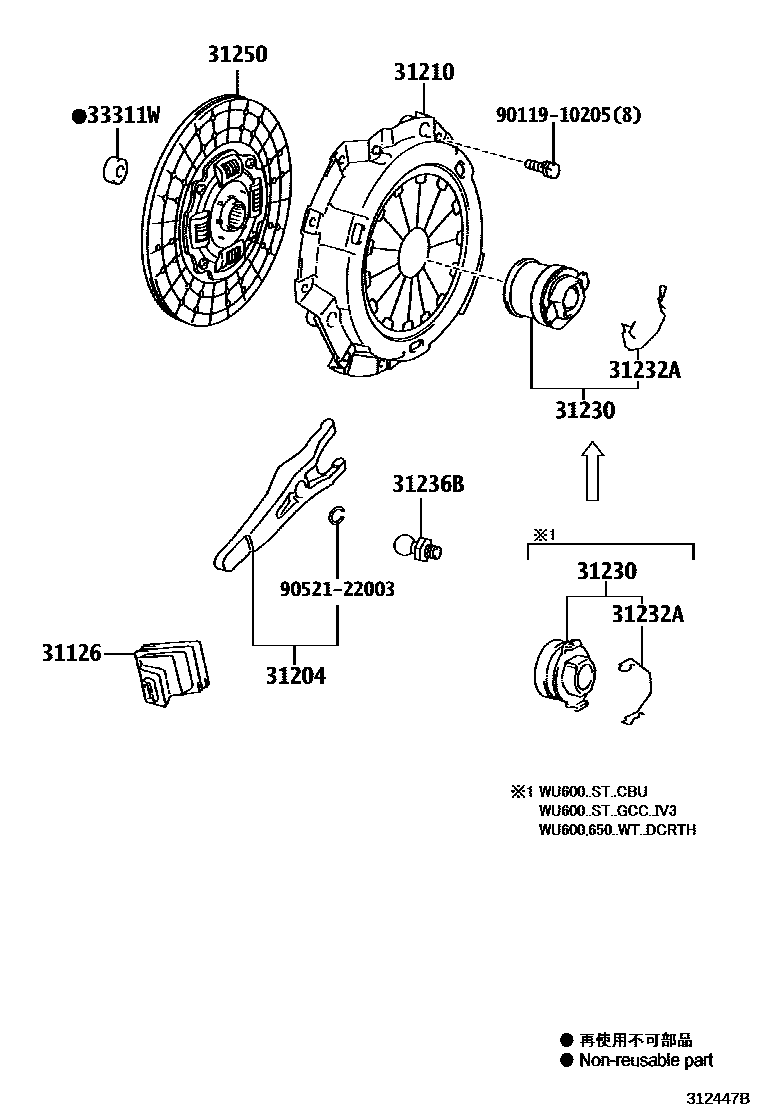

Toyota DYNA — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-36070iXZU600..GCC;WU600,650,XZU650201107-202005

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-37010iWU600..ST..GEN..IV3;WU600,XZU600,650..DCRTJ201107-202005

main31204-37050iWU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH201107-201409

main31204-37051iWU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH201410-202005

31210COVER ASSY, CLUTCH

main31210-36320iWU600..ST..GEN..IV3;WU600,XZU600,650..DCRTJ201107-202005

main31210-37110iWU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH201107-202005

31230BEARING ASSY, CLUTCH RELEASE

main31230-36200iXZU600..GEN201911

main31230-37010iWU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH201107-202005

31232ACLIP, RELEASE BEARING HUB

main31232-36030iWU600..ST..GEN..IV3;WU600,XZU600,650..DCRTJ201107-202005

main31232-37010iWU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH201107-202005

31236BSUPPORT, RELEASE FORK

main31236-36060iXZU600..GCC;WU600,650,XZU650201107-202005

31250DISC ASSY, CLUTCH

main31250-37140iWU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH201107-201511

main31250-37141iWU600..ST..CBU;WU600,650..WT..DCRTH201511-202005

main31250-37170iWU600..ST..GEN..IV3;WU600,XZU600,650..DCRTJ201107-201808

sub31250-37171

main31250-37331iXZU600..GEN201911

main31250-37340iWU600..ST..IV3;WU600,XZU600,650..DCRTJ201808-201911

main31250-37341iWU600..ST..IV3;WU600,XZU600,650..DCRTJ201911-202005

33311WBEARING (FOR INPUT SHAFT)

main90363-17037iXZU600..GCC;WU600,650,XZU650201107-202005

9011910205

main90119-10205

9052122003

main90521-22003

10 parts on this diagram · 1 diagram in section
