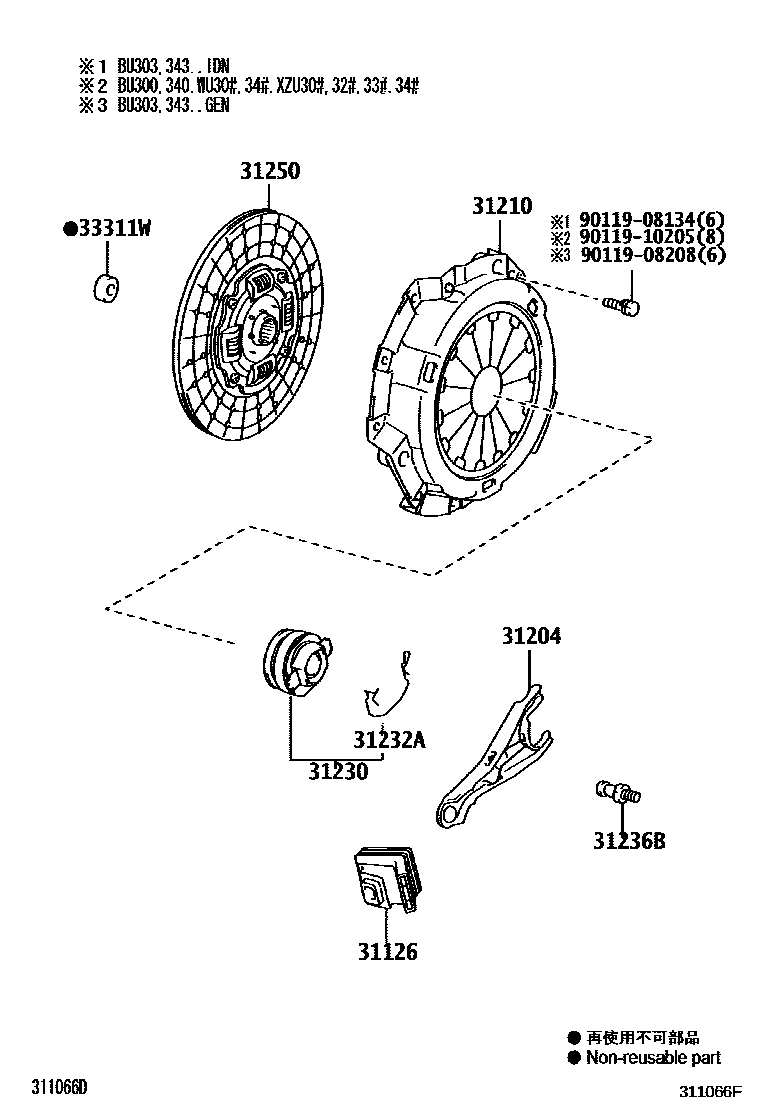

Toyota DYNA — CLUTCH & RELEASE FORK
31126BOOT, CLUTCH RELEASE FORK
31204FORK SUB-ASSY, CLUTCH RELEASE
31210COVER ASSY, CLUTCH
W(FLYWHEEL P.T.O)
31230BEARING ASSY, CLUTCH RELEASE
W(FLYWHEEL P.T.O)
31232ACLIP, RELEASE BEARING HUB
31236BSUPPORT, RELEASE FORK
31250DISC ASSY, CLUTCH
W(FLYWHEEL P.T.O)
33311WBEARING (FOR INPUT SHAFT)
9011908134
main90119-08134
9011908208
main90119-08208
9011910205
main90119-10205
11 parts on this diagram · 2 diagrams in section
CLUTCH & RELEASE FORK for Toyota DYNA
This section contains 12 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota DYNA. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, CLIP, RELEASE BEARING HUB.
