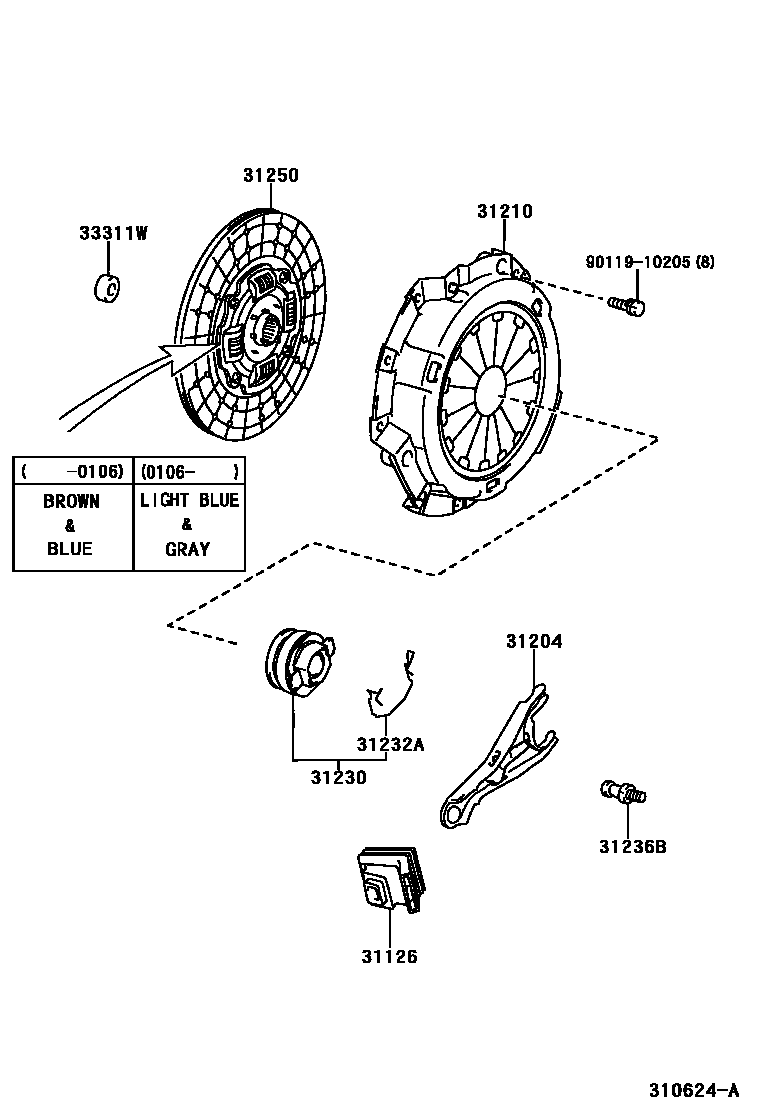

Toyota DYNA — CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-36070iXZU30#,320,330,34#199907-200212

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-36142iXZU300,320,330,340199907-200212

main31204-37010iXZU302,307,342200010-200206

TYPE A:REFER TO ILLUSTRATION

main31204-37020iXZU342200010-200206

TYPE B:REFER TO ILLUSTRATION

sub31204-37021

31210COVER ASSY, CLUTCH

main31210-36240iXZU302,307,342200010-200108

sub31210-36320

main31210-36250iXZU300,320,330,340199907-200206

sub31210-36251

main31210-37100iXZU300,320,330,340200206-200212

sub31210-37120

31230BEARING ASSY, CLUTCH RELEASE

main31230-36200iXZU302,307,342200010-200206

main31230-36210iXZU300,320,330,340199907-200212

31232ACLIP, RELEASE BEARING HUB

main31232-36030iXZU30#,320,330,34#199907-200212

31236BSUPPORT, RELEASE FORK

main31236-36060iXZU300,320,330,340199907-200212

main31236-37030iXZU342200010-200206

TYPE B:REFER TO ILLUSTRATION

31250DISC ASSY, CLUTCH

main31250-37090iXZU300,320,330,340199907-200106

main31250-37091iXZU300,320,330,340200106-200110

main31250-37130iXZU300,320,330,340200110-200206

main31250-37131iXZU300,320,330,340200206-200212

sub31250-37132

33311WBEARING (FOR INPUT SHAFT)

main90033-63032iXZU302,307,342200010-200206

subSZ371-20022

main90363-12018iXZU300,320,330,340199907-200212

9011910205

main90119-10205

9 parts on this diagram · 2 diagrams in section
