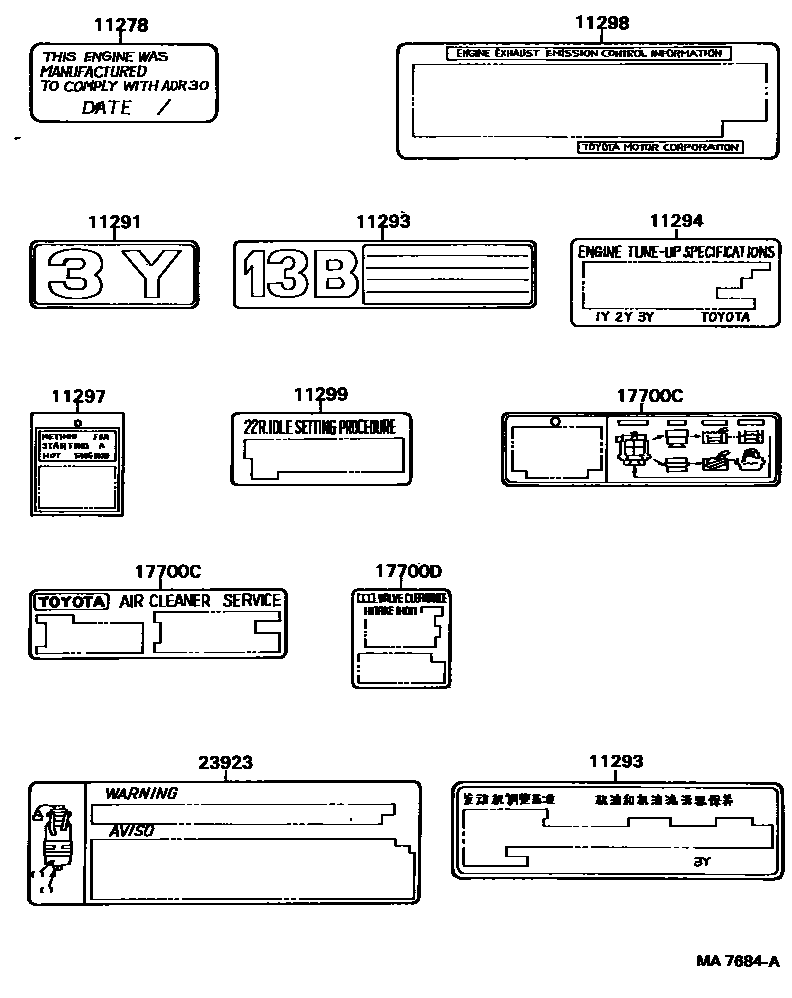

Toyota DYNA — CAUTION PLATE & NAME PLATE (ENGINE)

11278PLATE, ENGINE EMISSION IDENTIFICATION

11291PLATE, ENGINE NAME

11293PLATE, ENGINE CAUTION & ENGINE NAME

main11293-56040iB..BU60,63,70,75,80198409-198708

main11293-56060i11B..BU61,65,76,81,86198501-198708

main11293-56070i11B..BU61,76,81,86..GEN..(CBU,IV3)198501-198708

W/HAC

main11293-58030i13B..BU62,82,85198409-198708

main11293-58060i13B..BU85..GEN198501-198708

W/HAC

main11294-56020iB..BU60..LHD..TW1;B..BU60,80..LHD..WT198508-198708

CHINA SPEC

main11294-58010i13B..BU85..LHD198508-198708

CHINA SPEC

11294PLATE, ENGINE CAUTION, NO.2

main11278-54010iB,11B,13B..BU6#,85..ARL198409-198708

11297PLATE, ENGINE CAUTION, NO.3

11298PLATE, EMISSION CONTROL INFORMATION

11299PLATE, IDLE ADJUSTING CAUTION

17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)

main17791-56190iB,13B..BU60,80,85..LHD..WT..GEN198508-198510

CHINA SPEC,OIL BATH

main17791-56200iB..BU60..LHD..TW1;B,13B..BU60,80,85..LHD..WT..GEN198508-198708

CHINA SPEC

main17791-56210iB,11B,13B..BU60,61,75,76,80,81,82,85..T3..(GEN,GHD)198510-198708

OIL BATH

main17791-64020i13B..BU85..CBU,IV3198409-198708

main90917-07086iB,11B,13B..BU60,61,75,76,8#..T3..(GEN,GHD)198409-198510

OIL BATH

17700DPLATE, ENGINE CAUTION

23923PLATE, FUEL SEDIMENTER CAUTION

main23923-56010iB,11B,13B..BU6#,7#,8#198409-198708

main23923-56020iB..BU60..LHD..TW1;B,13B..BU60,80,85..LHD..WT..GEN198508-198708

CHINA SPEC

10 parts on this diagram · 1 diagram in section
