Toyota DYNA — CARBURETOR ASSEMBLY

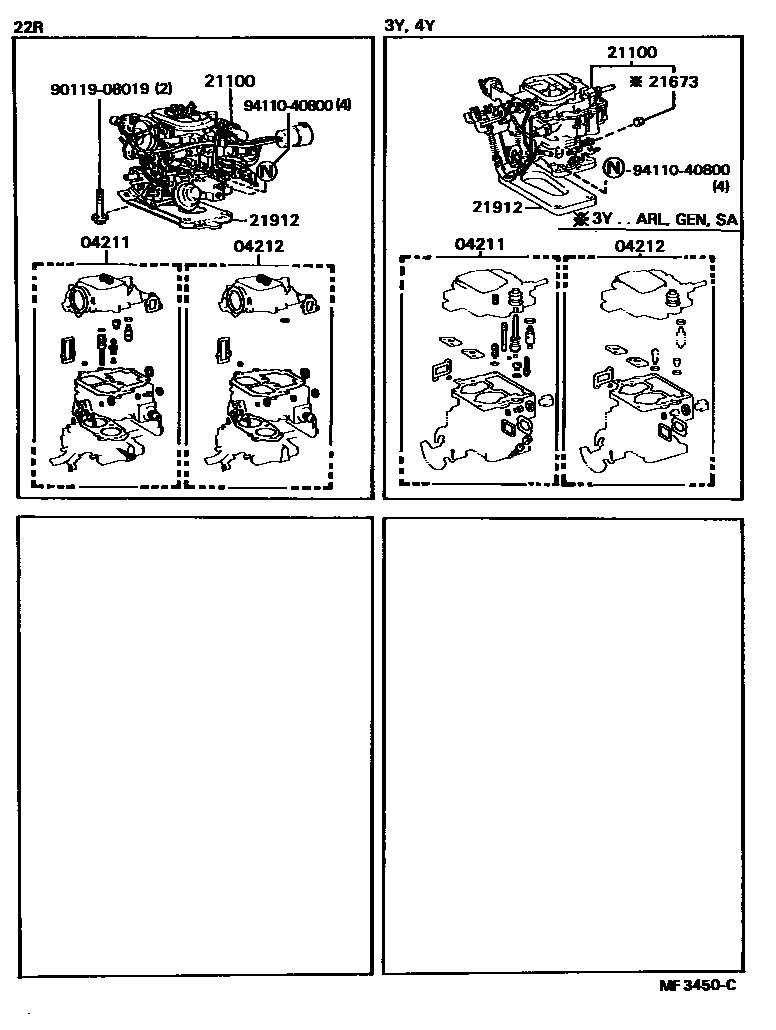

Parts diagram

04211CARBURETOR KIT

main04211-35050i198409-198708

main04211-73050i198409-198608

main04211-73060i198409-198608

main04211-73170i198608-198708

04212GASKET KIT, CARBURETOR

main04212-37060i198409-198708

main04212-71030i198409-198608

main04212-73050i198608-198708

21100CARBURETOR ASSY

main21100-35340i198409-198708

main21100-73120i198409-198608

main21100-73130i198409-198608

main21100-73260i198608-198708

21673CAP, IDLE LIMIT

main21673-71030i198409-198608

21912INSULATOR, CARBURETOR HEAT

main21912-37030i198409-198708

main21912-71020i198409-198708

9011908019

main90119-08019

9411040800

main94110-40800

7 parts on this diagram · 1 diagram in section

CARBURETOR ASSEMBLY for Toyota DYNA

This section contains 7 genuine Toyota parts for the CARBURETOR ASSEMBLY system of the Toyota DYNA. Key components include: CARBURETOR KIT, GASKET KIT, CARBURETOR, CARBURETOR ASSY, CAP, IDLE LIMIT, INSULATOR, CARBURETOR HEAT.
