Toyota DYNA — CARBURETOR ASSEMBLY

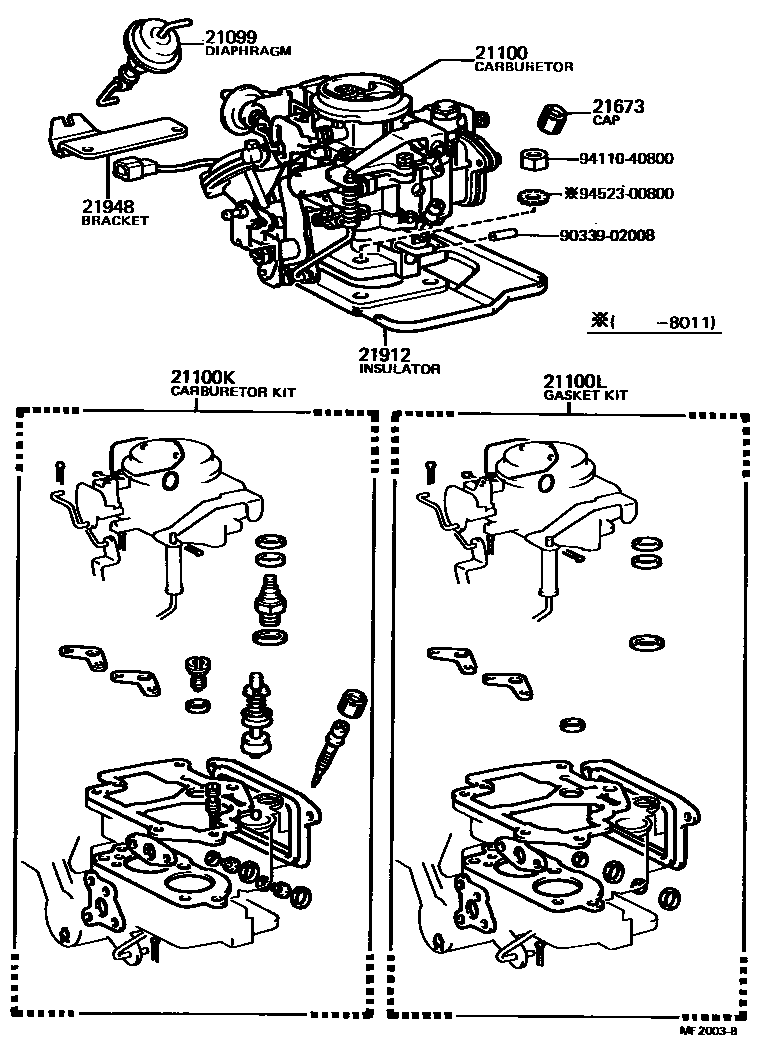

Parts diagram

21099DIAPHRAGM SUB-ASSY, THROTTLE OPENER

main21096-44010i198204-198408

main21099-44010i197904-197905

main21099-44011i197906-198204

main21099-44020i197804-197905

21100CARBURETOR ASSY

main21100-44260i197804-197905

main21100-44261i197905-198005

main21100-44262i198005-198204

main21100-44270i197804-197904

main21100-44280i197708-197904

CHINA SPEC

main21100-44281i197904-198104

CHINA SPEC

main21100-44300i197904-198204

main21100-44301i198204-198408

main21100-44321i198204-198408

CHINA SPEC

main21100-44340i198204-198408

main21100-44370i197904-198204

main21100-44380i198204-198408

21100KCARBURETOR KIT

main04211-44090i197708-198005

main04211-44100i198104-198204

CHINA SPEC

main04211-44110i197904-198408

main04211-44120i198204-198408

main04211-44130i198204-198408

CHINA SPEC

21100LGASKET KIT, CARBURETOR

main04212-44040i197708-198408

21673CAP, IDLE LIMIT

main21673-38020i197708-198408

21912INSULATOR, CARBURETOR HEAT

main21912-44030i197708-198204

main21912-44040i198204-198408

21948BRACKET, THROTTLE OPENER

main21948-44010i197804-197905

9033902008

main90339-02008

9411040800

main94110-40800

9452300800

main94523-00800

10 parts on this diagram · 1 diagram in section

CARBURETOR ASSEMBLY for Toyota DYNA

This section contains 10 genuine Toyota parts for the CARBURETOR ASSEMBLY system of the Toyota DYNA. Key components include: DIAPHRAGM SUB-ASSY, THROTTLE OPENER, CARBURETOR ASSY, CARBURETOR KIT, GASKET KIT, CARBURETOR, CAP, IDLE LIMIT.
