Toyota DYNA — AUTOMATIC TIMER

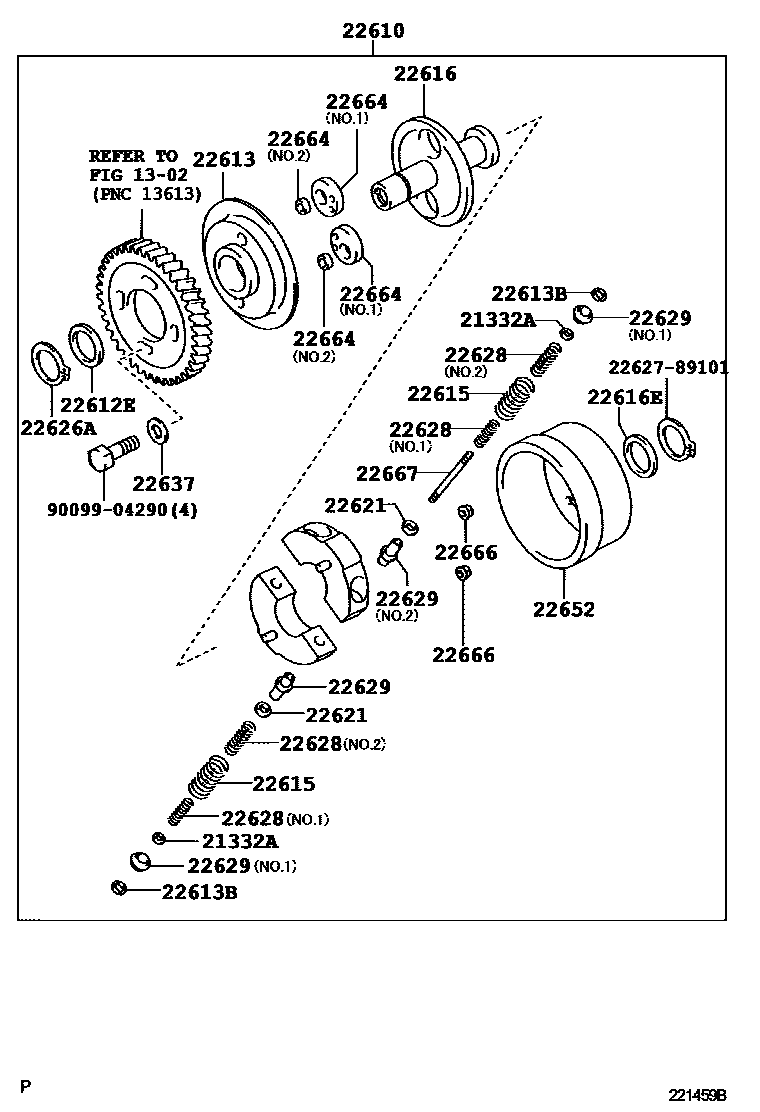

Parts diagram
1302
21332AWASHER(FOR AUTOMATIC TIMER)
main21332-89112×4i200802-200812
T=0.5
main21332-89113×4i200802-200812
T=0.7
main21332-89114×4i200802-200812
T=0.9
22610TIMER ASSY, AUTOMATIC
main22610-78281i200308
subS2251-03160
main22610-78410i200807-201106
W(HIGH ALTITUDE COMPENSATOR)
subS2251-03230
main22610-78450i200610-201106
subS2251-03240
main22610-89105i200212-200610
subS2251-03070
main22610-89106i200212-200802
mainS225103080i200212-200610
22612EWASHER, SPECIAL
main21332-89101×2i200308
T=1.05
main21332-89102×2i200802-200812
T=1.15
main21332-89103×2i200308
T=1.25
main21332-89104×2i200802-200812
T=1.35
main21332-89105×2i200308
T=1.45
main21332-89106×2i200308-200802
T=0.55
main21332-89107×2i200308-200802
T=0.65
main21332-89108×2i200802-200812
T=0.75
main21332-89109×2i200802-200812
T=0.85
main90099-01566×2i200802-200812
T=0.5
main90099-01567×2i200802-200812
T=1.0
main90099-01568×2i200802-200812
T=1.1
main90099-01569×2i200308
T=1.2
main90099-01570×2i200308
T=1.3
main90099-01571×2i200308-200802
T=1.4
22613FLANGE, TIMER DRIVING
main22613-89104i200802-200812
subS2251-32730
mainS225132420i200212-200610
NO.1
mainS225132670i200212-200610
NO.2
22613BRETAINER, TIMER SPRING SEAT
main90099-07133×4i200308-200802
mainS225181110×4i200212-200610
22615SPRING, TIMER
main22615-89102×4i200308-200802
mainS225157160×4i200212-200610
22616HUB, TIMER
main22616-89101i200308-200802
subS2251-62120
mainS225162070i200212-200610
22616EWASHER, PLATE(FOR TIMER HUB)
main21332-89110×2i200802-200812
T=0.95
main21332-89111×2i200308
T=1.05
main90099-01586×2i200308
T=0.5
main90099-01587×2i200308
T=0.6
main90099-01588×2i200802-200812
T=0.7
main90099-01589×2i200308-200802
T=0.8
main90099-01590×2i200308
T=0.9
main90099-01591×2i200308
T=1.0
mainS228671500×2i200212-200610
T=1.0
sub90201-08106
22621WASHER, TIMER SPRING ADJUST
main90099-01592×8i200308
T=0.5
main90099-01593×8i200308
T=0.6
main90099-01594×8i200308
T=0.7
main90099-01595×8i200308-200802
T=0.8
main90099-01596×8i200308
T=0.9
main90099-01597×8i200308
T=1.0
mainS228855870×4i200212-200610
T=0.5
sub90099-01572
mainS228855880×4i200212-200610
T=0.6
sub90099-01573
mainS228855890×4i200212-200610
T=0.7
sub90099-01574
mainS228857340×4i200212-200610
T=0.8
mainS228857350×4i200212-200610
T=0.9
mainS228857830×4i200212-200610
T=1.0
mainS228857840×4i200212-200610
T=1.1
mainS228857850×4i200212-200610
T=1.2
mainS228857860×4i200212-200610
T=1.3
mainS228857880×4i200212-200610
T=1.5
mainS228857890×4i200212-200610
T=1.4
22626ARING, CLAMP(FOR DRIVE GEAR)
main90096-90019i200308
22628SPRING, TIMER SUB
main22615-89104×4i200308
NO.1
main22628-78281×4i200308
NO.2
subS2251-57230
mainS225157170×4i200212-200610
22629SEAT, SPRING(FOR TIMER SPRING)
main21319-89101×2i200308
NO.2
subS2251-71930
main21319-89102×4i200802-200812
NO.1
subS2251-71940
mainS225171581×4i200212-200610
NO.1
mainS225171600×4i200212-200610
NO.2
22637WASHER, COUPLING SET BOLT
main22637-67010×4i200308-200802
22652COVER SUB-ASSY, TIMER
main22652-89102i200308
mainS225011210i200212-200610
22664CAM, TIMER
main22664-89103×2i200802-200812
NO.1
subS2254-51480
main22664-89104×2i200802-200812
NO.2
subS2254-51490
mainS225451320×2i200212-200610
NO.2
mainS225451330×2i200212-200610
NO.1
22666ROLLER, TIMER
main22666-89101×2i200308
mainS225221090×2i200212-200610
22667SLEEVE
main22667-89107×2i200308-200802
mainS225171590×2i200212-200610
2262789101
main22627-89101
9009904290
main90099-04290
