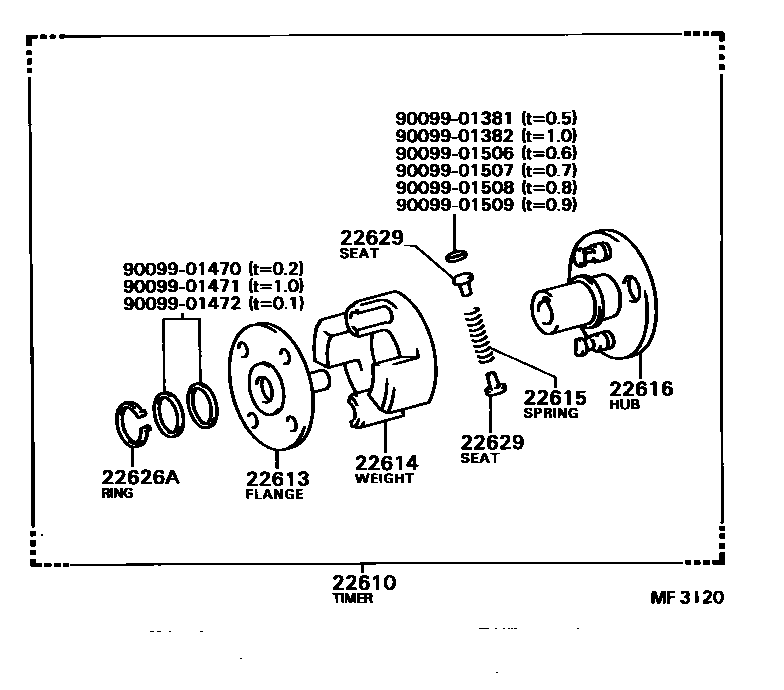

Toyota DYNA — AUTOMATIC TIMER

22610TIMER ASSY, AUTOMATIC

main22610-78030i1W..WU9#198409-198708

22613FLANGE, TIMER DRIVING

main22613-78030i1W..WU9#198409-198708

22614WEIGHT, TIMER

main22614-78030×2i1W..WU9#198409-198708

22615SPRING, TIMER

main22615-78030×2i1W..WU9#198409-198708

22616HUB, TIMER

main22616-78030i1W..WU9#198409-198708

22626ARING, CLAMP(FOR DRIVE GEAR)

main90096-90021i1W..WU9#198409-198708

22629SEAT, SPRING(FOR TIMER SPRING)

main22629-78030×4i1W..WU9#198409-198708

9009901381

main90099-01381

9009901382

main90099-01382

9009901470

main90099-01470

9009901471

main90099-01471

9009901472

main90099-01472

9009901506

main90099-01506

9009901507

main90099-01507

9009901508

main90099-01508

9009901509

main90099-01509

16 parts on this diagram · 1 diagram in section
