Toyota DYNA — AUTOMATIC TIMER

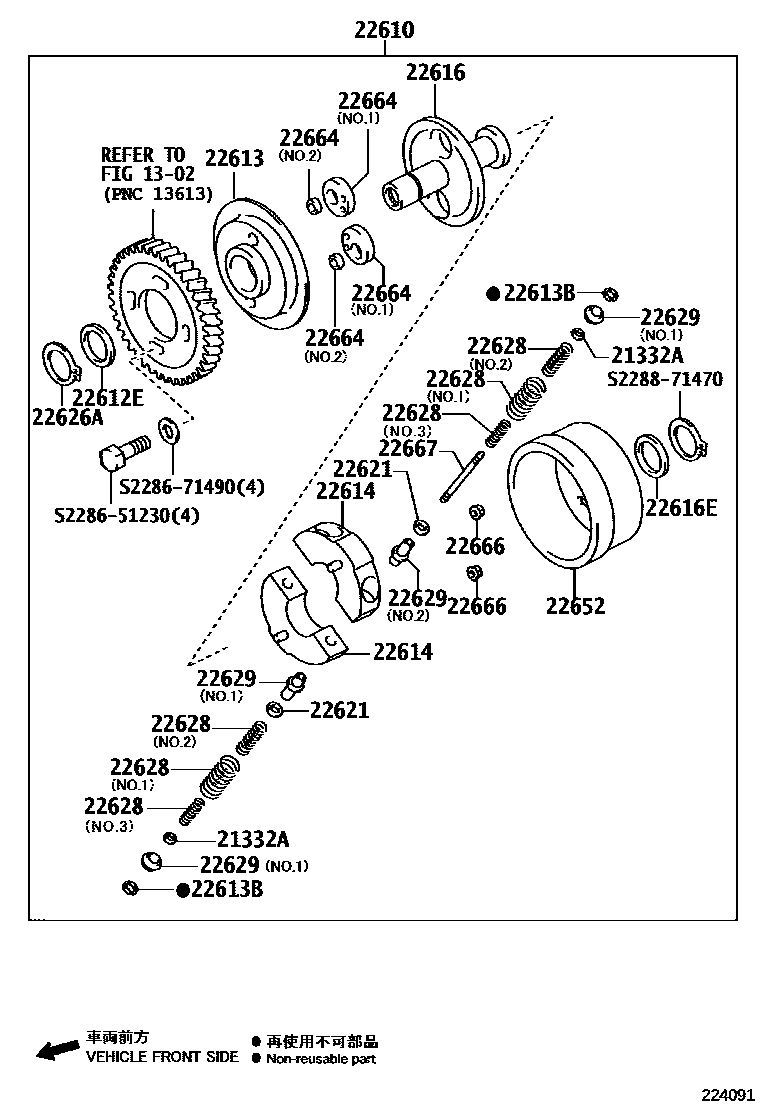

Parts diagram
1302
21332AWASHER(FOR AUTOMATIC TIMER)
mainS228772690i201107-202005
T=0.50
mainS228772690i201107-202005
HIGH ALTITUDE COMPENSATOR-WITH,T=0.5
mainS228772700i201107-202005
T=0.7
mainS228772710i201107-202005
T=0.9
22610TIMER ASSY, AUTOMATIC
mainS225103070i201107-202005
mainS225103230i201107-202005
mainS225103240i201107-202005
22612EWASHER, SPECIAL
mainS228772070i201107-202005
T=0.5
mainS228772080i201107-202005
T=1.0
mainS228772090i201107-202005
T=1.1
mainS228772100i201107-202005
T=1.2
mainS228772110i201107-202005
T=1.3
mainS228772120i201107-202005
T=1.4
mainS228772520i201107-202005
T=1.05
mainS228772530i201107-202005
T=1.15
mainS228772540i201107-202005
T=1.25
mainS228772550i201107-202005
T=1.35
mainS228772560i201107-202005
T=1.45
22613FLANGE, TIMER DRIVING
mainS225132730i201107-202005
mainS225132740i201107-202005
NO.2
mainS225191090i201107-202005
NO.1
22613BRETAINER, TIMER SPRING SEAT
mainS225181110i201107-202005
sub90099-07133
22614WEIGHT, TIMER
mainS225144220i201107-202005
mainS225144320i201107-202005
mainS225144370i201107-202005
22616HUB, TIMER
mainS225162080i201107-202005
mainS225162120i201107-202005
22616EWASHER, PLATE(FOR TIMER HUB)
mainS228772570i201107-202005
T=0.5
mainS228772580i201107-202005
T=0.6
mainS228772590i201107-202005
T=0.7
mainS228772600i201107-202005
T=0.8
mainS228772610i201107-202005
T=0.9
mainS228772620i201107-202005
T=1.0
mainS228772630i201107-202005
T=0.55
mainS228772640i201107-202005
T=0.65
mainS228772650i201107-202005
T=0.75
mainS228772660i201107-202005
T=0.85
mainS228772670i201107-202005
T=0.95
mainS228772680i201107-202005
T=1.05
22621WASHER, TIMER SPRING ADJUST
mainS228855870i201107-202005
T=0.5
sub90099-01572
mainS228855880i201107-202005
T=0.6
sub90099-01573
mainS228855890i201107-202005
T=0.7
sub90099-01574
mainS228857340i201107-202005
T=0.8
mainS228857350i201107-202005
T=0.9
mainS228857830i201107-202005
T=1.0
mainS228857840i201107-202005
T=1.1
mainS228857850i201107-202005
T=1.2
mainS228857860i201107-202005
T=1.3
mainS228857880i201107-202005
T=1.5
mainS228857890i201107-202005
T=1.4
mainS228858940i201107-202005
T=0.5
mainS228858950i201107-202005
T=0.6
mainS228858960i201107-202005
T=0.7
mainS228858970i201107-202005
T=0.8
mainS228858980i201107-202005
T=0.9
mainS228858990i201107-202005
T=1.0
22626ARING, CLAMP(FOR DRIVE GEAR)
mainS228871320i201107-202005
22628SPRING, TIMER SUB
mainS225157130i201107-202005
NO.1
mainS225157140i201107-202005
NO.2
mainS225157150i201107-202005
NO.3
mainS225157300i201107-202005
mainS225157310i201107-202005
22629SEAT, SPRING(FOR TIMER SPRING)
mainS225171510i201107-202005
NO.1
mainS225171910i201107-202005
NO.2
mainS225171930i201107-202005
NO.2
mainS225171940i201107-202005
NO.1
22652COVER SUB-ASSY, TIMER
mainS225011380i201107-202005
mainS225122040i201107-202005
22664CAM, TIMER
mainS225451430i201107-202005
NO.1
mainS225451440i201107-202005
NO.2
mainS225451480i201107-202005
NO.1
mainS225451490i201107-202005
NO.2
22666ROLLER, TIMER
mainS225221100i201107-202005
mainS225221110i201107-202005
22667SLEEVE
mainS225171400i201107-202005
mainS225171920i201107-202005
S228651230
mainS2286-51230
S228671490
mainS2286-71490
S228871470
mainS2288-71470

20 parts on this diagram · 2 diagrams in section
